BFP9.9 DK2 XHSA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1700001 - BABJ-9999999) WATER PUMP + VERTICAL SHAFT (UL SIZE) Parts Diagram

Outboard Engine, Made in Japan

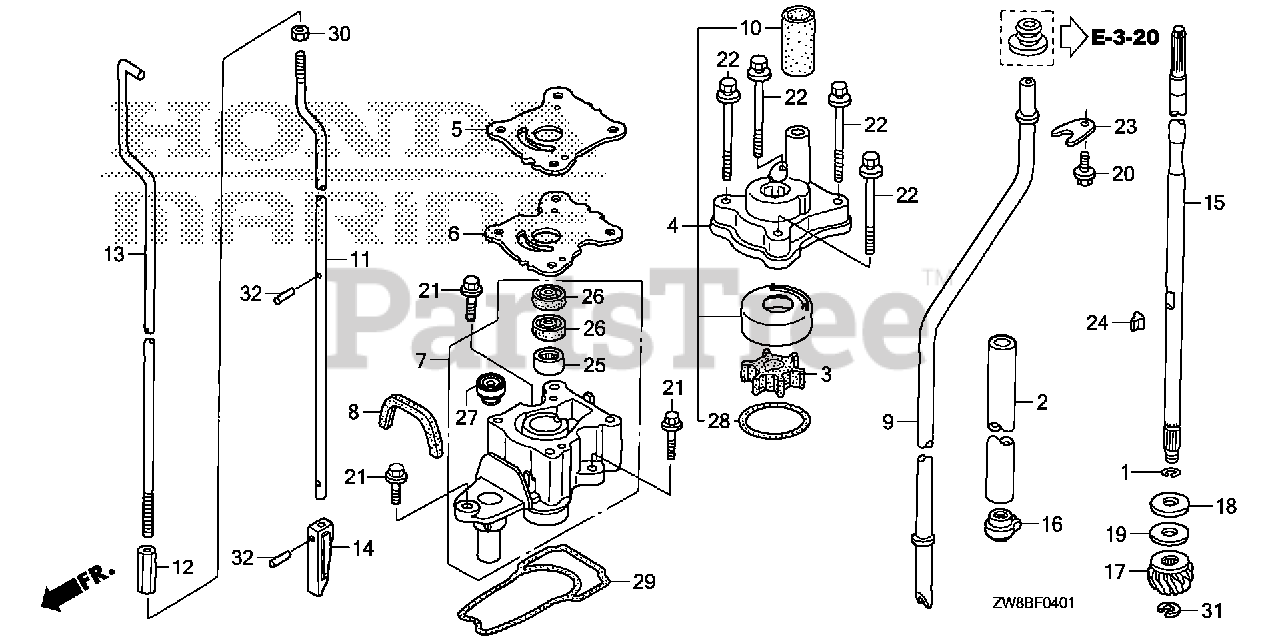

WATER PUMP + VERTICAL SHAFT (UL SIZE) Parts Diagram

  • Title

1

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

2

Honda 15332-ZW9-A30

GUIDE, OIL (UL)

$10.99

$

Usually ships in 3-6 days

0

3

Honda 19210-ZW9-A32

SEE PART DETAILS - PRI; IMPELLER, PUMP (UL)

$20.99

$

Usually ships in 3-6 days

0

4

Honda 19215-ZW9-010

SEE PART DETAILS - SUP; HOUSING ASSY., IMPELLER
(Superseded to 19215-ZW9-020)

Note: Use up to Frame SN 1600216.

$62.99

$

Usually ships in 3-6 days

0

4

Honda 19215-ZW9-020

SEE PART DETAILS - PRI; HOUSING ASSY., IMPELLER

$62.99

$

Usually ships in 3-6 days

0

5

Honda 19231-ZW9-000

COVER, IMPELLER

$10.99

$

Usually ships in 3-6 days

0

6

Honda 19232-ZW9-000

GASKET, IMPELLER

$2.99

$

Usually ships in 3-6 days

0

7

Honda 19240-ZY1-C20

SEE PART DETAILS - PRI; HOUSING, WATER PUMP (UL)

$156.99

$

Usually ships in 3-6 days

0

8

Honda 19243-ZW9-000

GROMMET, WATER PUMP HOUSING

Note: Use up to Frame SN 1603467.

$8.49

$

Usually ships in 3-6 days

0

9

Honda 19251-ZW9-A30

TUBE, WATER (UL)

$55.99

$

Usually ships in 3-6 days

0

10

Honda 19253-ZW9-000

RING, WATER TUBE SEAL

$4.99

$

Usually ships in 3-6 days

0

11

Honda 24311-ZW9-A30

ROD B, SHIFT (UL)
(Superseded to 24311-ZY1-C20)

Note: Use up to Frame SN 1603478.

$35.99

$

Usually ships in 3-6 days

0

11

Honda 24311-ZY1-C20

ROD B, SHIFT (UL)

Note: Use from Frame SN 1603479.

$35.99

$

Usually ships in 3-6 days

0

12

Honda 24312-ZV7-000

JOINT, SHIFT ROD

$18.99

$

Usually ships in 3-6 days

0

13

Honda 24320-ZW9-630

ROD A, SHIFT (L)

$32.99

$

Usually ships in 3-6 days

0

14

Honda 24341-ZW9-300

SEE PART DETAILS - SUP; ROD, PUSH
(Superseded to 24341-ZY1-C00)

Note: Use up to Frame SN 1603478.

$25.99

$

Usually ships in 3-6 days

0

14

Honda 24341-ZY1-C00

SEE PART DETAILS - PRI; ROD, PUSH

$25.99

$

Usually ships in 3-6 days

0

15

Honda 41112-ZW9-A30

SHAFT, VERTICAL (UL)
(Superseded to 41112-ZW9-C20)

$426.99

$

Usually ships in 3-6 days

0

16

Honda 41116-ZW9-A30

SLINGER, OIL (UL)

$14.99

$

Usually ships in 3-6 days

0

17

Honda 41131-ZW9-000

GEAR, PINION

$63.99

$

Usually ships in 3-6 days

0

18

Honda 41135-ZW9-000

WASHER A, THRUST BEARING

$9.49

$

Usually ships in 3-6 days

0

19

Honda 41136-ZW9-000

WASHER B, THRUST BEARING

$9.49

$

Usually ships in 3-6 days

0

19

Honda 41137-ZW9-000

WASHER C, THRUST BEARING

$9.49

$

Usually ships in 3-6 days

0

20

Honda 90102-ZW9-000

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90122-ZW9-000

BOLT-WASHER (6X90)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 90515-ZW9-000

PLATE, WATER TUBE SETTING

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90752-ZW9-A30

KEY, WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

25

Honda 91052-ZV4-003

BEARING, NEEDLE (15X21X12)

$14.99

$

Usually ships in 3-6 days

0

26

Honda 91251-ZW9-003

SEAL, WATER (15X24X5)

$6.49

$

Usually ships in 3-6 days

0

27

Honda 91253-ZW9-003

SEAL, WATER (6MM)

$11.99

$

Usually ships in 3-6 days

0

28

Honda 91301-ZG3-000

O-RING (42.2X2.4)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 91351-ZW9-000

O-RING, WATER PUMP HOUSING

$9.49

$

Usually ships in 3-6 days

0

30

Honda 94001-06490-0S

NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0

31

Honda 94540-08018

E-RING (8MM)

$5.99

$

Usually ships in 3-6 days

0

32

Honda 96220-25118

ROLLER (2.5X11.8)

$0.99

$

Usually ships in 3-6 days

0
