BG 1418B - Ferris Front Mount Mower, Gear Drive, 14hp Briggs & Stratton (SN: G1897 & Above) Instrument & Control Panel Group Parts Diagram

Front Mount Mower, Gear Drive, 14hp Briggs & Stratton

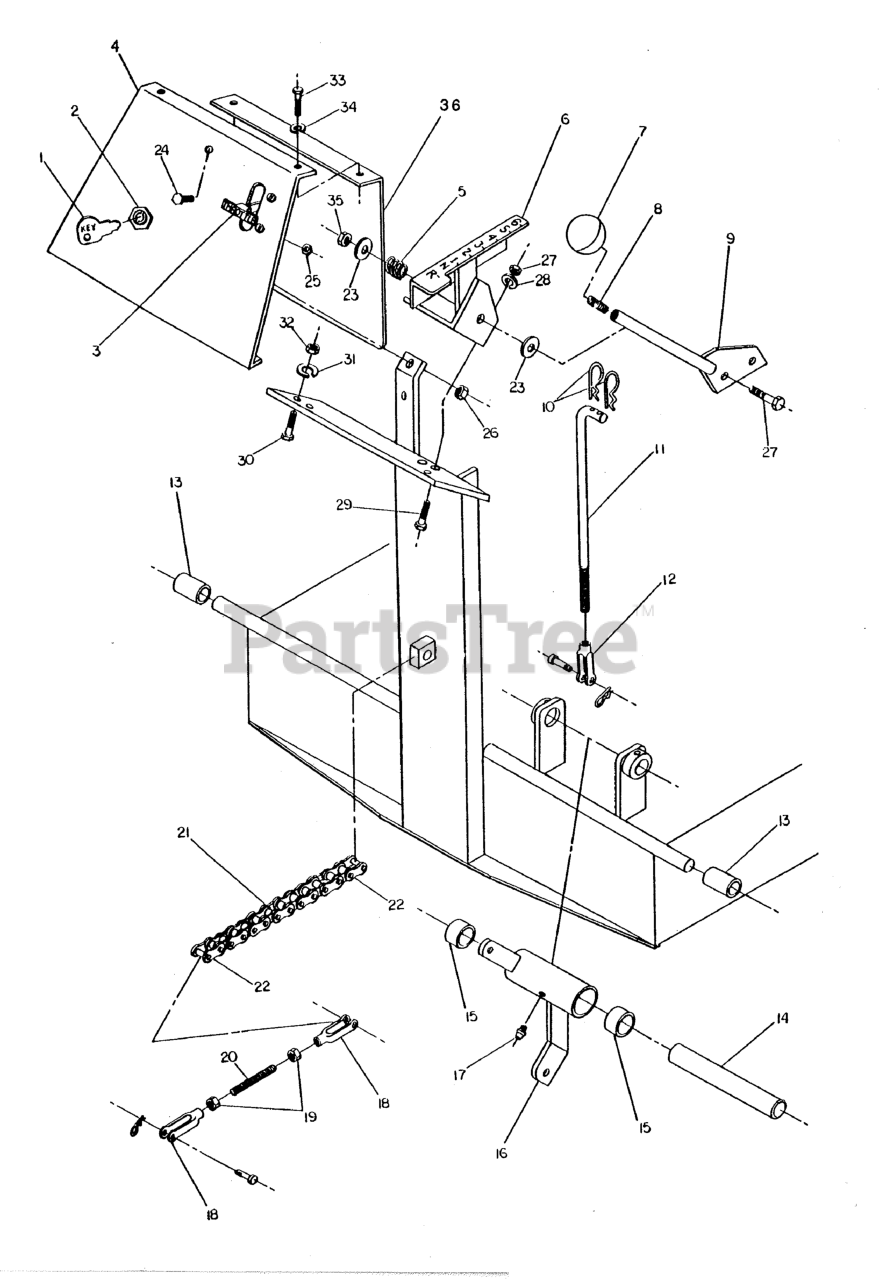

Instrument & Control Panel Group Parts Diagram

  • Title

1

Ferris 5020878

Ignition Key
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 12

0

2

Ferris 5020836

SWITCH, Ignition

$54.99

$

Usually ships in 2-12 days

0

3

Ferris 5021151

CABLE, Throttle, 31"

$55.99

$

Usually ships in 2-12 days

0

4

Ferris 42408

Control Panel

$

$

Currently unavailable

5

Ferris 5020808

SPRING, Compression

$

$

Currently unavailable

6

Ferris 42064

Shifter Guide

$

$

Currently unavailable

7

Ferris 5010551

Black Knob

$

$

Currently unavailable

8

Ferris 5025117

STUD, 5/16-18 x 1"

$2.49

$

Usually ships in 2-12 days

0

9

Ferris 42051

Shifter Handle
(Superseded to 7042051YP)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5042344

Shifter Adjustment Rod

$

$

Currently unavailable

12

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

13

5/8 Heater Hose 1-1/2"

$

$

Not available

14

Ferris 5050501X22

3/4" Diameter Shafting 6-1/4"

$

$

Currently unavailable

15

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 42074

Transmission Bell Crank
(Superseded to 7042074YP)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

19

5/16 Hex Nut

$

$

Not available

20

Ferris 5025118X24

STUD, 5/16-24 x 3"

$

$

Currently unavailable

21

Ferris 5021196X9

Plated #60 Chain

$

$

Currently unavailable

22

Ferris 5021195

Plated #60 Connector

$

$

Currently unavailable

23

3/8 Flat Washer

$

$

Not available

24

5/16-18 x 1" Hex Head Cap Screw

$

$

Not available

25

10/32 Nut

$

$

Not available

26

5/16-18 Serrated Flange Nut

$

$

Not available

27

1/4-20 Nut

$

$

Not available

28

1/4 Lock Washer

$

$

Not available

29

1/4-20 x 1 Hex Head Cap Screw

$

$

Not available

30

1/4-20 x 3/4 Hex Head Cap Screw

$

$

Not available

31

1/4 Lock Washer

$

$

Not available

32

1/4 Nut

$

$

Not available

33

1/4-20 x 5/8 Hex Head Cap Screw

$

$

Not available

34

1/4 Lock Washer

$

$

Not available

35

3/8-16 Lock Nut

$

$

Not available

36

Ferris 42439

Control Panel Cover

$

$

Currently unavailable
