Big Country 640 (37AS640B100) - Cub Cadet 6x4 Utility Vehicle (SN: 1D302B & Before) Fuel System Parts Diagram

6x4 Utility Vehicle

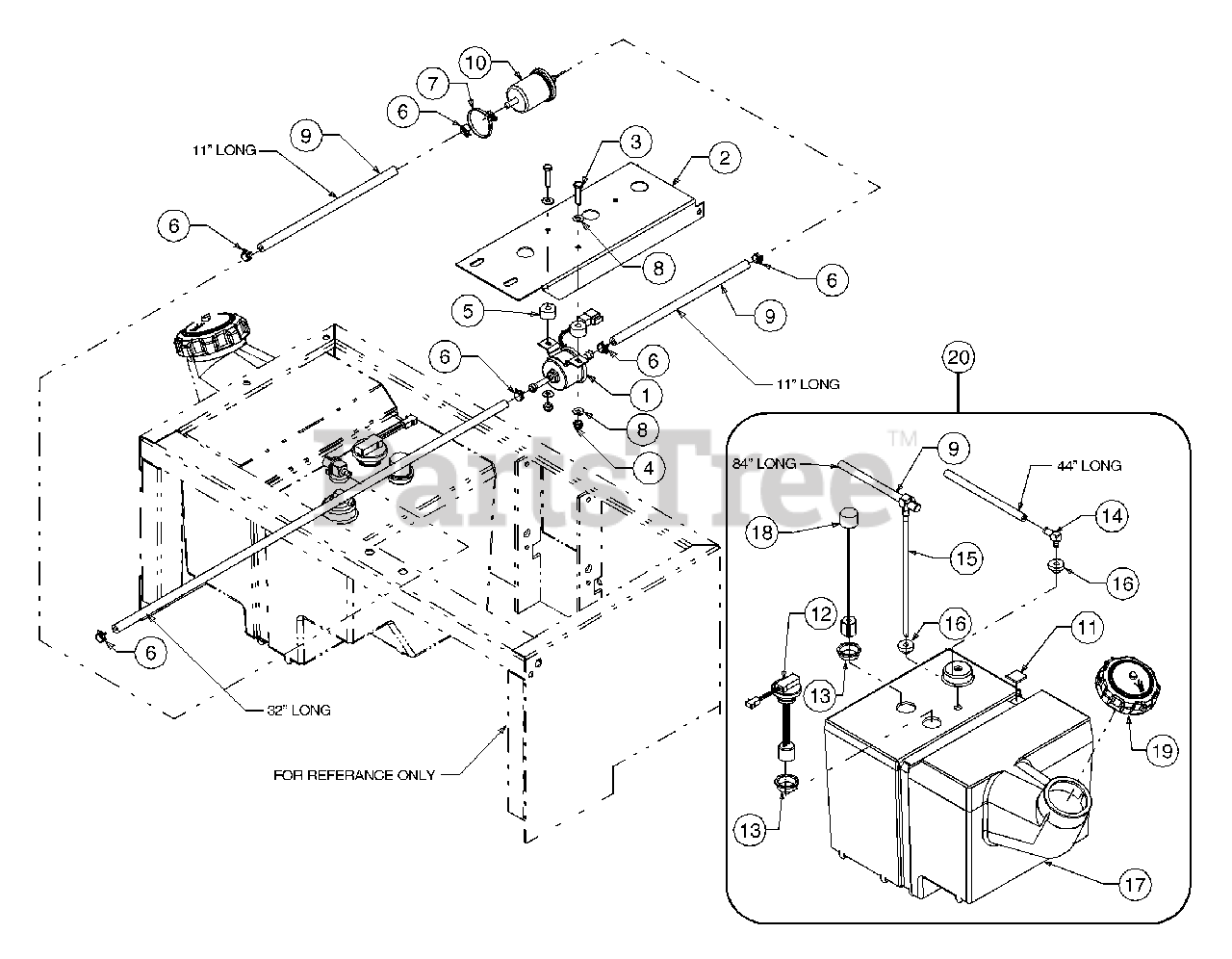

Fuel System Parts Diagram

  • Title

1

Cub Cadet KM-49040-2065

Pump Assembly, Fuel

$182.99

$

In Stock, only 2 left!

0

2

Cub Cadet 707-0381

Support Plate, Console

Variations

Cub Cadet 707-0381-0637

PLATE-CONSOLE SUPT(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0106

Hex Screw, 1/4-20 x 1.25, Gr5

$3.99

$

In Stock, only 1 left!

0

4

Cub Cadet 712-0324

Nut, Nylon Hex Lock, 1/4-20, Gr8

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 722-0160

Bushing, .96 OD x .50

$

$

Not available

6

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 726-0470

Cable Tie, 19 x 8.39

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-3020

Washer, Flat, .271 x .630 x .065

$6.49

$

In Stock, Qty 9

0

9

Cub Cadet 751-0535

Hose, Fuel Line

$

$

Currently unavailable

10

Cub Cadet KB-12581-43012

Filter, Fuel

$44.99

$

Usually ships in 3-6 days

0

11

Gasket, Fuel Tank, 11.5

$

$

Not available

12

Cub Cadet 725-2068

Switch, Fuel Level Gauge

$

$

Not available

13

Cub Cadet 735-0699

Grommet, 1.58 OD x 1.21 ID x .5

$15.99

$

In Stock, Qty 20+

0

14

Cub Cadet 737-04009

Fitting, Elbow, .190 ID

$

$

Not available

15

Cub Cadet 737-04010

Valve, Fuel Tank

$

$

Not available

16

Cub Cadet 741-04006

Grommet, 1.06 OD x .362
(Superseded to 935-0149)

$7.99

$

In Stock, Qty 20+

0

17

Cub Cadet 751-0850

Tank, Fuel
(Superseded to 631-0223)

$

$

Not available

18

Cub Cadet 751-0853

Gauge, Fuel Tank

$

$

Not available

19

Cub Cadet 751-3124B

Cap, Fuel, 3.5
(Superseded to 951-3124E)

$33.99

$

In Stock, Qty 20+

0

20

~N/A

Tank Assembly, Fuel

$

$

Not available
