Big Country 640 (37AS640C100) - Cub Cadet 6x4 Utility Vehicle (SN: 1D302B & Before) Shifter Assembly Parts Diagram

6x4 Utility Vehicle

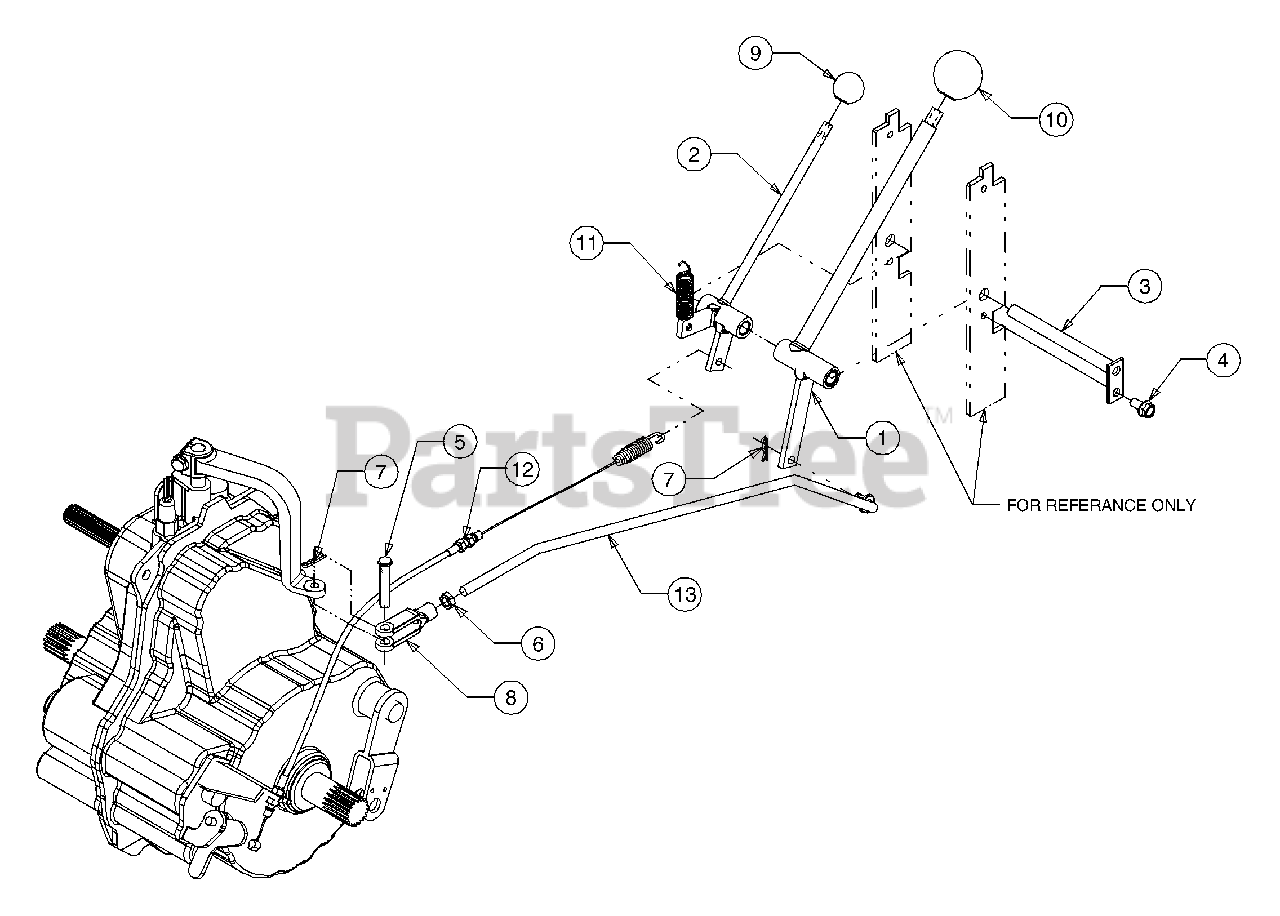

Shifter Assembly Parts Diagram

  • Title

1

Cub Cadet 647-0069

Lever Assembly, Transmission
(Superseded to 647-0069B)

$

$

Not available

2

Cub Cadet 647-0071

Shifter Assembly, Differential Lock

$

$

Not available

3

Cub Cadet 647-04000

Pin Assembly, Transmission

$

$

Not available

4

Cub Cadet 710-0759

Hex Screw, Flange, 5/16-18 x .625, Gr5

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-04017

Pin, Clevis, .375 x 2.0

$

$

Not available

6

Cub Cadet 712-3001

Nut, Jam, 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Cotter, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 719-3013

Clevis, Adjustment

$28.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 720-04002

Knob, Ball

$

$

Not available

10

Cub Cadet 720-0434

Knob, Ball

$

$

Not available

11

Cub Cadet 732-1187

Spring, Extension, .637 x 2.972

$

$

Not available

12

Cub Cadet 746-04004

Control Cable, Differential Lock

$75.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 747-04010

Shifter Rod, Transmission
(Superseded to 747-04010A)

$36.99

$

Usually ships in 3-6 days

0
