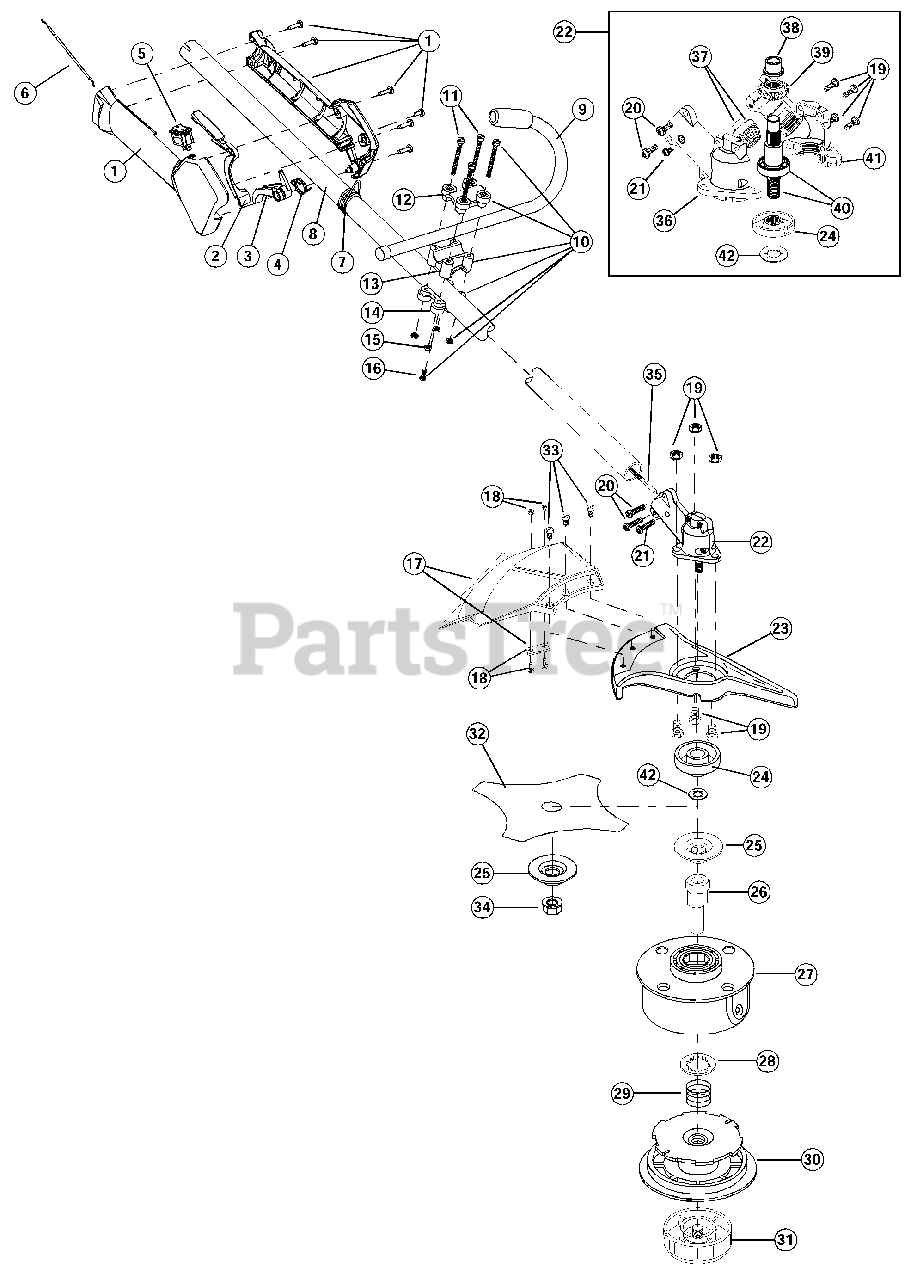

BL 250 (41BD250G163) - Bolens String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-00040

Throttle Housing and Trigger Assembly
(Superseded to 753-05321)

Note: (includes 2-4)

$

$

Not available

2

MTD 791-00041

Throttle Trigger Lock-Out

$

$

Not available

3

MTD 791-00042

Throttle Trigger
(Superseded to 753-06754)

$6.99

$

In Stock, only 1 left!

0

4

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

5

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

6

MTD 791-182877

Throttle Cable Assembly

$15.99

$

Usually ships in 3-6 days

0

7

MTD 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

8

MTD 791-147486

Drive Shaft Housing Assembly

$100.99

$

Usually ships in 3-6 days

0

9

MTD 791-180286

J-Handle Assembly

$

$

Not available

10

MTD 791-683295

Handle Bracket Assembly

Note: (includes 11-16)

$42.99

$

Usually ships in 3-6 days

0

11

MTD 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

12

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

13

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

14

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

15

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

16

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

17

MTD 791-683299

Shield and Blade Assembly

Note: (includes 18)

$

$

Not available

18

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

19

MTD 791-182200

Shield Mount Screw Assembly

$6.49

$

In Stock, only 2 left!

0

20

MTD 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 13

0

21

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

22

MTD 791-182193

Gearbox Assembly

Note: (includes 20, 21, 24 & 25)

$92.99

$

In Stock, only 2 left!

0

23

MTD 791-147492

Blade Shield

$118.99

$

Usually ships in 3-6 days

0

24

MTD 791-182196

Blade Driver

$20.99

$

In Stock, only 3 left!

0

25

MTD 791-147490

Retaining Washer

$10.99

$

In Stock, Qty 7

0

26

MTD 791-612483

Spool Shaft

$51.99

$

In Stock, only 1 left!

0

27

MTD 791-683301

Outer Spool and Eyelet Assembly

$45.99

$

In Stock, Qty 9

0

28

MTD 791-612026

Retainer
(Superseded to 1772)

$6.49

$

In Stock, Qty 17

0

29

MTD 791-610636

Spring
(Superseded to 791-610636B)

$9.49

$

In Stock, Qty 20+

0

30

MTD 791-147495

Inner Reel

$24.99

$

In Stock, Qty 14

0

31

MTD 791-180814

Bump Head Knob Assembly
(Superseded to 791-180814B)

$19.99

$

In Stock, Qty 20+

0

32

MTD 791-145873

4-Tooth Blade
(Superseded to 791-145873B)

$42.99

$

In Stock, Qty 9

0

33

MTD 791-683304

Guard Mount Screws

$10.99

$

Usually ships in 3-6 days

0

34

MTD 791-181699

Nut
(Superseded to 712-04105)

$9.99

$

In Stock, only 3 left!

0

35

MTD 791-181817

Flexible Drive Shaft

$65.99

$

Usually ships in 3-6 days

0

36

MTD 791-182192

Right Housing

$

$

Not available

37

MTD 791-182194

Pinion Gear Assembly

$29.99

$

Usually ships in 3-6 days

0

38

MTD 791-182199

Output Shaft Bushing

$

$

Not available

39

MTD 791-182198

Output Shaft Gear

$

$

Not available

40

MTD 791-182197

Output Shaft Assembly

Note: (includes 38 & 39)

$

$

Not available

41

MTD 791-182191

Left Housing

$

$

Not available

42

MTD 753-04348

Palnut

$6.49

$

In Stock, only 1 left!

0

MTD 791-180014

Blade Retaining Kit

Note: (includes 25 & 34); Item not shown

$

$

Currently unavailable

MTD 791-613226

Locking Rod Tool

Note: Item not shown

$13.99

$

Usually ships in 3-6 days

0

MTD 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: Item not shown

$36.99

$

Usually ships in 3-6 days

0

MTD 791-147278B

Reel and Line Assembly
(Superseded to 791-147345B)

Note: Optional Accessory; Item not shown

$31.99

$

Usually ships in 3-6 days

0

MTD 791-147498

Bump Head Assembly

Note: (includes 26-31); Optional Accessory; Item not shown

$109.99

$

In Stock, only 2 left!
