24" Snow Thrower, 9.0 Gross TP

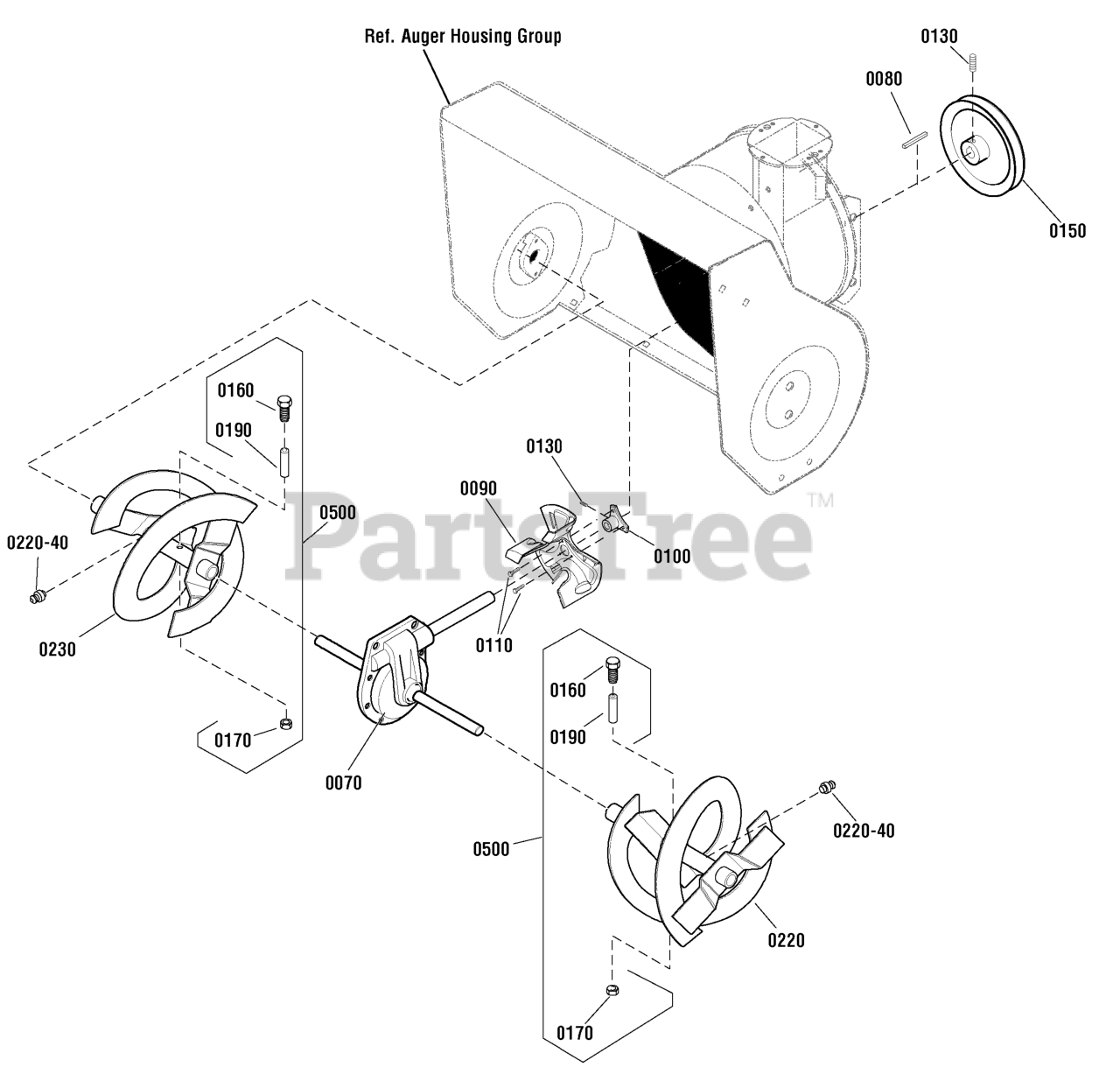

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1753384YP

GEAR CASE ASSEMBLY
(Superseded to 704363)

$457.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0090

Murray 1739094BMYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, only 1 left!

0

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 1 left!

0

0110

Murray 1924856SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Murray 1501211MA

PULLEY

$71.99

$

In Stock, only 1 left!

0

0160

Murray 703057

CAPSCREW, Hex Head, 1/4-20 x 1-3/4

$5.99

$

In Stock, Qty 20+

0

0170

Murray 703251

NUT, Hex Centerlock, 1/4-20

$4.99

$

In Stock, Qty 20+

0

0190

Murray 703058

SPACER, Sleeve

$7.49

$

In Stock, Qty 16

0

0220

Murray 1738299BJYP

AUGER, 24", LH

$100.99

$

Usually ships in 2-12 days

0

0230

Murray 1738300BJYP

AUGER, 24", RH

$100.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0500

Murray 1501216MA

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$4.99

$

In Stock, Qty 20+
