BP 40 LA - Shindaiwa Brush Cutter, Backpack Swivel Bracket Parts Diagram

Brush Cutter, Backpack

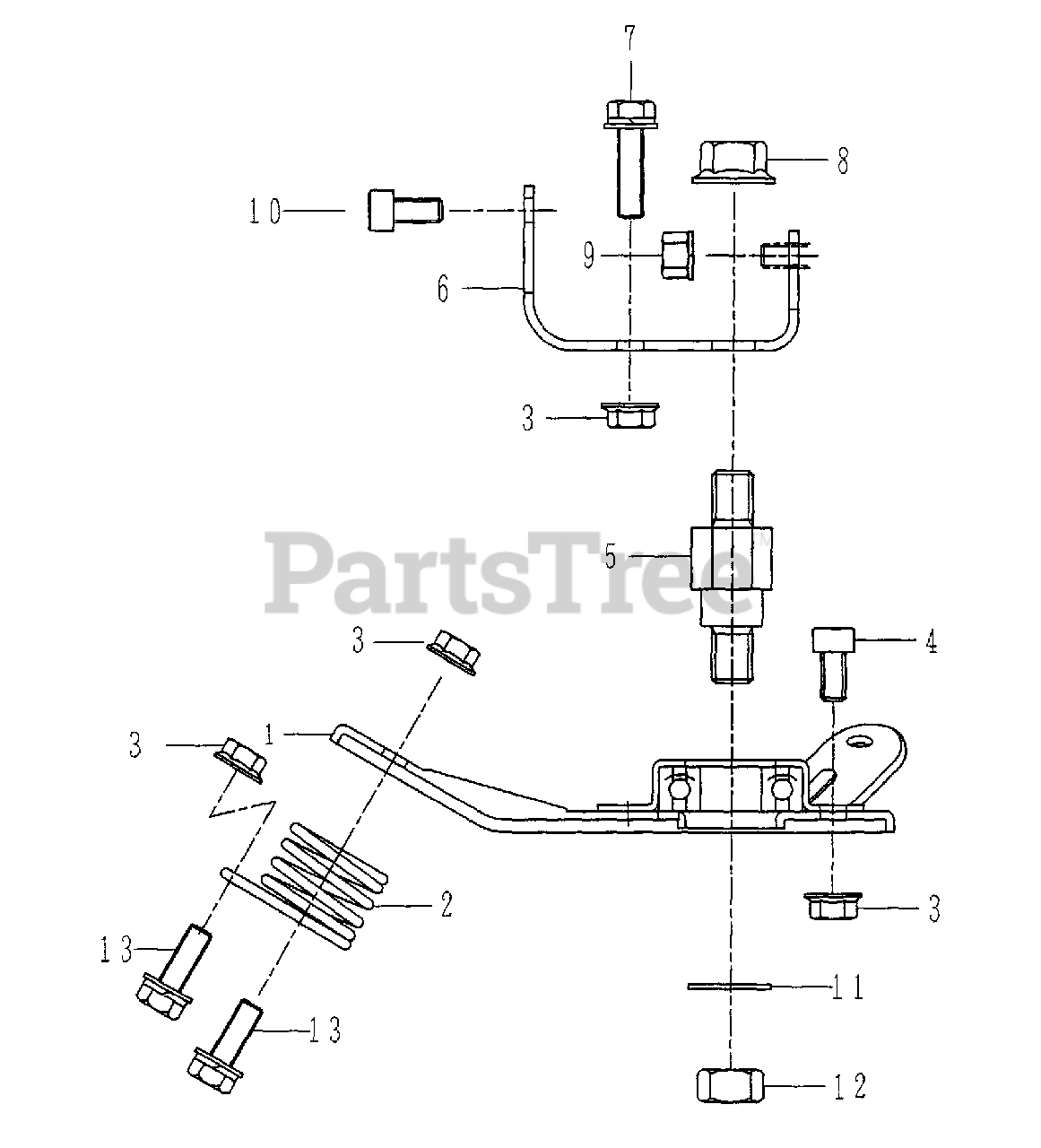

Swivel Bracket Parts Diagram

  • Title

1

Echo 3424-050A

BRACKET, SWIVEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 5315-010A

SPRING
(Superseded to Discontinued)

$

$

Not available

3

Echo 346D0600

NUT
(Superseded to Discontinued)

$

$

Not available

4

Echo 120S0612

BOLT
(Superseded to Discontinued)

$

$

Not available

5

Echo 4117-003A

SHAFT, MOUNTING
(Superseded to Discontinued)

$

$

Not available

6

Echo 3424-083A

BRACKET
(Superseded to Discontinued)

$

$

Not available

7

Echo 197D0625

BOLT
(Superseded to Discontinued)

$

$

Not available

8

Echo 346D1000

NUT - FLANGE
(Superseded to Discontinued)

$

$

Not available

9

Echo 11526-05112

NUT - 5 -- FLANGE
(Superseded to V263000340)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 11020-05120

SCREW - 5X12
(Superseded to 11022-05120)

$0.99

$

In Stock, Qty 20+

0

11

Echo 466L1000

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

12

Echo 314D1000

NUT
(Superseded to Discontinued)

$

$

Not available

13

Echo 197D0616

BOLT
(Superseded to Discontinued)

$

$

Not available
