BPW 3500 (1780-0) - Briggs & Stratton 3,500 PSI Pressure Washer Main Unit Parts Diagram

3,500 PSI Pressure Washer

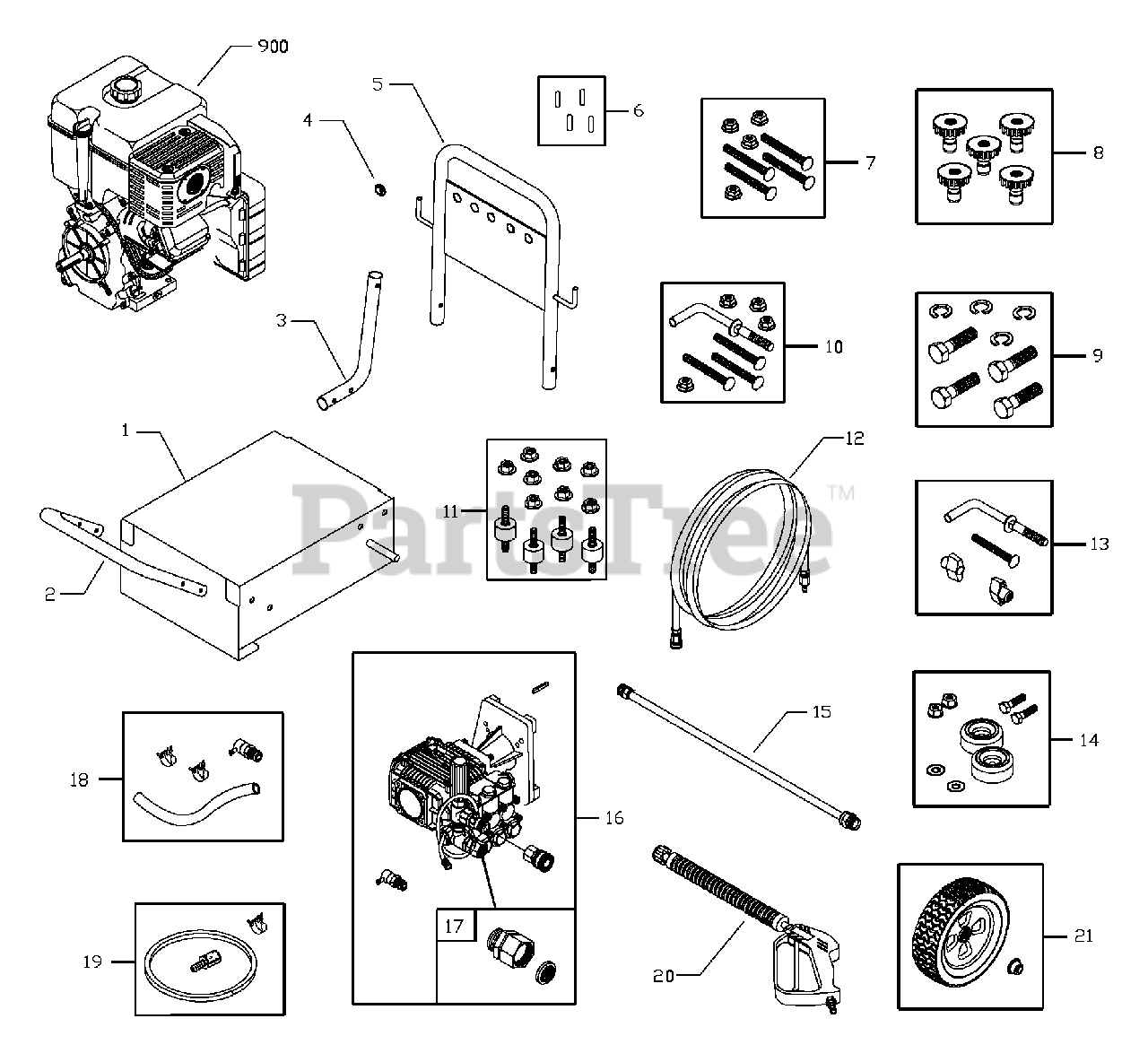

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A189641GS

BASE

$204.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton BB1982GS

BUMPER

$67.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton BB1981GS

HANDLE, Lower

$25.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B190293GS

HANDLE

$104.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192126GS

KIT, Vinyl Cap

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192129GS

KIT, Lower Handle Hardware

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B4847GS

KIT, Nozzles

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 191903A

Nozzle, QC, Red

$

$

Currently unavailable

--

Briggs & Stratton 191903B

Nozzle, QC, Yellow

$

$

Currently unavailable

--

Briggs & Stratton 191903C

Nozzle, QC, Green

$

$

Currently unavailable

--

Briggs & Stratton 191903D

Nozzle, QC, White

$

$

Currently unavailable

--

Briggs & Stratton 191903ZZ

Nozzle, QC, Black

$

$

Currently unavailable

9

Briggs & Stratton 192132GS

KIT, Pump Mounting Hardware

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 192130GS

KIT, Bumper Mounting Hrdwr

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192134GS

KIT, Engine Mounting Hrdwre

$29.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton B4805GS

HOSE
(Superseded to 205734GS)

$

$

Not available

13

Briggs & Stratton 187978GS

KIT, Upper Handle Hardware

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192553GS

KIT, Vibration Mount

$16.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 8

0

16

Briggs & Stratton 195110GS

ASSY, Pump

$

$

Not available

--

Briggs & Stratton 195016GS

Valve, Thermal Relief

$25.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 63281GS

Key
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 95458GS

Quick Connect
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192135GS

KIT, Garden Hose Inlet

$27.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 192136GS

KIT, Thermal Relief

$15.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 192168GS

KIT, Chemical Hose
(Superseded to 192796GS)

$16.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B1436BGS

GUN
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 192124GS

KIT, Wheel

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 190146GS

Pushnut

$9.99

$

In Stock, only 2 left!

0

900

-----

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

--

Briggs & Stratton 191806GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton MS6669

MANUAL, Engine
(Superseded to 279775WST)

Note: Not Illustrated

$8.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 8

0

--

Briggs & Stratton 6048

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: Not Illustrated

$18.99

$

In Stock, only 4 left!

0

--

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192015GS

FITTING, Hose

Note: Not Illustrated

$8.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192139GS

KIT, Decal, Srv

Note: Not Illustrated

$27.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessory

$12.99

$

In Stock, only 2 left!

0
