BS 135 WT (866024) - Briggs & Stratton Plate Compactor (2011) Main Unit (866024_866025) Parts Diagram

Plate Compactor

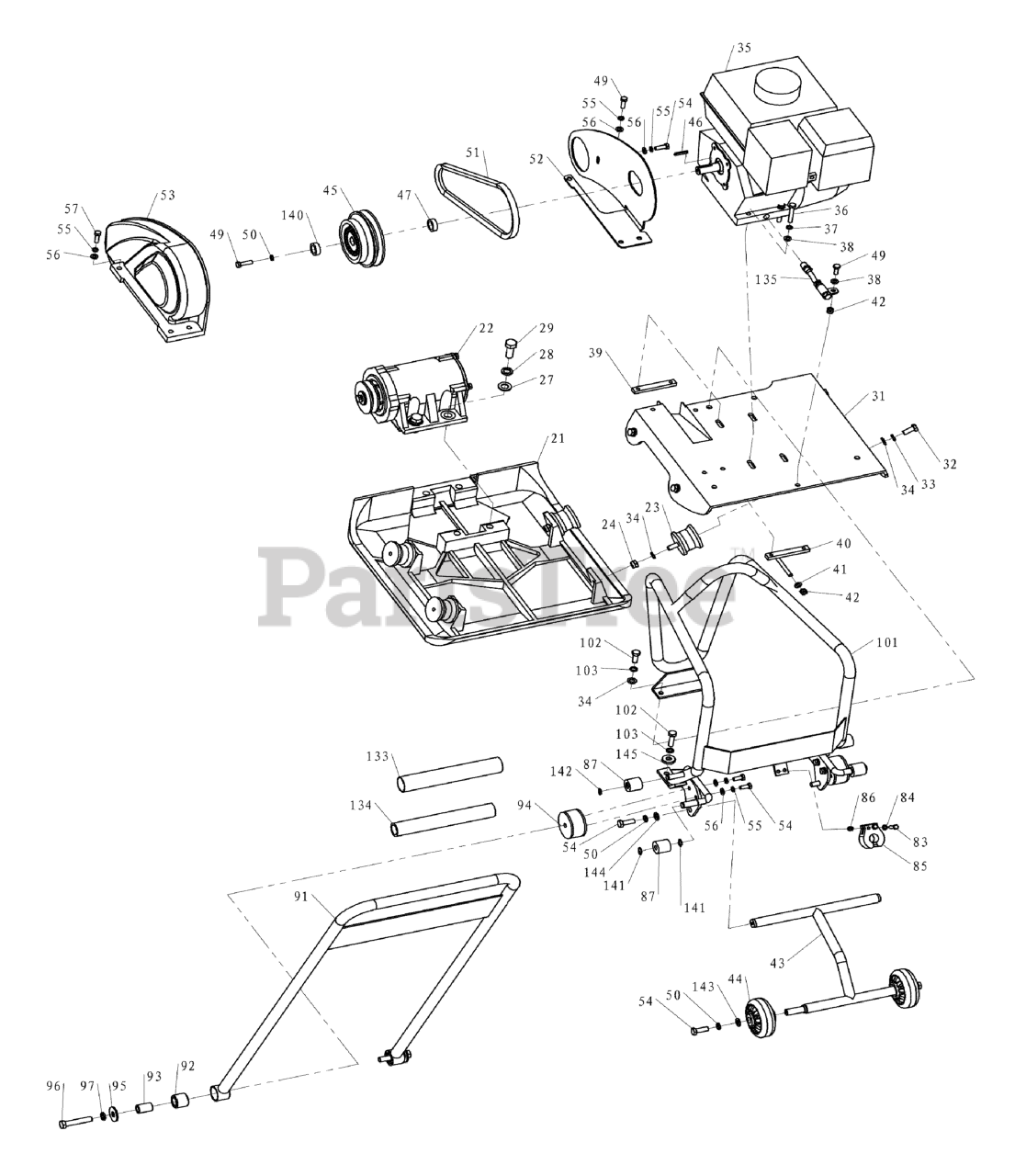

Main Unit (866024_866025) Parts Diagram

  • Title

21

Murray 700530

BASE PLATE

$

$

Currently unavailable

22

Murray 700531

VIBRATION BOX

$2.49

$

Usually ships in 3-10 days

0

23

Murray 700532

VIBRATION RUBBER

$

$

Currently unavailable

24

Murray 700595

NUT, Nylon, M10, GB170

$

$

Currently unavailable

27

Murray 700534

WASHER, 16

$

$

Currently unavailable

28

Murray 700535

WASHER, Spring, 16

$

$

Currently unavailable

29

Murray 700536

BOLT

$

$

Not available

31

Murray 700537

ENGINE BASE

$

$

Not available

32

Murray 700564

BOLT, M10 × 25, GB5783

$

$

Currently unavailable

33

Murray 700533

WASHER, Spring, 10, GB93

$

$

Currently unavailable

34

Murray 700594

WASHER, 10, GB95

$

$

Currently unavailable

35

Murray 700468

ENGINE, Briggs & Stratton

$

$

Currently unavailable

36

Murray 701479

BOLT, M8 x 40, GB5738

$

$

Currently unavailable

37

Murray 700578

WASHER, Spring, 8, GB93

$

$

Currently unavailable

38

Murray 700591

WASHER, 8, GB95

$

$

Currently unavailable

39

Murray 700539

CLAMP, Engine Nut

$

$

Currently unavailable

40

Murray 700540

CLAMP, Engine Nut

$

$

Currently unavailable

41

Murray 700591

WASHER 8

$

$

Currently unavailable

42

Murray 700541

NUT, Nylon

$

$

Currently unavailable

43

Murray 700542

FRAME, Road Wheel

$

$

Currently unavailable

44

Murray 700543

ROAD WHEEL

$

$

Currently unavailable

45

Murray 700544

CLUTCH ASSEMBLY

$

$

Currently unavailable

46

Murray 700469

KEY, 5 x 32

$

$

Currently unavailable

47

Murray 700545

BUSHING

$

$

Currently unavailable

49

Murray 700590

BOLT, M8 x 30, GB5738

$

$

Not available

50

Murray 700578

WASHER, Spring, 8, GB93

$

$

Currently unavailable

51

Murray 700546

V-BELT, XPA882

$

$

Currently unavailable

52

Murray 700547

INSIDE BELT COVER

$

$

Currently unavailable

53

Murray 700548

BELT COVER

$

$

Currently unavailable

54

Murray 700549

BOLT, M8 x 20, GB5783

$

$

Currently unavailable

55

Murray 700578

WASHER, Spring, 8, GB93

$

$

Currently unavailable

56

Murray 700591

WASHER, 8, GB95

$

$

Currently unavailable

57

Murray 700550

BOLT, M8 x 20, GB5783

$

$

Currently unavailable

83

Murray 700551

BOLT, M6 x 35

Note: (Optional)

$

$

Currently unavailable

84

Murray 700552

WASHER, 6

Note: (Optional)

$

$

Currently unavailable

85

Murray 700553

CLIP, Rubber

Note: (Optional)

$

$

Currently unavailable

86

Murray 700554

NUT, M6

Note: (Optional)

$

$

Currently unavailable

87

Murray 700555

COLLAR, Rubber

$

$

Currently unavailable

91

Murray 700556

HANDLE

$

$

Currently unavailable

92

Murray 700557

COLLAR

$

$

Currently unavailable

93

Murray 700558

RUBBER

$

$

Currently unavailable

94

Murray 700559

RUBBER MOUNT

$

$

Not available

95

Murray 700560

WASHER

$

$

Currently unavailable

96

Murray 700561

BOLT, M12 x 50, GB5780

$

$

Not available

97

Murray 700562

SPRING WASHER 12 - GB93

$

$

Currently unavailable

101

Murray 700563

GUARD HOOK

$

$

Not available

102

Murray 701973

BOLT, M10 × 35, GB5783

$

$

Currently unavailable

103

Murray 700533

WASHER, Spring, 10, GB93

$

$

Currently unavailable

133

Murray 700565

FOAM, Handle

$

$

Currently unavailable

134

Murray 700566

SHEATH, Handle

$

$

Currently unavailable

135

Murray 702136

DRAIN PIPE ASSEMBLY

$

$

Currently unavailable

140

Murray 700567

KEY, Bushing

$

$

Currently unavailable

141

Murray 701500

RING SHIELD,14

$

$

Currently unavailable

142

Murray 702062

RING SHIELD,12

$

$

Currently unavailable

143

Murray 701501

WASHER

$

$

Currently unavailable

144

Murray 701502

BUSHING

$

$

Currently unavailable

145

Murray 701972

WASHER, Large, 28.5 x 11 x 6

$

$

Currently unavailable

--

Murray 701532

SPARK PLUG SOCKET

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray 701523

WRENCH, Open End, 16-18

Note: (Not Illustrated)

$

$

Currently unavailable
