BSP 3200 (1773-0) - Briggs & Stratton 3,200 Watt Portable Generator Main Unit Parts Diagram

3,200 Watt Portable Generator

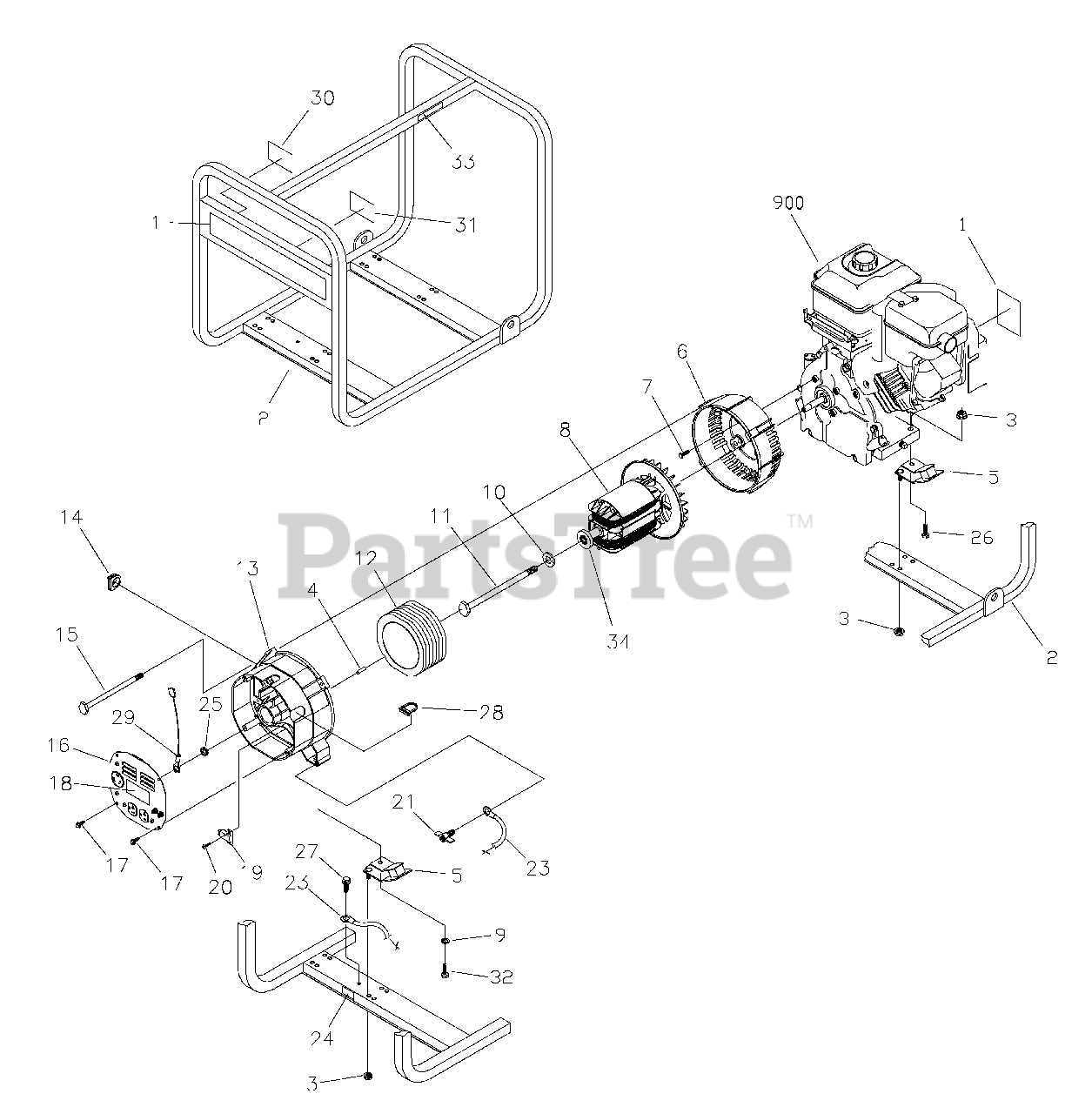

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 191403GS

Kit, Decal, Unit & Air Cover

$25.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton M190341GS

Kit, Cradle

Note: (Includes 24, 30, 31 & 33)

$262.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

Nut, M8 Flanged Serrated

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 81917GS

Pin, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 70642GS

Mount, Vibration Engine

$31.99

$

In Stock, only 3 left!

0

6

Briggs & Stratton 66365GS

Housing, Engine Adaptor

$69.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 86307GS

HHCS, 5/16" x 3/4", Sems

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2816JGS

Assy, Rotor

$170.99

$

Usually ships in 2-12 days

0

9

Washer, 5/16 - M8

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 96796GS

Washer, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

HHCS, 5/16" - 24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 191271AGS

Assy, Stator

$291.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66825BGS

Carrier, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 67022GS

Grommet, Rubber

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 86308GGS

HHCS, M6-1.0 x 100, Sems

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 95003AGS

Assy., Control Panel

$114.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 74908GS

Taptite, M5 .08 x 10mm

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 191459GS

Decal, Control Panel

$5.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 91825GS

Rectifier, Brush & Bridge

$54.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 66849GS

Taptite, M5 - .08 x 20mm

$4.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 86494GS

Screw, M6 - 1.0 x 16 Wing

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 195373GS

Wire, Ground

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B4986GS

Decal, Ground

$2.99

$

In Stock, only 1 left!

0

25

Washer, #10 Ext. Shakeproof

Note: (Purchase locally)

$

$

Not available

26

TPHMS, M8 1.25 x 35

Note: (Purchase locally)

$

$

Not available

27

Briggs & Stratton B2153GS

Screw, 12 - 14 x 7/8, Self Drill

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84242GS

Grommet

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 55199JGS

Wire, Ground Panel

$1.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 93639GS

Decal, Danger

$11.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191438GS

Decal, Danger Instructions

$17.99

$

Usually ships in 2-12 days

0

32

PPHMS, M8 - 1.25 x 20

Note: (Purchase locally)

$

$

Not available

33

Briggs & Stratton 191436GS

Decal, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 65791GS

Bearing

$34.99

$

Usually ships in 2-12 days

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton 191196GS

Manual, Operator

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 43483GS

Plug, 250V, 20A
(Superseded to 100522GS)

Note: Parts Not Illustrated

$34.99

$

Usually ships in 2-12 days

0
