BTXPV 22700 E (7800822) - Brute 22" Walk-Behind Mower (2011) Deck Group (7501794) Parts Diagram

22" Walk-Behind Mower

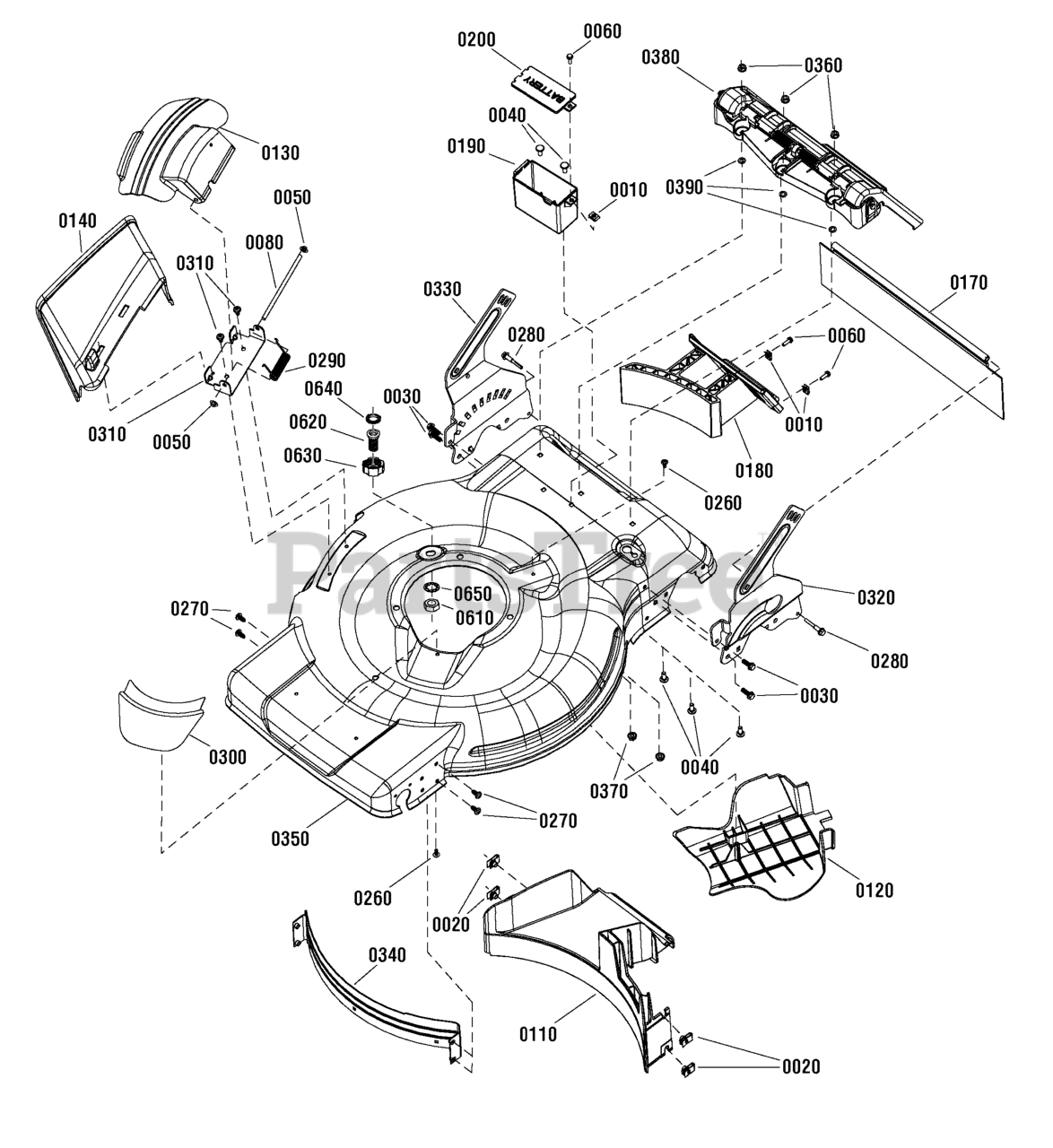

Deck Group (7501794) Parts Diagram

  • Title
0010

Murray 1960593SM

SPEED NUT, #10-24 Retainer with Extrusion

$4.99

$

Usually ships in 2-12 days

0

0020

Murray 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0030

Murray 7090699YP

BOLT, 1/4-20 x 3/4" Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0

0040

Murray 7090803YP

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0050

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0060

Murray 7091075SM

SCREW, Hex Washer Self Tap, #10C x 5/8, GR 5

$4.49

$

In Stock, Qty 5

0

0080

Murray 7101067YP

ROD, Pivot

$6.99

$

Usually ships in 2-12 days

0

0110

Murray 7103293YP

BAFFLE, Rear, Rear Wheel Drive WBM

$64.99

$

Usually ships in 2-12 days

0

0120

Murray 7104819YP

COVER, Belt Drive, Rear

$34.99

$

Usually ships in 2-12 days

0

0130

Murray 7103298YP

COVER, Mulching

$

$

Not available

0140

Murray 7103299YP

CHUTE, Side Discharge, 22" WBM

$35.99

$

In Stock, only 1 left!

0

0170

Murray 7103323YP

GUARD, Rear 22"

$9.49

$

In Stock, only 1 left!

0

0180

Murray 7103453YP

PLUG, Mulching, 22" Deck

$32.99

$

In Stock, only 3 left!

0

0190

Murray 7103457YP

BOTTOM, Battery Box, Miniature

$12.99

$

Usually ships in 2-12 days

0

0200

Murray 7103458YP

TOP, Battery Box, Miniature

$5.49

$

Usually ships in 2-12 days

0

0260

Murray 7900018YP

SCREW, Hi-Lo, 4.8 x 1.59 x 13mm Round Washer Head
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

0270

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0280

Murray 7900073YP

BOLT, Drag Shield, 1/4 - 20 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

0290

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

0300

Murray 7103296YP

FRONT SHIELD, Debris

$8.99

$

In Stock, only 2 left!

0

0310

Murray 7300855BMYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

0320

Murray 7300885AYP

BRACKET, Lower Handle, LH

$19.99

$

Usually ships in 2-12 days

0

0330

Murray 7300915AYP

BRACKET, Lower Handle, RH

$52.99

$

Usually ships in 2-12 days

0

0340

Murray 7301020YP

BAFFLE, Front

$50.99

$

In Stock, only 1 left!

0

0350

Murray 7301113ZYP

DECK, 22", RWD, ES, Washout

$183.99

$

Usually ships in 2-12 days

0

0360

Murray 15X143MA

NUT, Flange Lock, 1/4-20

$4.99

$

In Stock, Qty 13

0

0370

Murray 780285MA

NUT, 1/4-20 Hex Flange Whiz Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

0380

Murray 7501541YP

ASSEMBLY, Door, 22" WBM

$45.99

$

Usually ships in 2-12 days

0

0390

Murray 1960518SM

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

--

WASHOUT PORT ASSEMBLY

$

$

Not available

0610

Murray 1960716SM

NUT, 5/8-11 NC-2B Hex Jam

$3.49

$

Usually ships in 2-12 days

0

0620

Murray 7103804YP

ADAPTOR, Washout Port, WBM

$6.49

$

Usually ships in 2-12 days

0

0630

Murray 7103919YP

COUPLING, Hose

$4.49

$

Usually ships in 2-12 days

0

0640

Murray 7103957YP

WASHER, Hose

$3.99

$

Usually ships in 2-12 days

0

0650

Murray 7090880YP

WASHER, Internal Tooth, 5/8

$4.49

$

Usually ships in 2-12 days

0
