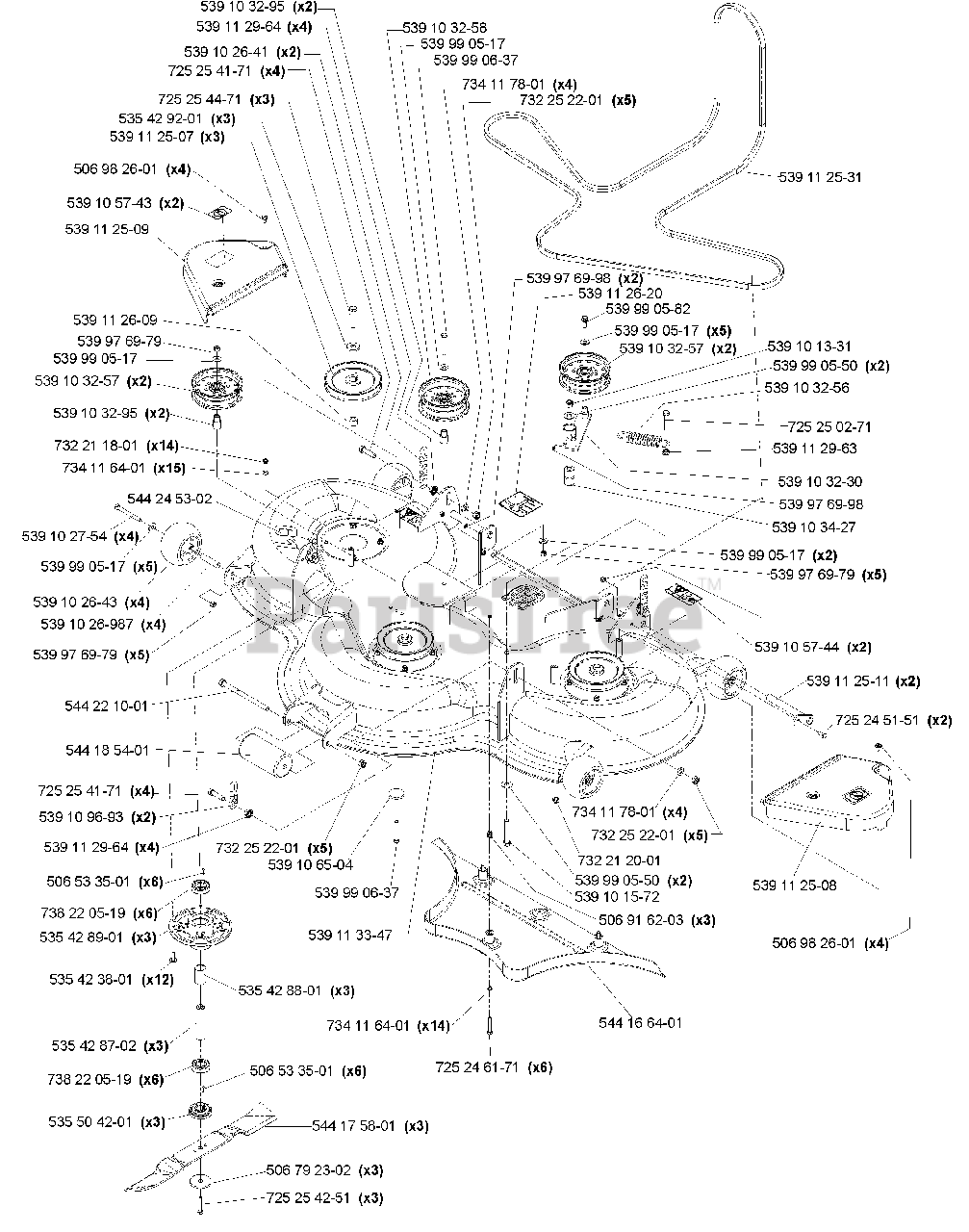

BZ 27 D (968999315) - Husqvarna Zero-Turn Mower (2009-07) Deck Assembly Parts Diagram

Zero-Turn Mower

Deck Assembly Parts Diagram

  • Title

506792302

Husqvarna 506792302

WASHER

$26.99

$

Usually ships in 3-10 days

0

535504201

Husqvarna 535504201

$

$

Currently unavailable

738220519

Husqvarna 738220519

BALL BEARING

$32.99

$

In Stock, only 2 left!

0

535428702

Husqvarna 535428702

AXLE

$102.99

$

Usually ships in 3-10 days

0

535428801

Husqvarna 535428801

SPACER

$13.99

$

Usually ships in 3-10 days

0

535423801

Husqvarna 535423801

BOLT

$6.99

$

Usually ships in 3-10 days

0

535428901

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

738220519

Husqvarna 738220519

BALL BEARING

$32.99

$

In Stock, only 2 left!

0

506533501

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

725254171

Husqvarna 725254171

SCREW

$9.49

$

Usually ships in 3-10 days

0

539109693

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

539112964

Husqvarna 539112964

$

$

Currently unavailable

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

725246171

Husqvarna 725246171

SCREW M6S 8X50 NLA

$

$

Not available

732252201

Husqvarna 732252201

Lock Nut, Fiber M12 DIN 985 Z/P

$3.49

$

In Stock, Qty 5

0

539106504

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539990637

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

506916203

Husqvarna 506916203

BLIND RIVET NUT

$

$

Not available

539101572

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$4.99

$

In Stock, Qty 14

0

539990550

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

732212001

Husqvarna 732212001

NUT

$5.99

$

Usually ships in 3-10 days

0

539113347

Husqvarna 539113347

$

$

Currently unavailable

734117801

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

732252201

Husqvarna 732252201

Lock Nut, Fiber M12 DIN 985 Z/P

$3.49

$

In Stock, Qty 5

0

539112508

Husqvarna 539112508

BELT SHIELD LT

$24.99

$

In Stock, only 1 left!

0

506982601

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 7

0

725245151

Husqvarna 725245151

SCREW 8X20

$5.99

$

In Stock, only 4 left!

0

539112511

Husqvarna 539112511

$

$

Currently unavailable

539105744

Husqvarna 539105744

DECAL, BELT DRIVE

$6.49

$

In Stock, only 4 left!

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539103427

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 8

0

539976998

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

539103230

Husqvarna 539103230

IDLER ARM

$

$

Not available

539112963

Husqvarna 539112963

$

$

Currently unavailable

539103256

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

725250271

Husqvarna 725250271

SCREW

$

$

Not available

539990550

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539101331

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990582

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

539112620

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

539112531

Husqvarna 539112531

DECK BELT, 61 BZCMB

$169.99

$

Usually ships in 3-10 days

0

539976998

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

732252201

Husqvarna 732252201

Lock Nut, Fiber M12 DIN 985 Z/P

$3.49

$

In Stock, Qty 5

0

734117801

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

539990637

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539103258

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 8

0

539103295

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 20+

0

539112964

Husqvarna 539112964

$

$

Currently unavailable

539102641

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

725254171

Husqvarna 725254171

SCREW

$9.49

$

Usually ships in 3-10 days

0

725254471

Husqvarna 725254471

$

$

Currently unavailable

535429201

Husqvarna 535429201

$

$

Currently unavailable

539112507

Husqvarna 539112507

PULLEY, 61

$

$

Not available

506982601

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 7

0

539105743

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

539112509

Husqvarna 539112509

BELT SHIELD RT

$

$

Not available

539112609

Husqvarna 539112609

KEY RETAINER

$10.99

$

Usually ships in 3-10 days

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539103257

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 13

0

539103257

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 13

0

539103295

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 20+

0

732211801

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

544245302

Husqvarna 544245302

DECAL
(Superseded to 539002461)

$

$

Not available

539102754

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 14

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539102643

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

5391026987

Husqvarna 5391026987

$

$

Currently unavailable

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

544221001

Husqvarna 544221001

$

$

Currently unavailable

544185401

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

725254251

Husqvarna 725254251

SCREW

$

$

Not available

544175801

Husqvarna 544175801

BLADE

$79.99

$

Usually ships in 3-10 days

0

506533501

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

544166401

Husqvarna 544166401

PLUG ASSEMBLY

$

$

Not available
