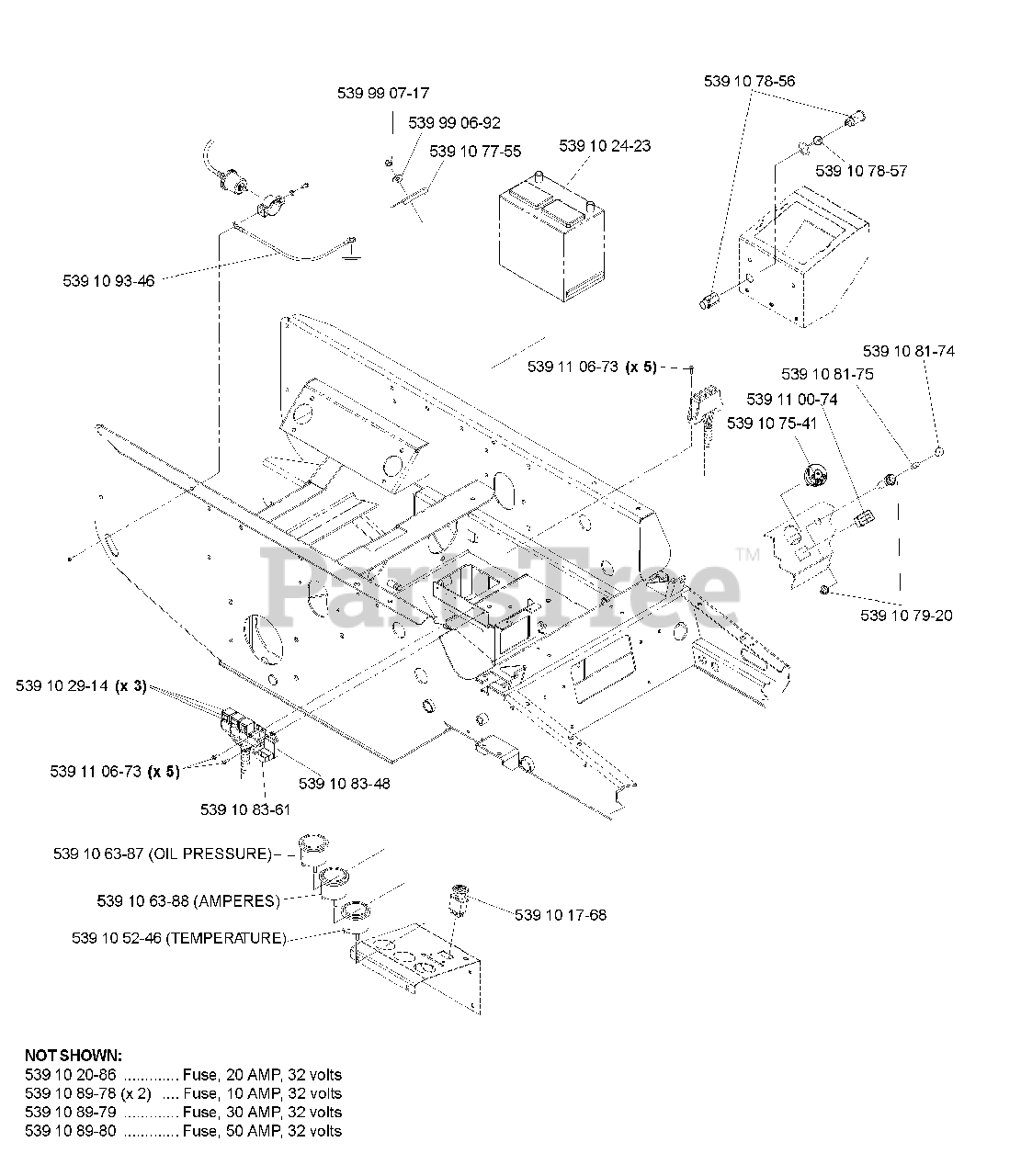

BZ 27 D (968999315) - Husqvarna Zero-Turn Mower (2009-07) Electrial Group Parts Diagram

Zero-Turn Mower

Electrial Group Parts Diagram

  • Title

539109346

Husqvarna 539109346

GROUND

$

$

Not available

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990692

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539107755

Husqvarna 539107755

Clamp

$8.99

$

Usually ships in 3-10 days

0

539107856

Husqvarna 539107856

POWER SOURCING HSG

$14.99

$

Usually ships in 3-10 days

0

539107857

Husqvarna 539107857

POWER SOURCE CAP

$2.99

$

Usually ships in 3-10 days

0

539110673

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

539107541

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

539110074

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 9

0

539108175

Husqvarna 539108175

LAMP

$42.99

$

Usually ships in 3-10 days

0

539108174

Husqvarna 539108174

LENS

$

$

Not available

539102914

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 15

0

539110673

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

539108361

Husqvarna 539108361

RELAY

$157.99

$

Usually ships in 3-10 days

0

539108348

Husqvarna 539108348

TIMER/GLOW PLUG

$

$

Not available

539101768

Husqvarna 539101768

RP SWITCH, BLADE
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

539106387

Husqvarna 539106387

GAUGE, OIL PRES DATCON 100172

$121.99

$

Usually ships in 3-10 days

0

539106388

Husqvarna 539106388

GAUGE, AMPMETER DATCON 100160

$121.99

$

Usually ships in 3-10 days

0

539105246

Husqvarna 539105246

TEMP GAUGE DATCON #100182

$80.99

$

Usually ships in 3-10 days

0

539107920

Husqvarna 539107920

LAMP SPROCKET

$17.99

$

Usually ships in 3-10 days

0

539102423

Husqvarna 539102423

BATTERY

$

$

Not available

539102086

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

539108978

Husqvarna 539108978

FUSE 10 AMP 32 VOLTS

$2.99

$

Usually ships in 3-10 days

0

539108979

Husqvarna 539108979

FUSE 30 AMP 32 VOLTS

$2.99

$

Usually ships in 3-10 days

0

539108980

Husqvarna 539108980

FUSE 50 AMP 30 VOLTS

$6.99

$

Usually ships in 3-10 days

0
