BZ 27 D (968999315) - Husqvarna Zero-Turn Mower (2009-07) Radiator 27 H.P. Parts Diagram

Zero-Turn Mower

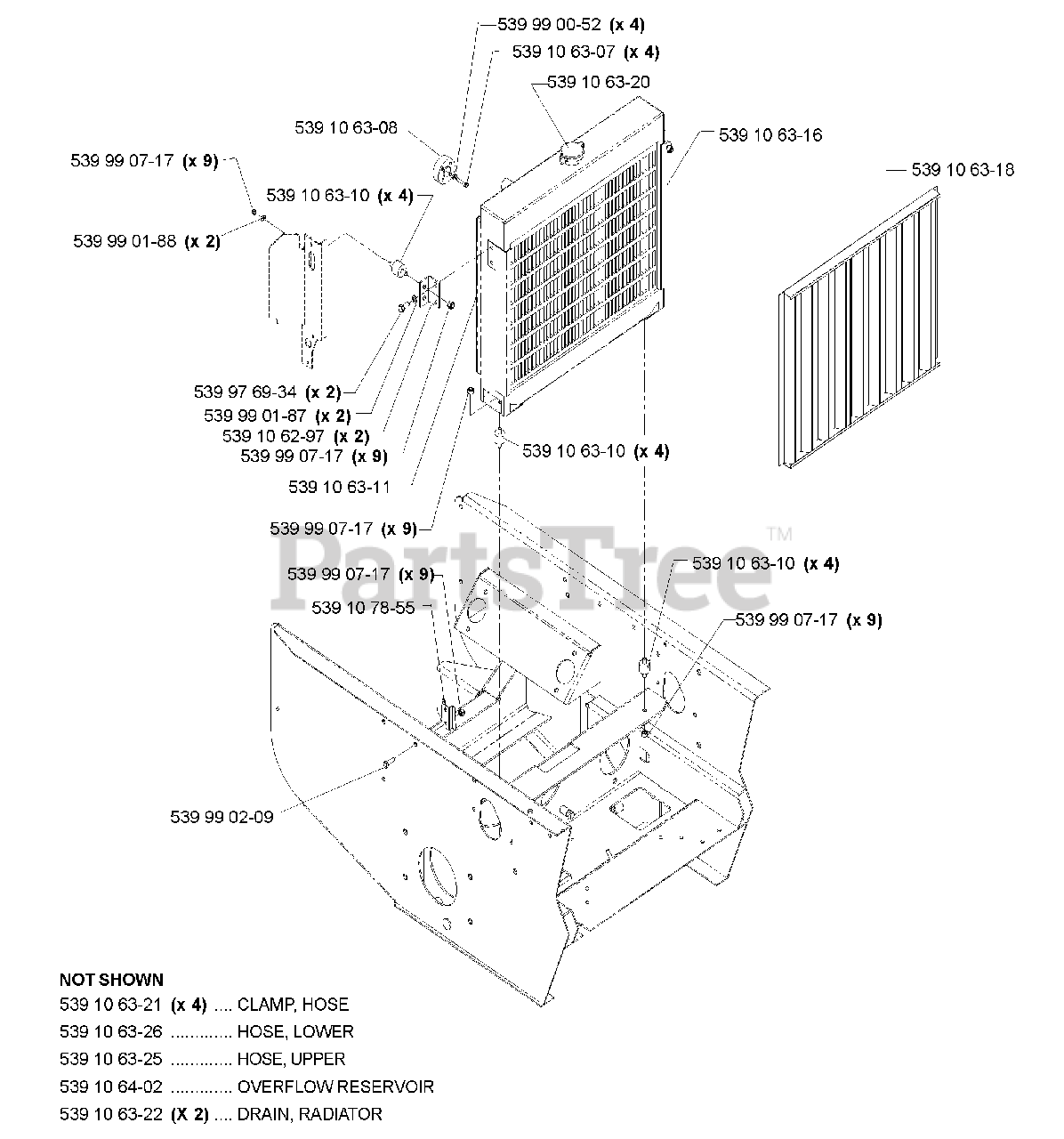

Radiator 27 H.P. Parts Diagram

  • Title

539990052

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

539106307

Husqvarna 539106307

BOLT - M6-1.0 X 30MM GR 8

$

$

Not available

539106320

Husqvarna 539106320

RADIATOR CAP

$42.99

$

Usually ships in 3-10 days

0

539106316

Husqvarna 539106316

RADIATOR

$

$

Not available

539106318

Husqvarna 539106318

Debris Guard

$182.99

$

Usually ships in 3-10 days

0

539106310

Husqvarna 539106310

ISOLATOR

$12.99

$

Usually ships in 3-10 days

0

539106308

Husqvarna 539106308

Fan Spacer

$42.99

$

Usually ships in 3-10 days

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990188

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

539976934

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

539990187

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

539106297

Husqvarna 539106297

BRACKET ISO

$4.99

$

Usually ships in 3-10 days

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539107855

Husqvarna 539107855

Mounting Bracket

$5.99

$

Usually ships in 3-10 days

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539106311

Husqvarna 539106311

SHROUD

$151.99

$

Usually ships in 3-10 days

0

539106310

Husqvarna 539106310

ISOLATOR

$12.99

$

Usually ships in 3-10 days

0

539106310

Husqvarna 539106310

ISOLATOR

$12.99

$

Usually ships in 3-10 days

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990209

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

539106321

Husqvarna 539106321

CLAMP

Note: NOT SHOWN

$

$

Not available

539106326

Husqvarna 539106326

LOWER HOSE

Note: NOT SHOWN

$66.99

$

Usually ships in 3-10 days

0

539106325

Husqvarna 539106325

TOP HOSE

Note: NOT SHOWN

$54.99

$

Usually ships in 3-10 days

0

539106402

Husqvarna 539106402

OVERFLOW TANK ASM

Note: NOT SHOWN

$

$

Not available

539106322

Husqvarna 539106322

DRAIN

Note: NOT SHOWN

$

$

Not available
