BZ 6127 D (968999218) - Husqvarna 61" Zero-Turn Mower (2003-06) ELECTRICAL Parts Diagram

61" Zero-Turn Mower

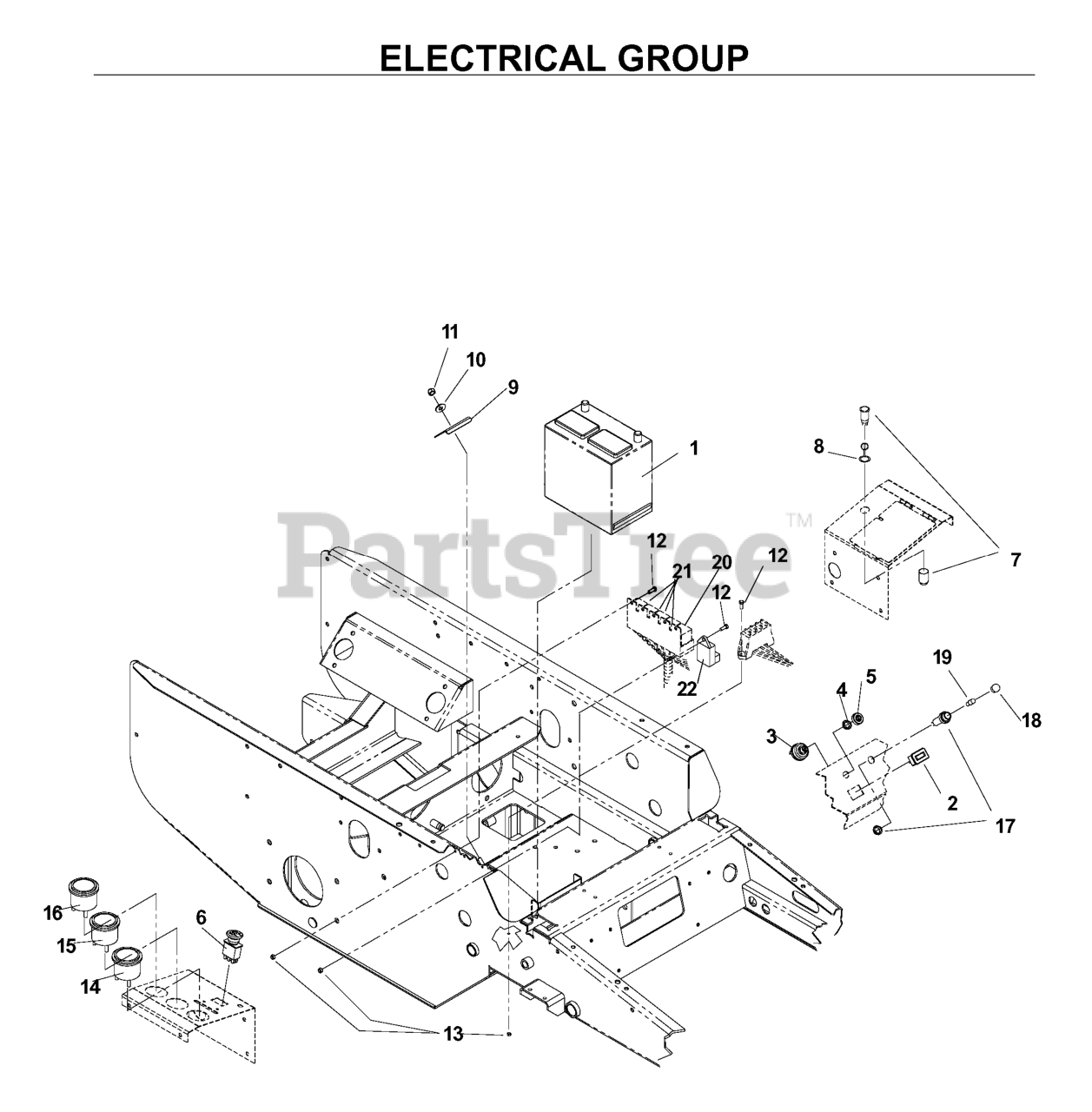

ELECTRICAL Parts Diagram

  • Title

13

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

21

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 14

0

15

Husqvarna 539106388

GAUGE, AMPMETER DATCON 100160

$121.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539106312

SCREW 10-24 X 3/4

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

8

Husqvarna 539107857

POWER SOURCE CAP

$2.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107755

CLAMP

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539108016

DIGITAL HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 8

0

17

Husqvarna 539107920

LAMP SPROCKET

$17.99

$

Usually ships in 3-10 days

0

539108979

Husqvarna 539108979

FUSE 30 AMP 32 VOLTS

$2.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539108174

LENS

$

$

Not available

19

Husqvarna 539108175

LAMP

$42.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 539101770

IGNITION SWITCH KIT

$

$

Not available

20

Husqvarna 539108361

RELAY

$157.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 539103177

DNO IGNITION NUT

$3.99

$

In Stock, only 3 left!

0

539102086

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

11

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539101771

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

539108980

Husqvarna 539108980

FUSE 50 AMP 30 VOLTS

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539102423

BATTERY

$

$

Not available

7

Husqvarna 539107856

POWER SOURCING HSG

$

$

Not available

22

Husqvarna 539108348

TIMER/GLOW PLUG

$

$

Not available

16

Husqvarna 539106387

GAUGE, OIL PRES DATCON 100172

$121.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105246

TEMP GAUGE DATCON #100182

$80.99

$

Usually ships in 3-10 days

0

539108978

Husqvarna 539108978

FUSE 10 AMP 32 VOLTS

$2.99

$

Usually ships in 3-10 days

0
