BZ 6127 TD (968999262) - Husqvarna 61" Zero-Turn Mower (2005-11) 61"/155CM CUTTING DECK 2 Parts Diagram

61" Zero-Turn Mower

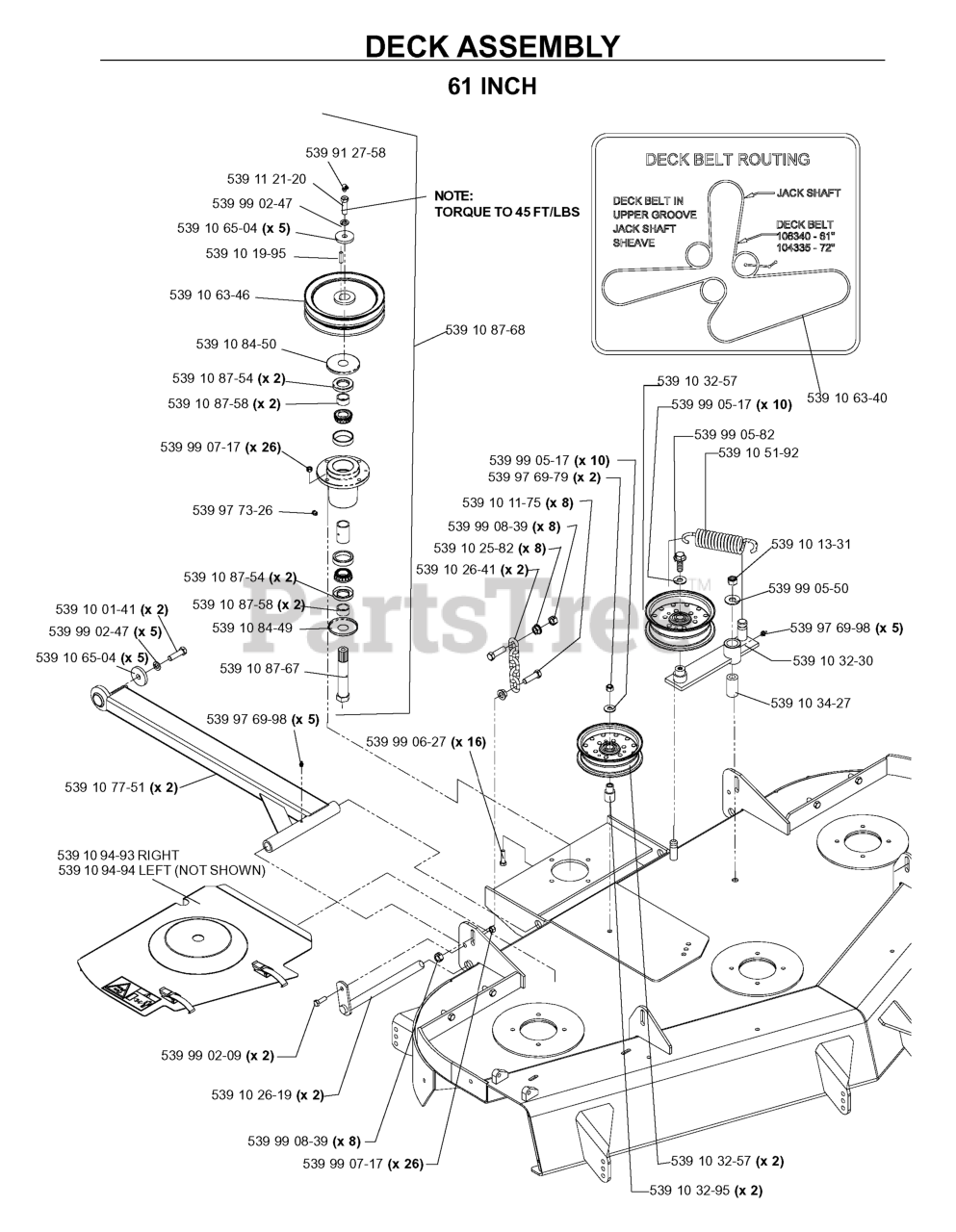

61"/155CM CUTTING DECK 2 Parts Diagram

  • Title

539 11 21-20

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

In Stock, only 1 left!

0

539 10 26-19

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

539 99 06-27

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

539 10 87-54

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 19

0

539 97 73-26

Husqvarna 539977326

PLUG-VENTED

$13.99

$

In Stock, only 1 left!

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 01-41

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

539 99 02-47

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539 10 32-30

Husqvarna 539103230

IDLER ARM

$

$

Not available

539 10 65-04

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539 10 87-58

Husqvarna 539108758

SPACER

$

$

Not available

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

539 10 63-46

Husqvarna 539106346

SHEAVE WSL

$

$

Not available

539 10 63-40

Husqvarna 539106340

BELT, DECK

$133.99

$

Usually ships in 3-10 days

0

539 10 84-49

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

539 10 84-50

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 2 left!

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539 99 08-39

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

539 10 87-67

Husqvarna 539108767

JACKSHAFT SPINDLE

$103.99

$

Usually ships in 3-10 days

0

539 10 77-51

Husqvarna 539107751

STRUT WELDMT, L.H.

$169.99

$

Usually ships in 3-10 days

0

539 10 11-75

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

539 10 32-57

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 9

0

539 10 25-82

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

539 99 02-47

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539 10 26-41

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

539 99 05-82

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

539 10 51-92

Husqvarna 539105192

DECK SPRING

$

$

Not available

539 10 19-95

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$3.99

$

In Stock, only 2 left!

0

539 10 32-95

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

539 10 34-27

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

539 10 87-68

Husqvarna 539108768

JACKSHAFT ASSY LOWER
(Superseded to 539112263)

$789.99

$

Usually ships in 3-10 days

0

539 10 32-57

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 9

0

539 10 94-94

Husqvarna 539109494

61 BELT SHIELD ASM - LH

Note: LEFT (NOT SHOWN)

$218.99

$

Usually ships in 3-10 days

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 91 27-58

Husqvarna 539912758

ZERK

$4.99

$

Usually ships in 3-10 days

0

539 10 94-93

Husqvarna 539109493

61 BELT SHIELD ASM - RH

Note: RIGHT

$206.99

$

Usually ships in 3-10 days

0
