BZ 6127 TD (968999262) - Husqvarna 61" Zero-Turn Mower (2005-11) ELECTRICAL Parts Diagram

61" Zero-Turn Mower

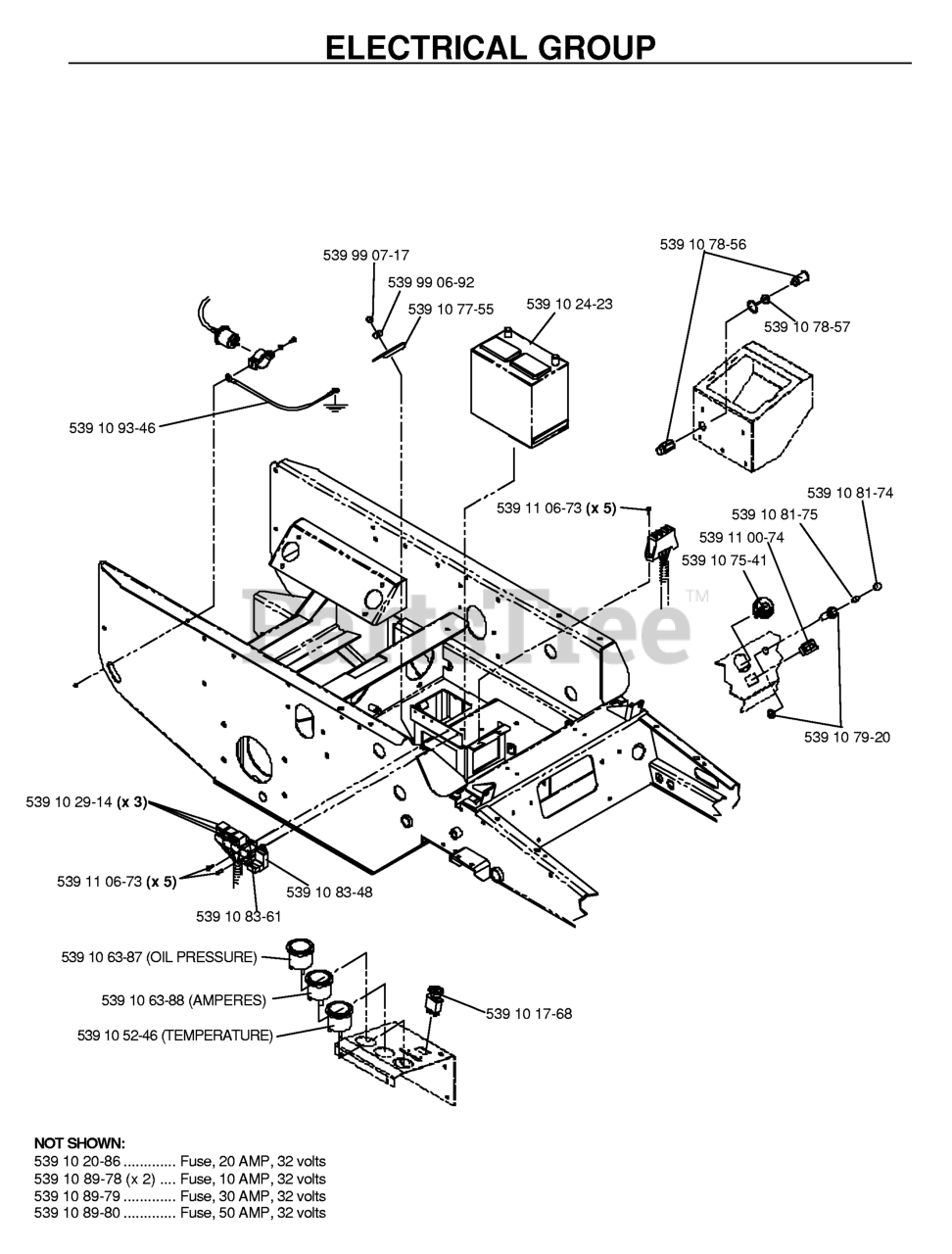

ELECTRICAL Parts Diagram

  • Title

539 10 78-56

Husqvarna 539107856

POWER SOURCING HSG

$

$

Not available

539 11 00-74

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 7

0

539 11 06-73

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

539 10 52-46

Husqvarna 539105246

TEMP GAUGE DATCON #100182

Note: TEMPERATURE

$80.99

$

Usually ships in 3-10 days

0

539 10 75-41

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 81-75

Husqvarna 539108175

LAMP

$42.99

$

Usually ships in 3-10 days

0

539 10 63-88

Husqvarna 539106388

GAUGE, AMPMETER DATCON 100160

Note: AMPERES

$121.99

$

Usually ships in 3-10 days

0

539 10 63-87

Husqvarna 539106387

GAUGE, OIL PRES DATCON 100172

Note: OIL PRESSURE

$121.99

$

Usually ships in 3-10 days

0

539 10 24-23

Husqvarna 539102423

BATTERY

$

$

Not available

539 10 89-80

Husqvarna 539108980

FUSE 50 AMP 30 VOLTS

Note: FUSE, 50 AMP, 32 VOLTS

$6.99

$

Usually ships in 3-10 days

0

539 10 83-61

Husqvarna 539108361

RELAY

$157.99

$

Usually ships in 3-10 days

0

539 10 29-14

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 14

0

539 10 93-46

Husqvarna 539109346

GROUND

$

$

Not available

539 10 78-57

Husqvarna 539107857

POWER SOURCE CAP

$2.99

$

Usually ships in 3-10 days

0

539 10 83-48

Husqvarna 539108348

TIMER/GLOW PLUG

$

$

Not available

539 10 81-74

Husqvarna 539108174

LENS

$

$

Not available

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539 10 20-86

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

Note: FUSE, 20 AMP, 32 VOLTS

$

$

Not available

539 10 89-79

Husqvarna 539108979

FUSE 30 AMP 32 VOLTS

Note: FUSE, 30 AMP, 32 VOLTS

$2.99

$

Usually ships in 3-10 days

0

539 10 17-68

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

539 10 89-78

Husqvarna 539108978

FUSE 10 AMP 32 VOLTS

Note: FUSE, 10 AMP, 32 VOLTS

$2.99

$

Usually ships in 3-10 days

0

539 10 77-55

Husqvarna 539107755

CLAMP

$8.99

$

Usually ships in 3-10 days

0

539 10 79-20

Husqvarna 539107920

LAMP SPROCKET

$17.99

$

Usually ships in 3-10 days

0
