BZ 6127 TD (968999262) - Husqvarna 61" Zero-Turn Mower (2005-11) HYDRAULIC PUMP - MOTOR 2 Parts Diagram

61" Zero-Turn Mower

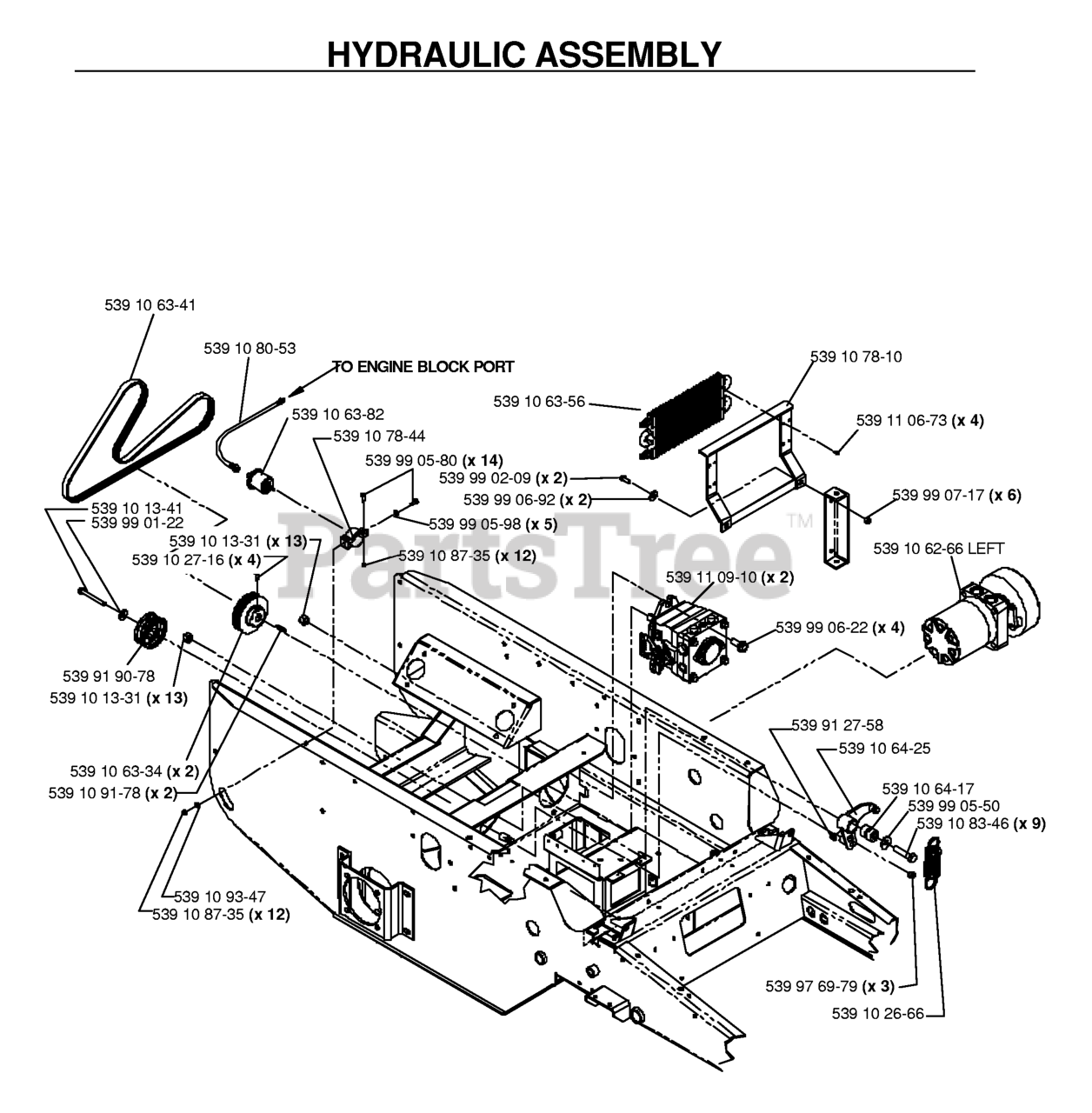

HYDRAULIC PUMP - MOTOR 2 Parts Diagram

  • Title

539 10 13-41

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

539 10 78-44

Husqvarna 539107844

CLAMP-OIL SENDER

$

$

Not available

539 10 64-25

Husqvarna 539106425

ARM WELDMENT

$194.99

$

Usually ships in 3-10 days

0

539 10 80-53

Husqvarna 539108053

HOSE

$15.99

$

Usually ships in 3-10 days

0

539 99 06-22

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539 10 63-82

Husqvarna 539106382

SENDER,OIL PRESS

$133.99

$

Usually ships in 3-10 days

0

539 10 63-41

Husqvarna 539106341

PUMP BELT

$

$

Not available

539 10 26-66

Husqvarna 539102666

SPRING

$34.99

$

Usually ships in 3-10 days

0

539 10 91-78

Husqvarna 539109178

KEY, METRIC

$7.99

$

Usually ships in 3-10 days

0

539 99 01-22

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539 11 06-73

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

539 10 27-16

Husqvarna 539102716

SCREW 5/16C X 1 SQ HEAD SET

$3.99

$

In Stock, only 3 left!

0

539 10 87-35

Husqvarna 539108735

NUT 1/4-20 HEX FLG LK ZD

$4.99

$

In Stock, only 2 left!

0

539 10 83-46

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$3.99

$

In Stock, only 1 left!

0

539 10 93-47

Husqvarna 539109347

WASHER 1/4 EXTLW STAR ZD

$0.99

$

Usually ships in 3-10 days

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 91 90-78

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 9

0

539 11 09-10

Husqvarna 539110910

HG_PUMP

$2063.99

$

Usually ships in 3-10 days

0

539 91 27-58

Husqvarna 539912758

ZERK

$4.99

$

Usually ships in 3-10 days

0

539 10 62-66

Husqvarna 539106266

WHEEL MTR ASM

Note: LEFT

$1456.99

$

Usually ships in 3-10 days

0

539 99 05-80

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

539 99 05-98

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

539 10 63-56

Husqvarna 539106356

COOLER

$133.99

$

Usually ships in 3-10 days

0

539 10 63-34

Husqvarna 539106334

PUMP SHEAVE

$

$

Not available

539 10 78-10

Husqvarna 539107810

COOLER WLDMT MT

$35.99

$

Usually ships in 3-10 days

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 64-17

Husqvarna 539106417

BUSHING

$

$

Not available
