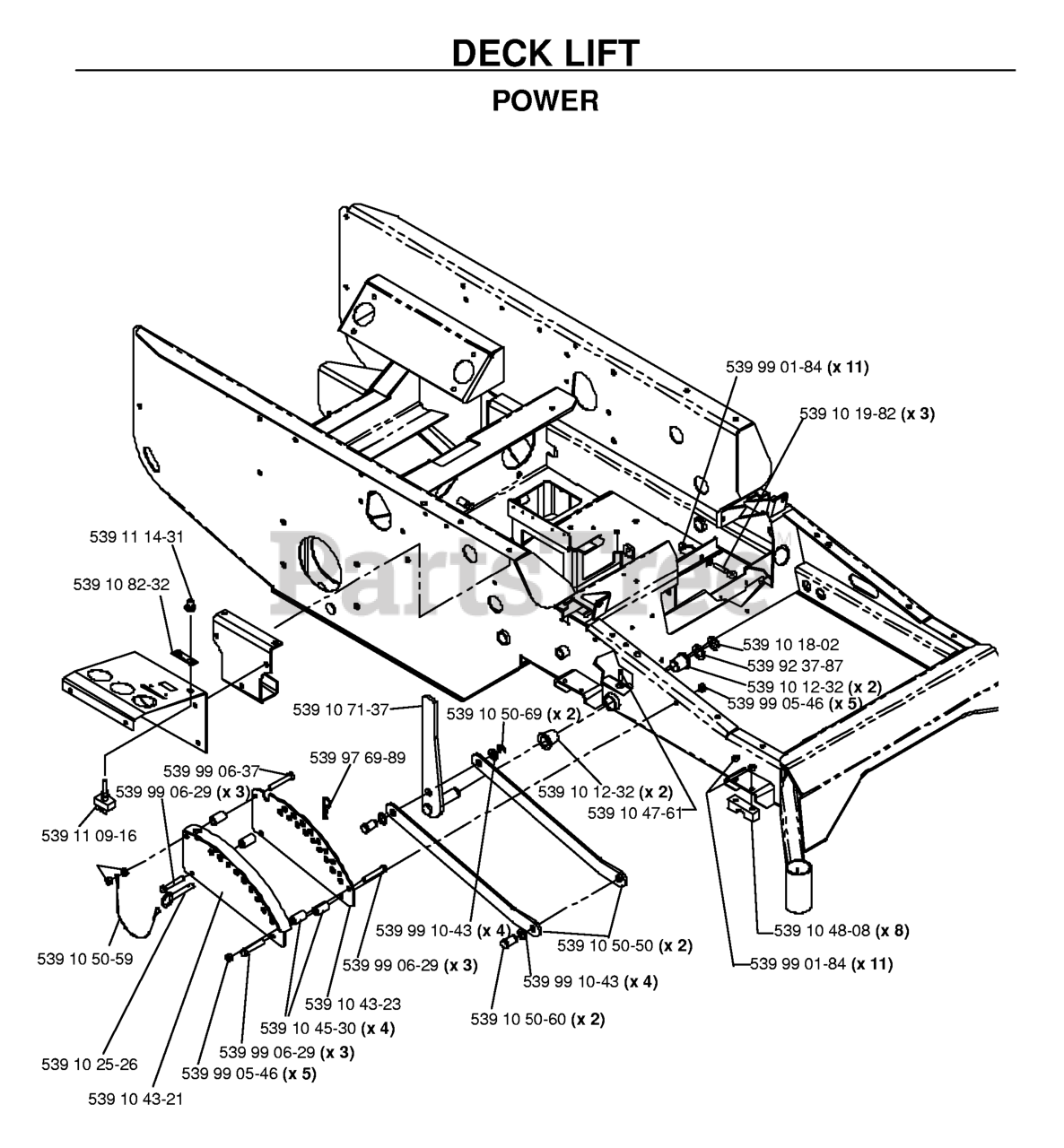

BZ 6127 TD (968999262) - Husqvarna 61" Zero-Turn Mower (2005-11) MOWER LIFT / DECK LIFT Parts Diagram

61" Zero-Turn Mower

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

539 10 47-61

Husqvarna 539104761

GREASE ZERK LONG

$3.99

$

Usually ships in 3-10 days

0

539 10 25-26

Husqvarna 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539 99 06-29

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

539 10 82-32

Husqvarna 539108232

DECAL, LIFT SWITCH

$

$

Not available

539 10 48-08

Husqvarna 539104808

PILLOW BLOCK

$8.99

$

Usually ships in 3-10 days

0

539 10 19-82

Husqvarna 539101982

EYEBOLT, RH

$40.99

$

Usually ships in 3-10 days

0

539 99 06-37

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

539 92 37-87

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 3 left!

0

539 10 50-59

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

539 99 10-43

Husqvarna 539991043

BUSHING

$3.99

$

In Stock, only 2 left!

0

539 10 50-60

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

539 10 50-69

Husqvarna 539105069

E-RING 5/8

$3.99

$

In Stock, Qty 7

0

539 99 01-84

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

539 10 50-50

Husqvarna 539105050

LIFT LINKAGE,PAINTED

$23.99

$

Usually ships in 3-10 days

0

539 97 69-89

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

539 10 43-23

Husqvarna 539104323

ADJ. PLATE PAINTED

$23.99

$

Usually ships in 3-10 days

0

539 10 45-30

Husqvarna 539104530

DECK LIFT SPACER

$7.49

$

Usually ships in 3-10 days

0

539 10 12-32

Husqvarna 539101232

BUSHING, FLANGED

$6.49

$

In Stock, Qty 11

0

539 10 43-21

Husqvarna 539104321

ADJ. PLATE WLDMNT

$61.99

$

Usually ships in 3-10 days

0

539 11 14-31

Husqvarna 539111431

SWITCH BOOT

$36.99

$

Usually ships in 3-10 days

0

539 10 71-37

Husqvarna 539107137

LIFT LEVER

$51.99

$

Usually ships in 3-10 days

0

539 11 09-16

Husqvarna 539110916

SWITCH

$78.99

$

Usually ships in 3-10 days

0

539 10 18-02

Husqvarna 539101802

E-RING 7/8

$3.99

$

Usually ships in 3-10 days

0
