BZ 6127 TD (968999262) - Husqvarna 61" Zero-Turn Mower (2005-11) SEAT Parts Diagram

61" Zero-Turn Mower

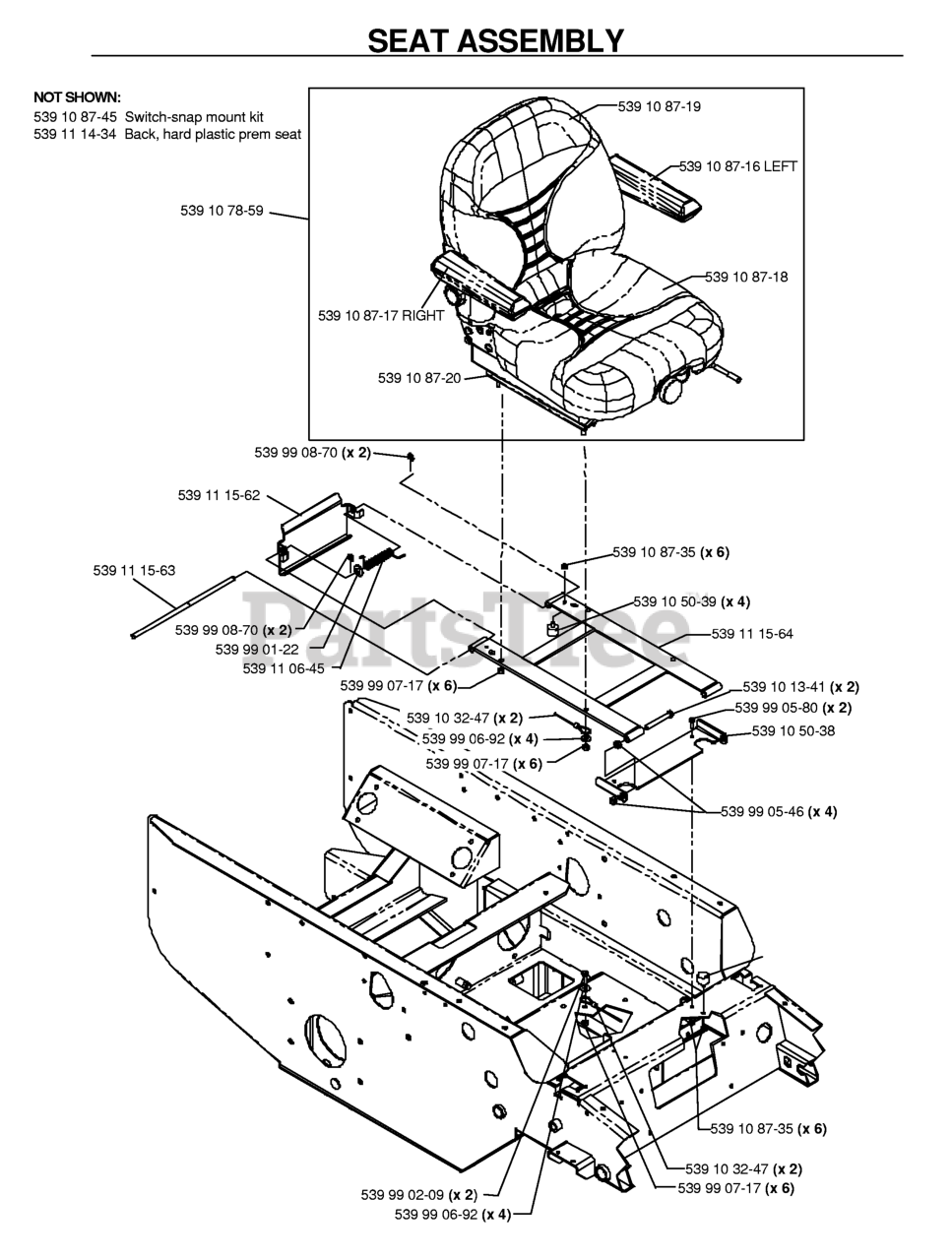

SEAT Parts Diagram

  • Title

539 10 50-39

Husqvarna 539105039

STUD/PLATE MOUNT

$

$

Not available

539 10 87-45

Husqvarna 539108745

SWITCH-SNAP MOUNT KIT

Note: SWITCH-SNAP MOUNT KIT NOT SHOWN:

$

$

Not available

539 10 13-41

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

539 99 01-22

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539 10 32-47

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 87-19

Husqvarna 539108719

BACK CUSHION KIT

$131.99

$

Usually ships in 3-10 days

0

539 99 08-70

Husqvarna 539990870

E RING 3/8"

$6.49

$

Usually ships in 3-10 days

0

539 10 87-16

Husqvarna 539108716

ARMREST KIT, LH

Note: LEFT

$145.99

$

Usually ships in 3-10 days

0

539 10 87-18

Husqvarna 539108718

SEAT CUSHION KIT

$303.99

$

Usually ships in 3-10 days

0

539 11 15-62

Husqvarna 539111562

LATCH

$18.99

$

Usually ships in 3-10 days

0

539 10 78-59

Husqvarna 539107859

SEAT, SUSPENSION
(Superseded to 539131986)

$512.99

$

Usually ships in 3-10 days

0

539 10 50-38

Husqvarna 539105038

SEAT BKT. W/PAINT
(Superseded to 539105224)

$30.99

$

Usually ships in 3-10 days

0

539 11 15-63

Husqvarna 539111563

PIN

$17.99

$

Usually ships in 3-10 days

0

539 11 15-64

Husqvarna 539111564

SEAT MOUNT WLDMT

$80.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

539 10 87-17

Husqvarna 539108717

ARMREST KIT, RH

Note: RIGHT

$145.99

$

Usually ships in 3-10 days

0

539 11 06-45

Husqvarna 539110645

TORSION SPRING (SEAT)

$12.99

$

Usually ships in 3-10 days

0

539 10 87-20

Husqvarna 539108720

SLIDE KIT, SEAT ADJ

$83.99

$

Usually ships in 3-10 days

0

539 99 05-80

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

539 10 87-35

Husqvarna 539108735

NUT 1/4-20 HEX FLG LK ZD

$4.99

$

In Stock, only 2 left!

0

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539 11 14-34

Husqvarna 539111434

BACK, HARD PLASTIC PREM SEAT

Note: BACK, HARD PLASTIC PREM SEAT

$

$

Not available
