C 224 (31AM53K2897) - Columbia 24" Snow Thrower (2014) Engine Drive Parts Diagram

24" Snow Thrower

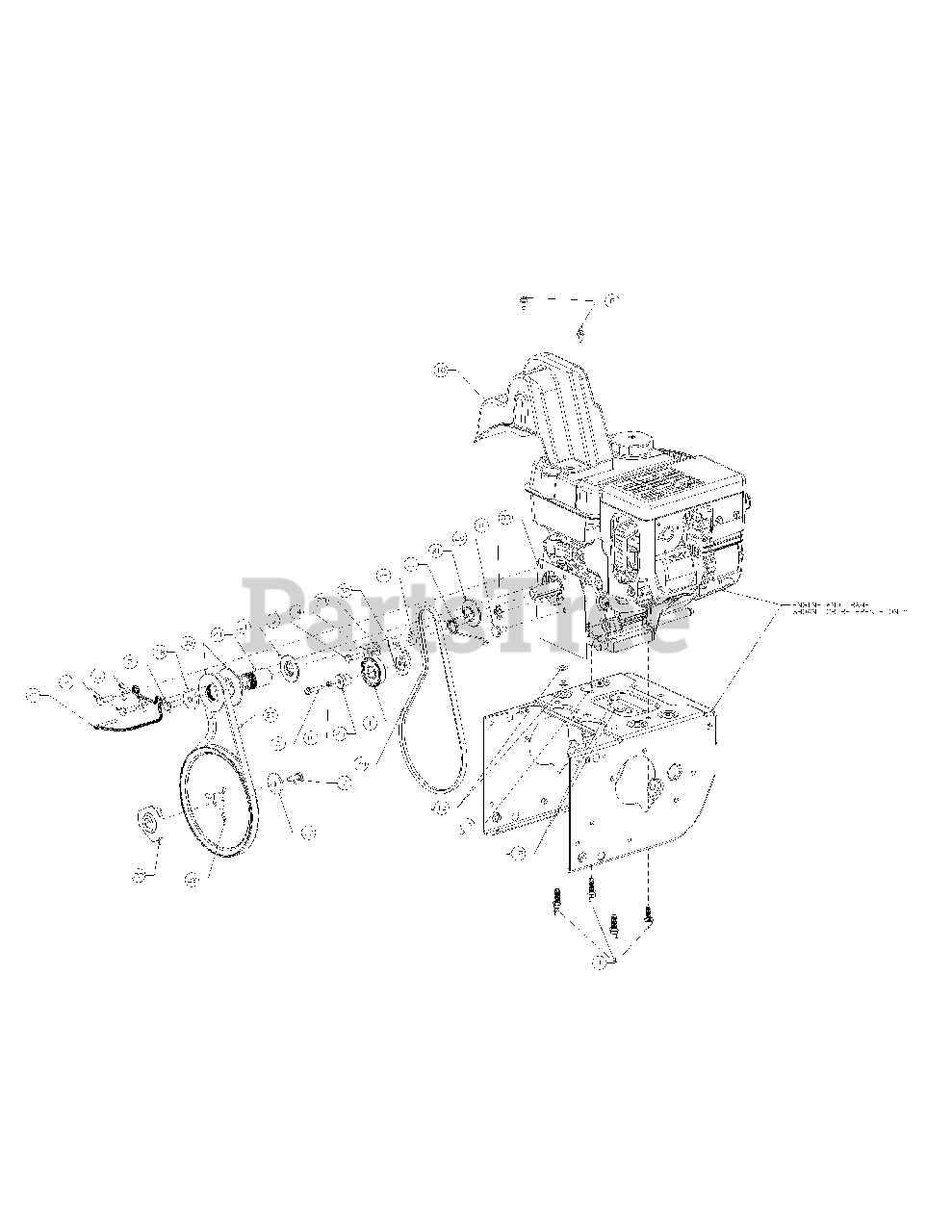

Engine Drive Parts Diagram

  • Title

1

MTD 684-04169

Pulley Asm:Idler

$34.99

$

Usually ships in 3-6 days

0

2

MTD 710-0117A

Hhcs-5/16-24 X 1.0

$5.49

$

Usually ships in 3-6 days

0

3

MTD 710-0191

Screw 3/8-24X1.25

$4.99

$

In Stock, Qty 8

0

4

MTD 710-0654A

Screw-Hex

$4.49

$

In Stock, only 4 left!

0

5

MTD 710-0672

Screw-Hex 5/16-24

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0809

Screw-Hex 1/4-20 X

$6.99

$

In Stock, Qty 20+

0

7

MTD 710-1245B

Screw-Hex Cap 5/1

$8.49

$

In Stock, only 4 left!

0

8

MTD 710-1652

Screw Hex.Wash.Hd

$4.49

$

In Stock, Qty 20+

0

9

MTD 926-04012

Nut-Push On
(Superseded to 726-04012)

$

$

Not available

10

MTD 731-05353

Cover:Belt
(Superseded to 731-05353B)

$

$

Not available

11

MTD 732-04308A

Spring-Torsion
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 12

0

12

MTD 735-04099

Plug-3/8 Dia Id X

$5.99

$

Usually ships in 3-6 days

0

13

MTD 735-04100

Plug-1/2 Id X 3/32

$5.99

$

Usually ships in 3-6 days

0

14

MTD 936-0119

Washer-Lock 5/16

$4.99

$

In Stock, Qty 20+

0

15

MTD 936-0159

Washer-Fl
(Superseded to 736-0159)

$

$

Not available

16

MTD 936-0329

Washer-Lock

$4.49

$

In Stock, Qty 11

0

17

MTD 736-0505

Washer-Fl

$6.49

$

In Stock, Qty 5

0

18

MTD 736-3082A

Washer-Flat .45 X

$9.99

$

In Stock, Qty 17

0

19

MTD n/a

Grease

Note: (purchase locally)

$

$

Currently unavailable

20

MTD 738-04439

Screw-Shoulder

$3.99

$

In Stock, Qty 7

0

21

MTD 747-06336

Guide-Belt
(Superseded to 747-06336A)

$

$

Not available

22

MTD 748-04053A

Pulley-Adapter .75

$22.99

$

In Stock, only 1 left!

0

23

MTD 748-04112B

Spacer-Shoulder

$4.49

$

In Stock, only 1 left!

0

24

MTD 750-04303

Spacer-Pulley

$17.99

$

In Stock, only 1 left!

0

25

MTD 750-04477A

Spacer-Idler Brkt

$5.49

$

In Stock, Qty 6

0

26

MTD 750-04571

Spacer:Shoulder

$6.99

$

In Stock, Qty 6

0

27

MTD 954-04050A

Belt-V Type

$27.99

$

In Stock, Qty 20+

0

28

MTD 954-04260

Belt-V Type 3L

$28.99

$

In Stock, only 3 left!

0

29

MTD 756-04109

Pulley-Auger 8.1 O

$54.99

$

In Stock, only 3 left!

0

30

MTD 756-04113

Pulley-Half 4L V
(Superseded to 756-06563)

$3.99

$

Usually ships in 3-6 days

0

31

MTD 756-04252

Pulley Half-3/8 V

$6.49

$

In Stock, only 3 left!

0

32

MTD 790-00208D

Bracket-Idler Drive

$8.99

$

In Stock, only 2 left!

0

33

MTD 790-00289A-0637

Plate-Cov
(Superseded to 790-00289B-0637)

$26.99

$

Usually ships in 3-6 days

0
