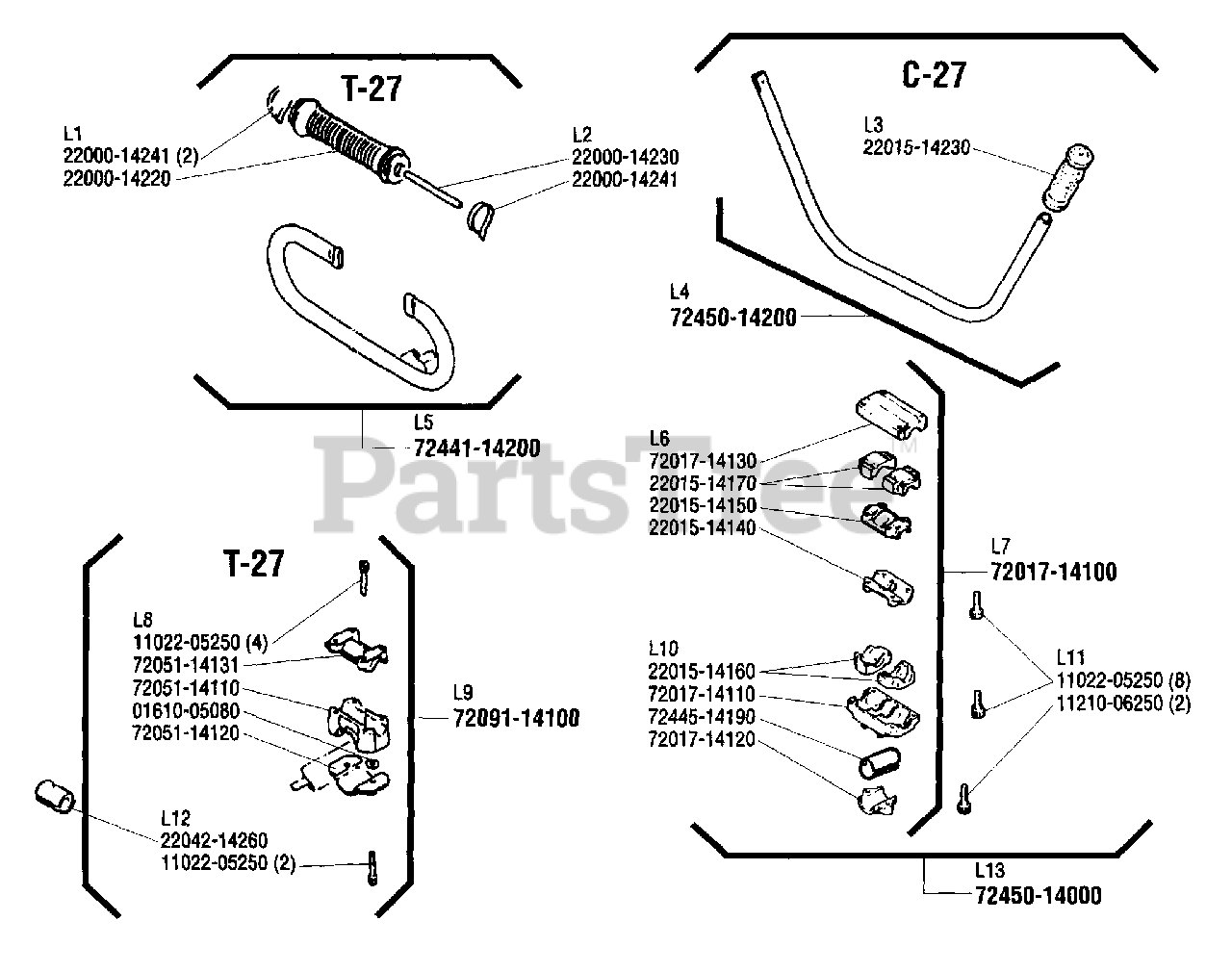

C 27 - Shindaiwa Brush Cutter Handle Grip Parts Diagram

Brush Cutter

Handle Grip Parts Diagram

  • Title

L5-72441-14200

Echo 72441-14200

HANDLE ASSY
(Superseded to P021032690)

$

$

Not available

L1-22000-14220

Echo 22000-14220

GRIP, HANDLE
(Superseded to C403000370)

$

$

Not available

L1-22000-14241

Echo 22000-14241

GRIP, BAND
(Superseded to V495001420)

$1.99

$

Usually ships in 2-4 days

0

L2-22000-14230

Echo 22000-14230

GRIP, CORE
(Superseded to V352000130)

$1.49

$

In Stock, only 1 left!

0

L2-22000-14241

Echo 22000-14241

GRIP, BAND
(Superseded to V495001420)

$1.99

$

Usually ships in 2-4 days

0

L9-72091-14100

Echo 72091-14100

BRACKET ASSY
(Superseded to P021024920)

$26.99

$

In Stock, only 2 left!

0

L8-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

L8-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

L8-72051-14110

Echo 72051-14110

BRACKET, HANDLE
(Superseded to P021033260)

$28.99

$

Usually ships in 2-4 days

0

L8-72051-14131

Echo 72051-14131

UPPER CAP

$6.99

$

Usually ships in 2-4 days

0

L8-72051-14120

Echo 72051-14120

CAP, LOWER
(Superseded to P021033260)

$28.99

$

Usually ships in 2-4 days

0

L12-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

L12-22042-14260

Echo 22042-14260

SPACER, HANDLE

$1.99

$

Usually ships in 2-4 days

0

L13-72450-14000

Echo 72450-14000

HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

L4-72450-14200

Echo 72450-14200

HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

L3-22015-14230

Echo 22015-14230

GRIP, LEFT
(Superseded to C403000410)

$11.99

$

Usually ships in 2-4 days

0

L7-72017-14100

Echo 72017-14100

BRACKET ASSY
(Superseded to P021031460)

$49.99

$

Usually ships in 2-4 days

0

L6-22015-14140

Echo 22015-14140

CLAMP, LOWER
(Superseded to C423000760)

$5.49

$

Usually ships in 2-4 days

0

L6-22015-14150

Echo 22015-14150

CLAMP, UPPER
(Superseded to C423000770)

$5.99

$

Usually ships in 2-4 days

0

L6-22015-14170

Echo 22015-14170

CUSHION, UPPER
(Superseded to V420002470)

$2.49

$

Usually ships in 2-4 days

0

L6-72017-14130

Echo 72017-14130

UPPER CAP
(Superseded to C423000740)

$9.49

$

Usually ships in 2-4 days

0

L10-22015-14160

Echo 22015-14160

CUSHION, LOWER
(Superseded to V420002460)

$2.99

$

Usually ships in 2-4 days

0

L10-72017-14110

Echo 72017-14110

BRACKET
(Superseded to C423000700)

$11.99

$

In Stock, only 1 left!

0

L10-72017-14120

Echo 72017-14120

CAP, LOWER
(Superseded to C423000720)

$5.99

$

Usually ships in 2-4 days

0

L10-72445-14190

Echo 72445-14190

SPACER
(Superseded to C511000110)

$2.49

$

Usually ships in 2-4 days

0

L11-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

L11-11210-06250

Echo 11210-06250

BOLT
(Superseded to 9114206025)

$0.99

$

Usually ships in 2-4 days

0
