C 3203 (82467) - Snapper 20" Snow Thrower Discharge Chute Parts Diagram

20" Snow Thrower

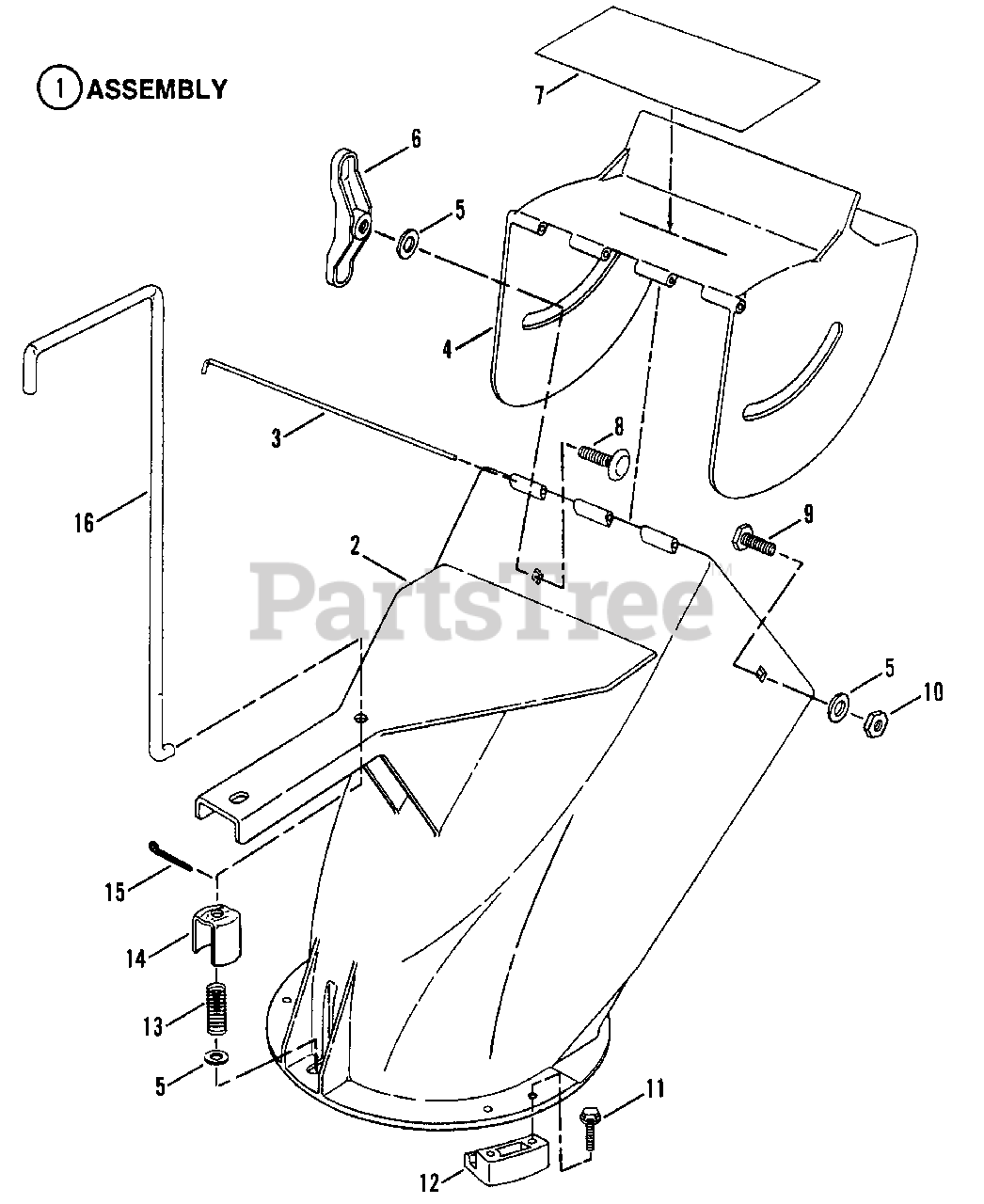

Discharge Chute Parts Diagram

  • Title

1

Snapper 7053488

ASSEMBLY, Chute & Discharge Decal
(Superseded to 7053488YP)

Note: (Includes items 2, 3, & 4)

$121.99

$

Usually ships in 2-12 days

0

2

Snapper 7028345

CHUTE (Replaced by 7053488)

Note: Was 28345 (Includes Decal, Deflector, & Pin)

$

$

Currently unavailable

3

Snapper 7028346

PIN, Wire Hinge

$

$

Currently unavailable

4

Snapper 7028344

DEFLECTOR, Discharge
(Superseded to 7028344YP)

$12.99

$

Usually ships in 2-12 days

0

5

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7016368

WING-NUT, 5/16-18

$

$

Not available

7

Snapper 7027448

DECAL, DANGER

$

$

Not available

8

Snapper 7090316

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703225)

Note: Was 91097

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7091021

SCREW, 5/16-24 x 1" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

10

Snapper 7091606

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 8

0

11

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted Hex Head, Self-Tapping
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

12

Snapper 7014915

RETAINER, Chute to Housing
(Superseded to 7014915YP)

$6.49

$

In Stock, Qty 6

0

13

Snapper 7016330

SPRING, Release Rod

$1.99

$

In Stock, Qty 8

0

14

Snapper 7032919

STOP, Handle
(Superseded to 7032919YP)

$35.99

$

Usually ships in 2-12 days

0

15

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 91082

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7016329

ROD, Release

$8.99

$

Usually ships in 2-12 days

0
