C 35 LA - Shindaiwa Brush Cutter (SN: 20007141 - 20007380) Crankcase / Engine Cover / Fan Cover Parts Diagram

Brush Cutter

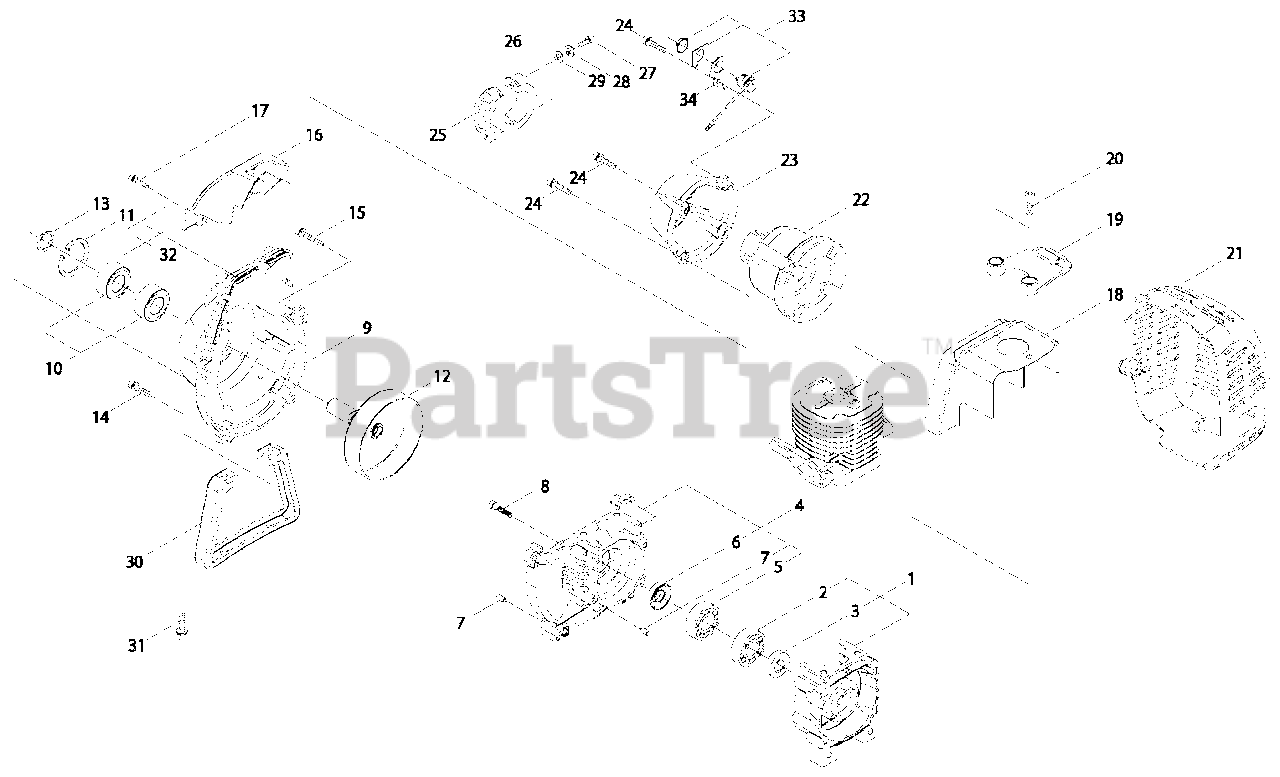

Crankcase / Engine Cover / Fan Cover Parts Diagram

  • Title

1

Echo P021033430

CRANKCASE ASSY - REAR
(Superseded to P021033431)

Note: 72935-21101

$26.99

$

In Stock, only 1 left!

0

2

Echo V592000030

BEARING, BALL - 6202C3
(Superseded to V592000290)

Note: 12900-62020

$7.49

$

Usually ships in 2-4 days

0

3

Echo V508000050

SEAL, OIL - 15

Note: 20010-21211

$7.49

$

In Stock, Qty 12

0

4

Echo P021030050

CRANKCASE KIT - FRONT
(Superseded to P021030051)

Note: 70062-21200

$45.99

$

Usually ships in 2-4 days

0

5

Echo V592000030

BEARING, BALL - 6202C3
(Superseded to V592000290)

Note: 12900-62020

$7.49

$

Usually ships in 2-4 days

0

6

Echo V508000050

SEAL, OIL - 15

Note: 20010-21211

$7.49

$

In Stock, Qty 12

0

7

Echo V623000060

PIN - LOCATING
(Superseded to 10021502830)

Note: 12492-50100

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90010505030

SCREW - 5X30

Note: 01020-05300

$1.49

$

In Stock, Qty 6

0

9

Echo A172001250

CASE, FAN

Note: 70084-31111

$79.99

$

Usually ships in 2-4 days

0

10

Echo 90080206002

BEARING, BALL - 6002

Note: 02006-06002

$16.99

$

In Stock, only 1 left!

0

11

Echo 9242432000

RING, RETAINING - 32

Note: 02432-32120

$0.99

$

In Stock, Qty 5

0

12

Echo A556000850

DRUM, CLUTCH
(Superseded to A556001480)

Note: 62112-31210

$53.99

$

Usually ships in 2-4 days

0

13

Echo V583000180

RING, RETAINING
(Superseded to V583000181)

Note: 20011-31230

$0.99

$

Usually ships in 2-4 days

0

14

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

Note: 11022-05200

$0.99

$

In Stock, Qty 20+

0

15

Echo V203000580

SCREW - 5X30
(Superseded to V203000581)

Note: 11022-05300

$

$

Not available

16

Echo A162000190

PROTECTOR

Note: 70131-34100

$6.49

$

Usually ships in 2-4 days

0

17

Echo V202000300

SCREW - 4X16
(Superseded to 9111304016)

Note: 11024-04160

$0.99

$

In Stock, Qty 20+

0

18

Echo A160002430

COVER, ENGINE

Note: 62112-32110

$19.99

$

Usually ships in 2-4 days

0

19

Echo A163000020

BRACKET

Note: 62104-32310

$2.99

$

Usually ships in 2-4 days

0

20

Echo V203000540

SCREW - 5X18
(Superseded to V203000541)

Note: 11022-05180

$1.49

$

In Stock, only 4 left!

0

21

Echo A320000770

COVER, EXHAUST

Note: 62104-32321

$11.99

$

Usually ships in 2-4 days

0

22

Echo A575000400

CUSHION

Note: 20011-35110

$26.99

$

Usually ships in 2-4 days

0

23

Echo A575000410

CONNECTOR, CAP

Note: 70012-35130

$18.99

$

Usually ships in 2-4 days

0

24

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

Note: 11022-05200

$0.99

$

In Stock, Qty 20+

0

25

Echo A575000420

CLAMP - A

Note: 20011-35141

$4.99

$

Usually ships in 2-4 days

0

26

Echo A575000430

CLAMP - B

Note: 20011-35151

$4.49

$

Usually ships in 2-4 days

0

27

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 20+

0

28

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, only 4 left!

0

29

Echo 90060000005

WASHER - 5

Note: 01610-05080

$0.99

$

In Stock, Qty 20+

0

30

Echo A175000180

GUARD, FUEL TANK

Note: 70200-33112

$11.99

$

Usually ships in 2-4 days

0

31

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$0.99

$

In Stock, Qty 20+

0

32

Echo X504002570

LABEL - MODEL

Note: 62112-91320

$

$

Currently unavailable

33

Echo A045000340

SWITCH, IGNITION

Note: 72930-14210

$11.99

$

Usually ships in 2-4 days

0

34

Echo A439000510

BRACKET, SWITCH

Note: 70014-74120

$2.49

$

Usually ships in 2-4 days

0
