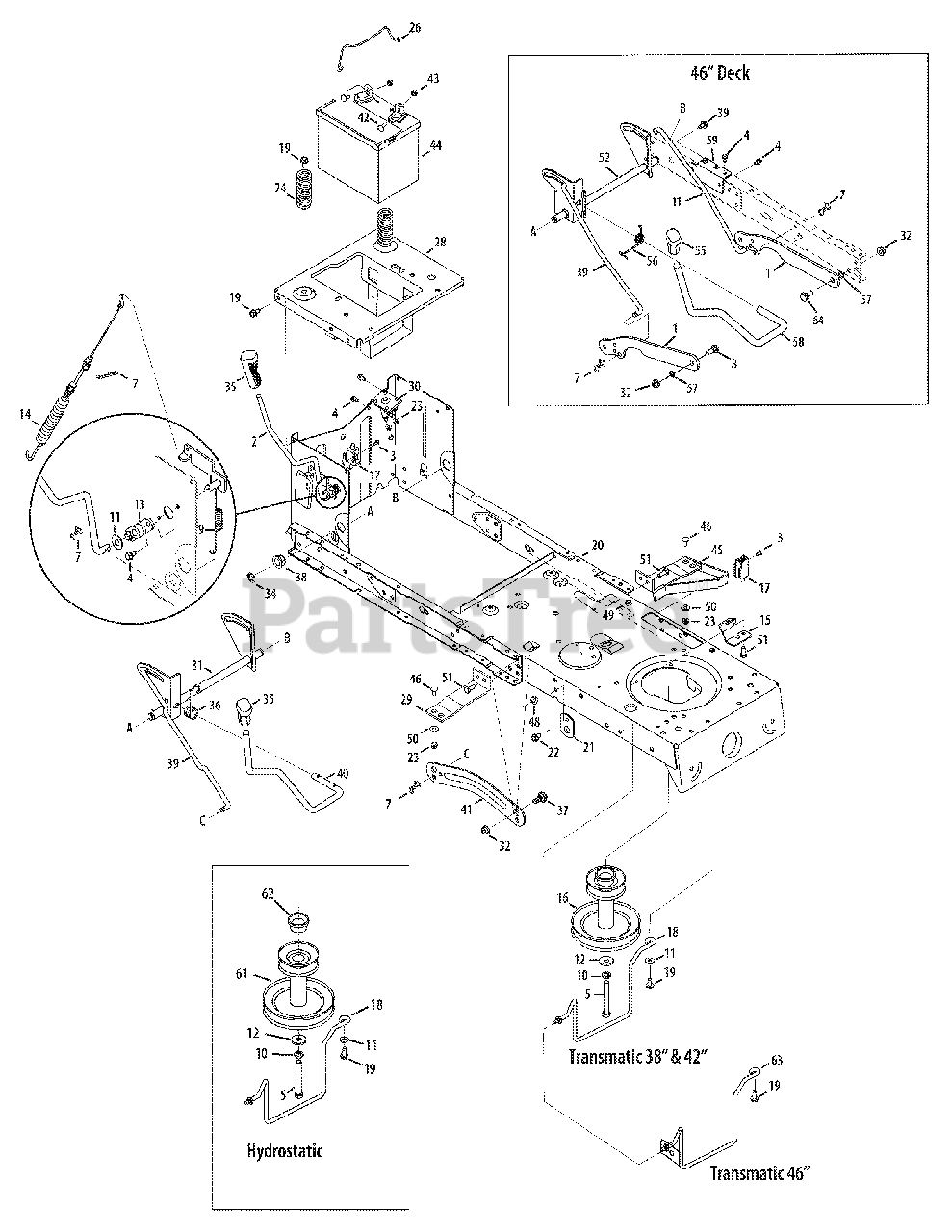

C 76 GF (13AC76GF897) - Columbia 38" Lawn Tractor (2010) Frame & PTO Parts Diagram

38" Lawn Tractor

Frame & PTO Parts Diagram

  • Title

1

White Outdoor 783-0678C-0637

Deck Lift Link (46")

Note: Not used in this application

$29.99

$

In Stock, Qty 9

0

2

White Outdoor 647-04096-0637

PTO Handle
(Superseded to 647-04096A-0637)

$41.99

$

In Stock, Qty 5

0

3

White Outdoor 738-04237A

Shoulder Scr #10-16 x .50" Lg.

$6.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-04608

Hex Hd. Cap Scr. 7/16-20 x 3.25 Gr. 5 (38/42")

$6.99

$

In Stock, Qty 6

0

6

White Outdoor 783-05389-0637

Frame Brace Bracket
(Superseded to 783-05389A-0637)

$8.49

$

Usually ships in 3-6 days

0

7

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

8

White Outdoor 738-0380

Shoulder Screw .5 x .270 : 3/8-16

$7.99

$

In Stock, Qty 13

0

9

White Outdoor 732-04276A

Extension Spring

$9.99

$

In Stock, Qty 17

0

10

White Outdoor 736-0171

Lockwasher 7/16 ID

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-0300

Flat Washer .385 ID x .87 OD x .06

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 20+

0

13

White Outdoor 741-04119

PTO Bearing
(Superseded to 741-04119A)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 746-04173B

Deck Engagement Cable
(Superseded to 946-04173E)

$59.99

$

In Stock, Qty 20+

0

15

White Outdoor 783-04753-0637

Frame Support Bracket

$79.99

$

Usually ships in 3-6 days

0

16

White Outdoor 756-04196A

Engine Pulley 3.39 x 6.12 dia. (38/42")

$90.99

$

In Stock, Qty 7

0

17

White Outdoor 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

18

White Outdoor 747-04332A

Belt Keeper Rod (38" Deck)

$48.99

$

In Stock, Qty 9

0

19

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 683-04450-0606

Frame

$

$

Not available

21

White Outdoor 783-04536B-0637

Pedal Support Bracket

$6.49

$

Usually ships in 3-6 days

0

22

White Outdoor 710-0604A

Hex Wash HD TT Scr 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 732-04035

Compression Spring 1.28 x 3.125

$10.99

$

In Stock, Qty 15

0

26

White Outdoor 683-04448-0637

Battery Hold Down Rod

$10.99

$

In Stock, only 4 left!

0

28

White Outdoor 783-04548C-0637

Seat Frame Bracket
(Superseded to 783-04548D-0637)

$58.99

$

Usually ships in 3-6 days

0

29

White Outdoor 783-04637-0637

Running Board Bracket

$16.99

$

Usually ships in 3-6 days

0

30

White Outdoor 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

31

White Outdoor 683-04155A-0637

Lift Shaft (38" & 42")

$55.99

$

In Stock, only 1 left!

0

32

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 716-0106A

"E" Ring .625 Dia.

$5.49

$

In Stock, Qty 15

0

35

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 4 left!

0

36

White Outdoor 732-04225

Torsion Spring (38" & 42")

$12.99

$

In Stock, only 1 left!

0

37

White Outdoor 738-04130

Shoulder Screw .625 x .175, 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 13

0

38

White Outdoor 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 20+

0

39

White Outdoor 747-04393

Lift Rod

$23.99

$

In Stock, Qty 8

0

40

White Outdoor 747-04282

Deck Lift Handle(38" & 42")

$35.99

$

Usually ships in 3-6 days

0

41

White Outdoor 783-04494C-0637

Deck Lift Arm RH

$21.99

$

In Stock, only 3 left!

0

41

White Outdoor 783-04711C-0637

Deck Lift Arm LH

$24.99

$

In Stock, only 1 left!

0

42

White Outdoor 710-04666

Hex Flg. Scr. 1/4-20 x .75 Gr. 5

$6.99

$

In Stock, Qty 7

0

43

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

44

White Outdoor 925-1707D

Battery 245 CCA (Dry)

$

$

Not available

45

White Outdoor 683-04195-0637

Support Bracket Ass'y

$42.99

$

Usually ships in 3-6 days

0

46

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 712-04063

Hex L-Flg Nut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 912-0429

Hex L-Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 736-0173

Flat Washer .28 x .74 x .063

$4.49

$

In Stock, Qty 10

0

51

White Outdoor 710-3008

Hex Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 683-04334-0637

Lift Shaft (46" only)

Note: Not used in this application

$54.99

$

In Stock, only 3 left!

0

55

White Outdoor 720-0298

Grip

$43.99

$

Usually ships in 3-6 days

0

56

White Outdoor 732-04438

Torsion Spring (46")

Note: Not used in this application

$10.99

$

Usually ships in 3-6 days

0

57

White Outdoor 936-0140

Flat Washer .395 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

58

White Outdoor 747-04653

Deck Lift Handle (46")
(Superseded to 747-04653A)

Note: Not used in this application

$45.99

$

In Stock, only 3 left!

0

59

White Outdoor 783-05389-0637

Brace Bracket
(Superseded to 783-05389A-0637)

$8.49

$

Usually ships in 3-6 days

0

61

White Outdoor 956-04067A

Engine Pulley 3.39 x 6.12 dia. (38/42")
(Superseded to 956-04067B)

Note: Not used in this application

$81.99

$

In Stock, only 3 left!

0

62

White Outdoor 750-0956

Spacer 1.0 x 1.4 x .825

Note: Not used in this application

$19.99

$

In Stock, Qty 5

0

63

White Outdoor 683-04414-0637

Belt Keeper Rod (46" Deck)

Note: Not used in this application

$25.99

$

In Stock, Qty 10

0
