C950-52844-1 (1695771) - Craftsman 22" Snow Thrower, Canada (2009) Top Cover Parts Diagram

22" Snow Thrower, Canada

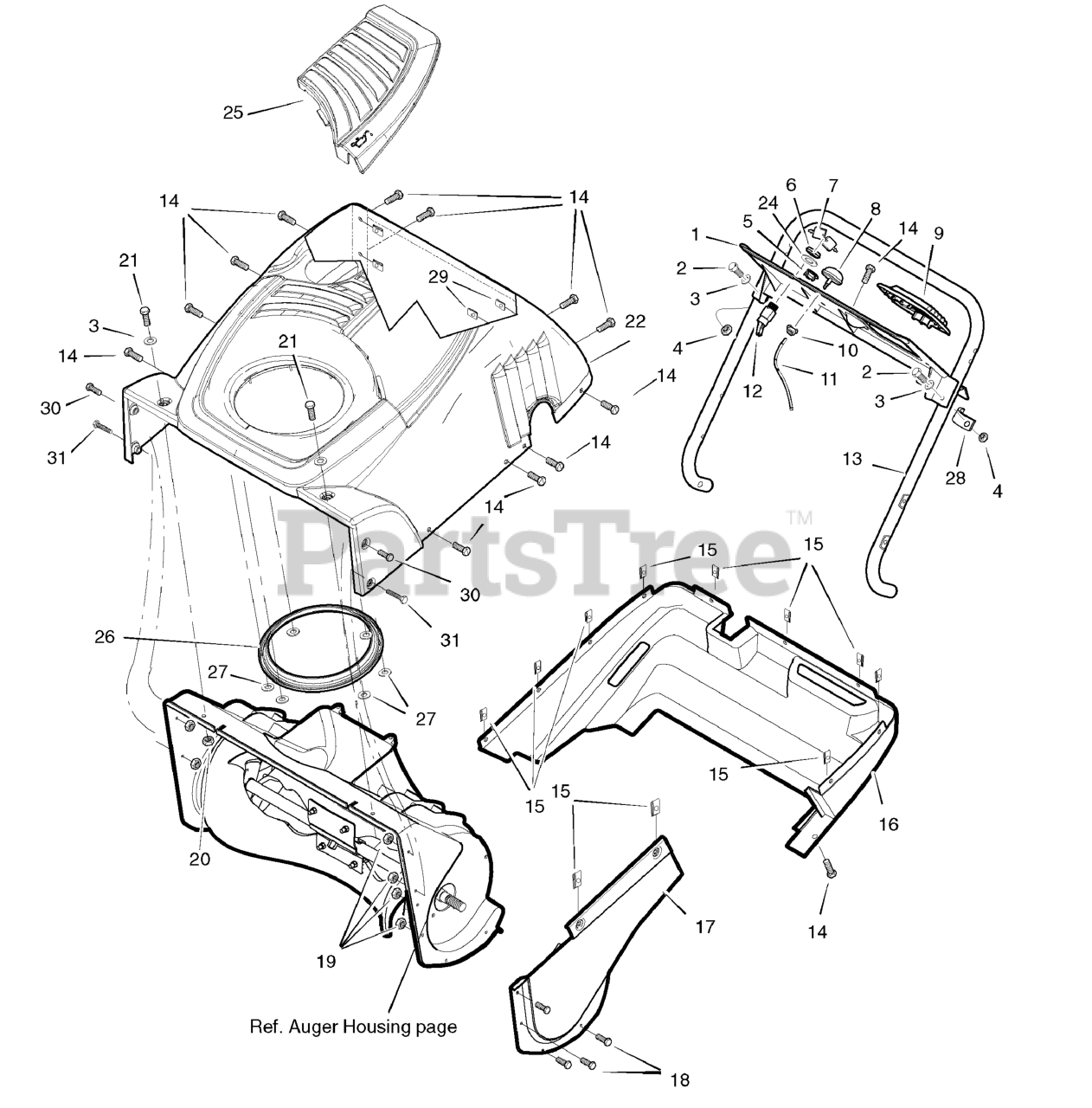

Top Cover Parts Diagram

  • Title

1

Murray 1740006MA

Panel, Control

$73.99

$

Usually ships in 2-12 days

0

2

Murray 1741503MA

Screw 1/4-20 x 1.62

$3.99

$

Usually ships in 2-12 days

0

3

Murray 71067MA

Washer

$4.49

$

In Stock, only 1 left!

0

4

Murray 73826MA

Nut,1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

5

Murray 1501874MA

Bushing, Chute Crank

$4.99

$

In Stock, only 1 left!

0

6

Murray 300193MA

Nut, 5/8-32

$5.49

$

Usually ships in 2-12 days

0

7

Murray 691959

SET, Key

$7.99

$

In Stock, Qty 9

0

8

Murray 394281S

Bulb, Fuel Primer

$16.99

$

Usually ships in 2-12 days

0

9

Murray 1501878MA

Panel, Cover Access

$14.99

$

Usually ships in 2-12 days

0

10

Murray 271172MA

Nut, Keps 1/4-20

$4.49

$

Usually ships in 2-12 days

0

11

Murray 335507MA

Hose, Primer 9.5"

$7.99

$

Usually ships in 2-12 days

0

12

Murray 56992MA

Switch, Ignition

$14.99

$

Usually ships in 2-12 days

0

13

Murray 1741982HYP

Handle, Lower

$87.99

$

Usually ships in 2-12 days

0

14

Murray 1740053MA

Screw 1/4-14 x .75

$3.99

$

Usually ships in 2-12 days

0

15

Murray 578109MA

J-Nut 1/4-10

$6.49

$

In Stock, Qty 8

0

16

Murray 1740004MA

Cover, Bottom

$165.99

$

Usually ships in 2-12 days

0

17

Murray 1740005MA

Cover, Belt

$

$

Not available

18

Murray 1740051MA

Screw 10-24 x .5

$3.99

$

Usually ships in 2-12 days

0

19

Murray 1740052MA

Locknut, Hex 10 -24

$3.99

$

Usually ships in 2-12 days

0

20

Murray 1740056MA

Locknut, Hex 1/4-20

$4.49

$

Usually ships in 2-12 days

0

21

Murray 1740425MA

Screw 1/4-20 x .63

$4.49

$

Usually ships in 2-12 days

0

22

Murray 1741758YP

Cover, Top

$222.99

$

Usually ships in 2-12 days

0

24

Murray 313683MA

Washer

$4.49

$

Usually ships in 2-12 days

0

25

Murray 1741759YP

Cover, Oil Access

$37.99

$

Usually ships in 2-12 days

0

26

Murray 1501995MA

Gasket, Chute Ring

$21.99

$

Usually ships in 2-12 days

0

27

Murray 028X85MA

Push Nut

$4.99

$

Usually ships in 2-12 days

0

28

Murray 583435MA

Clamp, Cable

$5.49

$

Usually ships in 2-12 days

0

29

Murray 1740407MA

J-Nut, 1/4-10 x .70

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1740426MA

Screw, 10-24 x .72

$3.49

$

Usually ships in 2-12 days

0

31

Murray 1740427MA

Screw, 10-24 x .95

$3.99

$

Usually ships in 2-12 days

0
