C950-60472-0 - Craftsman 46" Lawn Tractor, Canada (2004) (Sears) Mower Housing Suspension Parts Diagram

46" Lawn Tractor, Canada

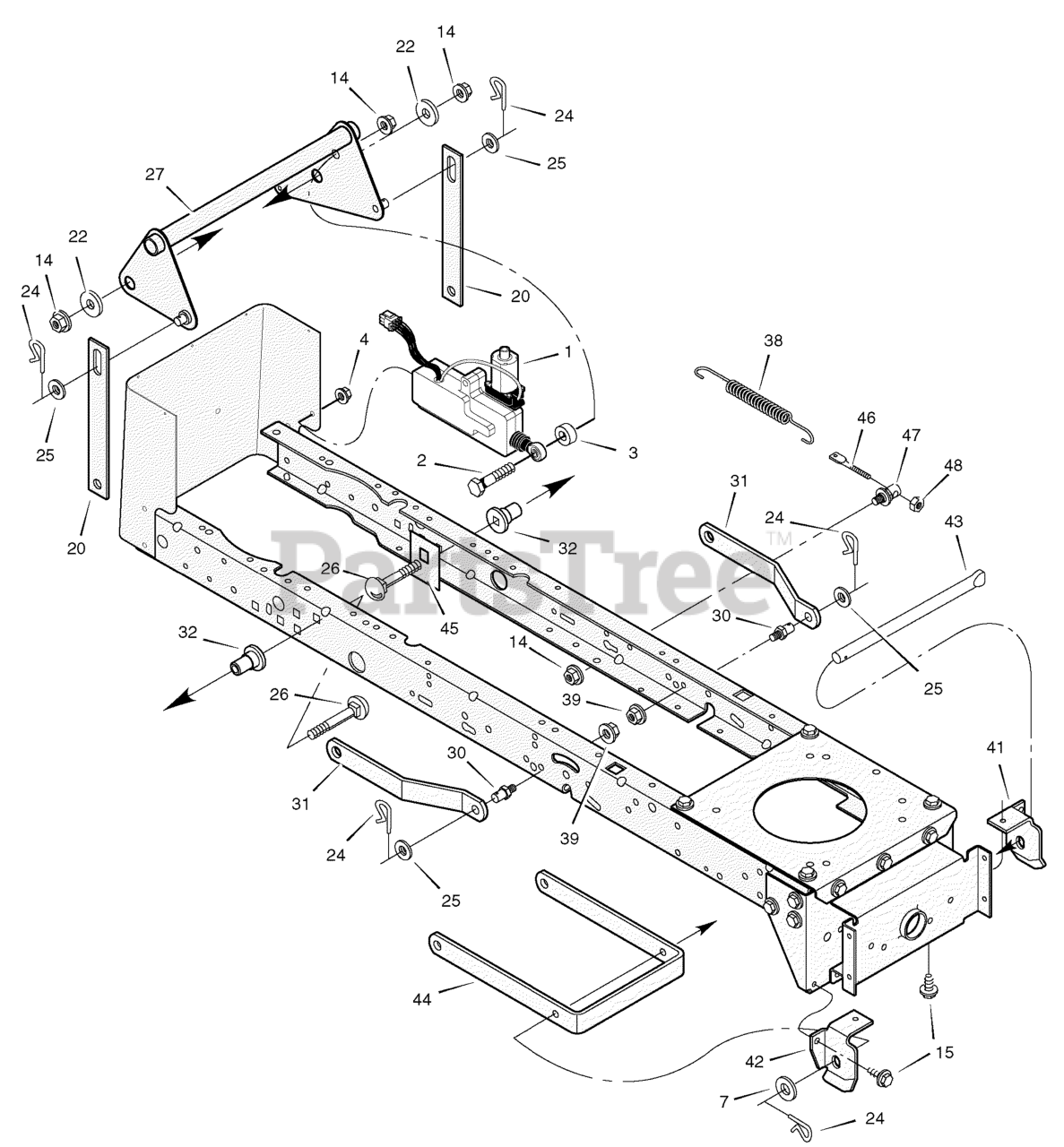

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 1001901

Assembly, Deck Lift

$296.99

$

Usually ships in 2-12 days

0

2

Murray 01X111

Bolt, Hex
(Superseded to 01X111MA)

$4.49

$

In Stock, only 1 left!

0

3

Murray 1001907Z

Spacer

$

$

Currently unavailable

4

Murray 015X89

Nut
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 17X103

Washer
(Superseded to 17X103MA)

$4.99

$

In Stock, Qty 7

0

14

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 17

0

15

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

20

Murray 690212E701

Link, Lift

$37.99

$

Usually ships in 2-12 days

0

22

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

24

Murray 0031X4

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, only 2 left!

0

26

Murray 002X85

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

27

Murray 1001111E701MA

Lever Assembly, Lift

$112.99

$

Usually ships in 2-12 days

0

30

Murray 94067

Pin

$5.99

$

Usually ships in 2-12 days

0

31

Murray 094055E701

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

32

Murray 690151

Spacer, Lifter
(Superseded to 690151MA)

$6.99

$

Usually ships in 2-12 days

0

38

Murray 165X133

Spring

$20.99

$

Usually ships in 2-12 days

0

39

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

41

Murray 094027E701

Hanger, Left Deck

$22.99

$

Usually ships in 2-12 days

0

42

Murray 094026E701

Hanger, Right Deck

$22.99

$

In Stock, only 1 left!

0

43

Murray 094158ZMA

Rod, Hanger

$28.99

$

In Stock, only 1 left!

0

44

Murray 690539E701

Bracket, Suspension

$54.99

$

Usually ships in 2-12 days

0

45

Murray 1001098E700

Plate, Stiffening

$

$

Currently unavailable

46

Murray 094042ZMA

Stud, Spring Mount

$4.49

$

Usually ships in 2-12 days

0

47

Murray 690182

Stud, Swivel

$11.99

$

Usually ships in 2-12 days

0

48

Murray 015X84

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 17

0
