CA-631401 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

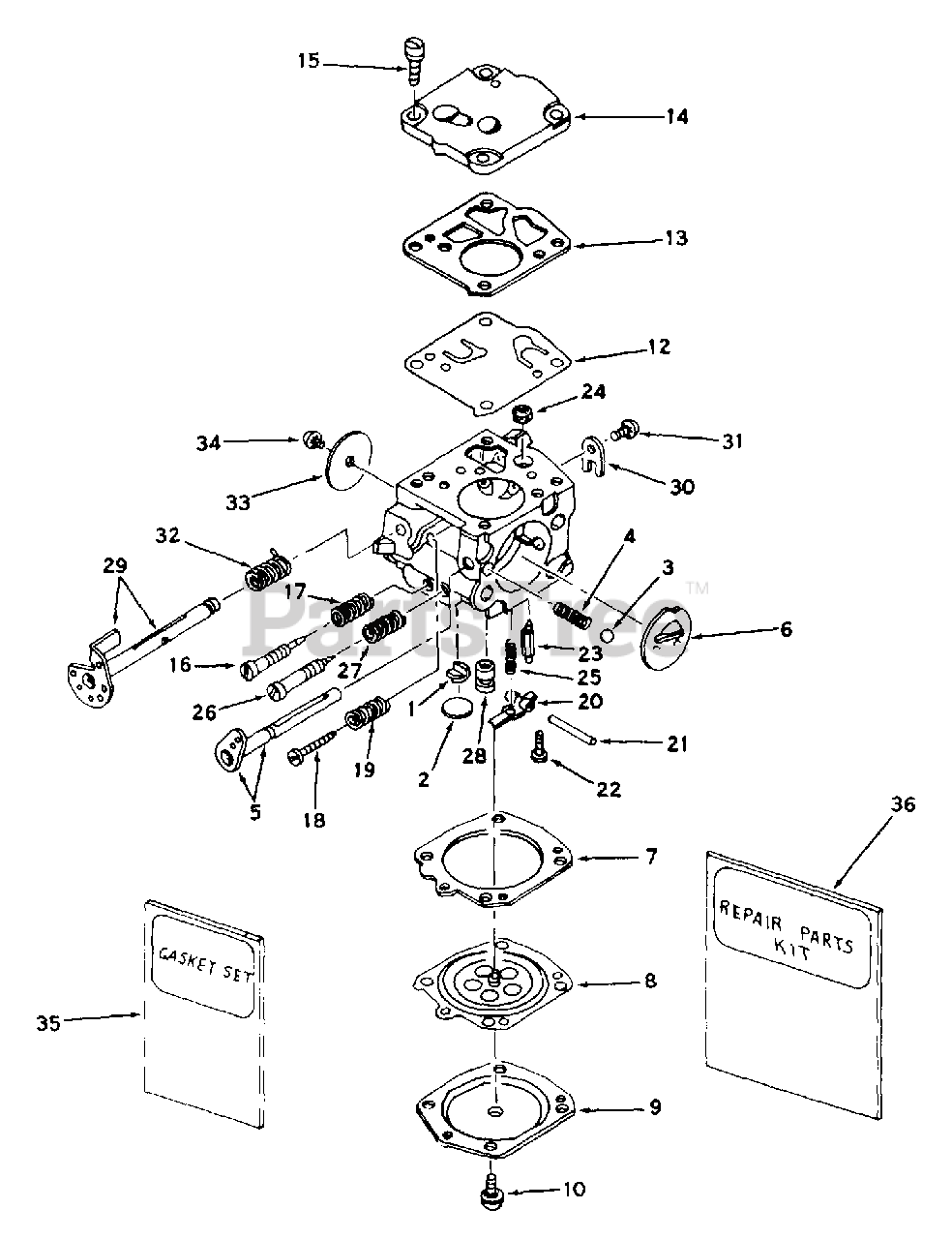

Carburetor Parts Diagram

  • Title

1

Tecumseh 631405

"Reducer, Body channel

$

$

Currently unavailable

2

Tecumseh 631408

Plug, Welch

$

$

Currently unavailable

3

Tecumseh 631406

Ball, Choke friction

$

$

Currently unavailable

4

Tecumseh 630255

Spring, Choke friction

$

$

Currently unavailable

5

Tecumseh 631427

Shaft & Lever, Choke

$

$

Currently unavailable

6

Tecumseh 631415

Shutter, Choke

$

$

Currently unavailable

7

Tecumseh 631411

Gasket, Diaphragm

$

$

Currently unavailable

8

Tecumseh 631418

Diaphragm

$

$

Currently unavailable

9

Tecumseh 631412

Cover, Diaphragm

$

$

Currently unavailable

10

Tecumseh 630269

Screw, retaining

$

$

Currently unavailable

12

Tecumseh 631423

Diaphragm, Fuel pump

$

$

Currently unavailable

13

Tecumseh 631413

Gasket, Fuel pump

$

$

Currently unavailable

14

Tecumseh 631409

Cover, Fuel pump

$

$

Currently unavailable

15

Tecumseh 631428

Screw, Retaining

$

$

Currently unavailable

16

Tecumseh 631425

Screw, Idle mixture

$

$

Currently unavailable

17

Tecumseh 631424

Spring, Idle mixture screw

$

$

Currently unavailable

18

Tecumseh 631417

Screw, Idle speed

$

$

Currently unavailable

19

Tecumseh 630633

Spring, Idle speed screw

$

$

Currently unavailable

20

Tecumseh 631420

Lever, inlet control

$

$

Currently unavailable

21

Tecumseh 631410

Pin, Inlet pinion

$

$

Currently unavailable

22

Tecumseh 631416

Screw, Retaining

$

$

Currently unavailable

23

Tecumseh 631421

Needle, Inlet

$

$

Currently unavailable

24

Tecumseh 631407

Screen, Inlet

$

$

Currently unavailable

25

Tecumseh 630803

Spring, Inlet tension

$

$

Currently unavailable

26

Tecumseh 631426

Screw, High speed mixture

$

$

Currently unavailable

27

Tecumseh 630253

Spring, High speed mixture screw

$

$

Currently unavailable

28

Tecumseh 631429

Check Valve, Nozzle

$

$

Currently unavailable

29

Tecumseh 631419

Shaft & Lever, Throttle

$

$

Currently unavailable

30

Tecumseh 631414

Clip, Throttle shaft

$

$

Currently unavailable

31

Tecumseh 630700

Screw, Retaining

$

$

Currently unavailable

32

Tecumseh 631422

Spring, Throttle shaft retainer

$

$

Currently unavailable

33

Tecumseh 630180

Shutter, Throttle

$

$

Currently unavailable

34

Tecumseh 630700

Screw, Throttle shutter

$

$

Currently unavailable

35

Tecumseh 631430

Gasket Set

$

$

Currently unavailable

36

Tecumseh 631431

Repair Parts Kit

$

$

Currently unavailable
