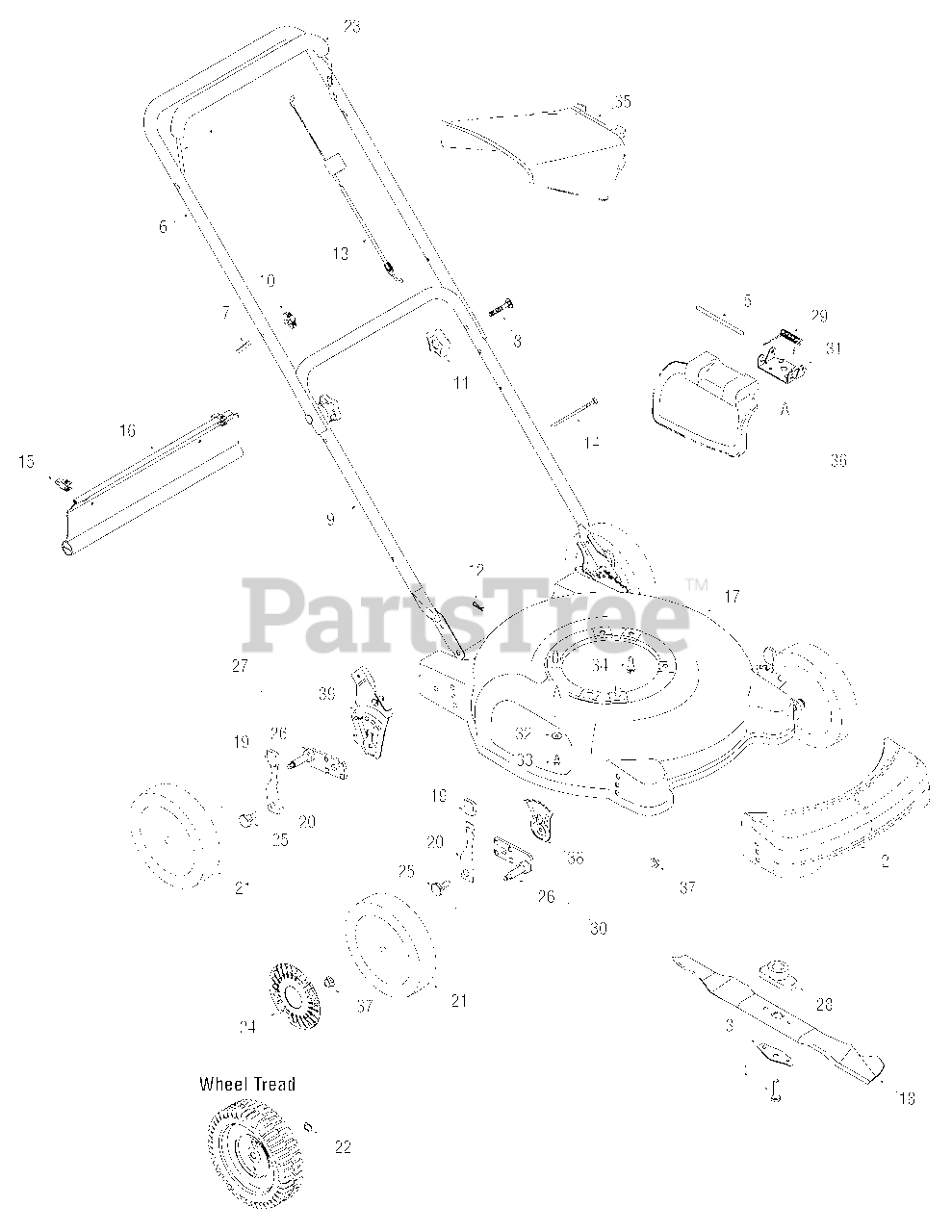

CC 109 (11A-109Q710) - Cub Cadet Walk-Behind Mower (2007) General Assembly Mower Parts Diagram

Walk-Behind Mower

General Assembly Mower Parts Diagram

  • Title

1

Cub Cadet 747-1161A

Blade Control

Variations

Cub Cadet 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 20+

0

$13.99

$

In Stock, Qty 20+

0

2

Cub Cadet 731-1949A

Front Cover
(Superseded to 931-1949B)

$

$

Not available

3

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1044

Hex Bolt

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 749-1092A

Upper Handle

Variations

Cub Cadet 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 4 left!

0

Cub Cadet 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 13

0

8

Cub Cadet 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

9

Cub Cadet 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Cub Cadet 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

10

Cub Cadet 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 746-0957

Control Cable 37.25"
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

15

Cub Cadet 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

16

Cub Cadet 731-04019

Trail Shield

$21.99

$

In Stock, Qty 17

0

17

Cub Cadet 682-0139

20" Cutting Deck Assembly

Variations

Cub Cadet 682-0139-0606

DECK ASM- 20" - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 682-0139-0498

USE 682-0139-0716 DECK ASM- 2 - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-0139-0629

DECK ASM- 20" - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 682-0139-0650

DECK ASM- 20" - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-0139-0662

DECK ASM- 20" - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-0139-0668

DECK ASM- 20" - MOSS GREEN (0668)

$

$

Not available

Cub Cadet 682-0139-0689

DECK ASM- 20" - POLO GREEN (0689)

$

$

Not available

Cub Cadet 682-0139-0691

DECK ASM- 20" - BLACK JACK (0691)

$

$

Not available

Cub Cadet 682-0139-0709

DECK ASM- 20" - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 682-0139-0716

DECK ASM- 20" - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 682-0139-4021

DECK ASM- 20" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

18

Cub Cadet 742-0740

20" Mulching Blade
(Superseded to 942-0740)

$23.99

$

In Stock, Qty 8

0

19

Cub Cadet 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 2 left!

0

20

Cub Cadet 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

21

Cub Cadet 734-2008A

Wheel Assembly 8 x 2.125

$58.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

23

Cub Cadet 731-2626

Deluxe Bail Cover

$11.99

$

In Stock, only 2 left!

0

24

Cub Cadet 731-0982A

Hubcap: Radial Spoke Gray
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 20+

0

25

Cub Cadet 738-0507B

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 687-02077A

Pivot Arm Assembly - use position RH Front
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

26

Cub Cadet 687-02077A

Pivot Arm Assembly - use position LH Rear
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

26

Cub Cadet 687-02076A

Pivot Arm Assembly - use position LH Front
(Superseded to 987-02076A)

$15.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 687-02076A

Pivot Arm Assembly - use position RH Rear
(Superseded to 987-02076A)

$15.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 687-02106

Handle Bracket Assembly RH
(Superseded to 987-02106A)

$52.99

$

In Stock, only 3 left!

0

27

Cub Cadet 687-02107

Handle Bracket Assembly LH
(Superseded to 987-02107A)

$45.99

$

In Stock, only 4 left!

0

28

Cub Cadet 748-04096

Blade Adapter

Note: use with GCV160AS3A engine, N-3 Type 3, 5/32 x 25mm

$22.99

$

In Stock, Qty 20+

0

28

Cub Cadet 753-0588

Blade Adapter Kit (for service)
(Superseded to 753-06315)

Note: includes 748-0376C adapter use with GCV160AS1A engine, N-1 Type 5, 5/32 x 7/8 in dia

$16.99

$

In Stock, Qty 7

0

29

Cub Cadet 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 687-02075A

Height Adjust. Assembly LH
(Superseded to 987-02075B)

$35.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 687-02074A

Height Adjust. Assembly RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 3 left!

0

31

Cub Cadet 782-7006

Mounting Bracket

Variations

Cub Cadet 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0270

Bell Washer

$3.99

$

In Stock, Qty 10

0

33

Cub Cadet 710-0599

Hex Washer Hd. TT Screw

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0654A

TT Sems Screw

$4.49

$

In Stock, only 4 left!

0

35

Cub Cadet 731-1409B

Chute Deflector

$28.99

$

In Stock, Qty 5

0

36

Cub Cadet 682-7002

Mulching Plug Assembly

$

$

Not available

37

Cub Cadet 712-04065

Hex Lock Nut

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 787-01290

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

39

Cub Cadet 687-02180

Handle Bracket - RH
(Superseded to 687-02180-0637)

Variations

Cub Cadet 687-02180-0637

Handle Bracket Assembly - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 687-02179

Handle Bracket - LH
(Superseded to 687-02179-0637)

Variations

Cub Cadet 687-02179-0637

Handle Bracket Assembly - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0
