CC 46 ES (12AE46K8209) - Cub Cadet Walk-Behind Mower (2012) Kohler XT173-3316 Crankcase Parts Diagram

Walk-Behind Mower

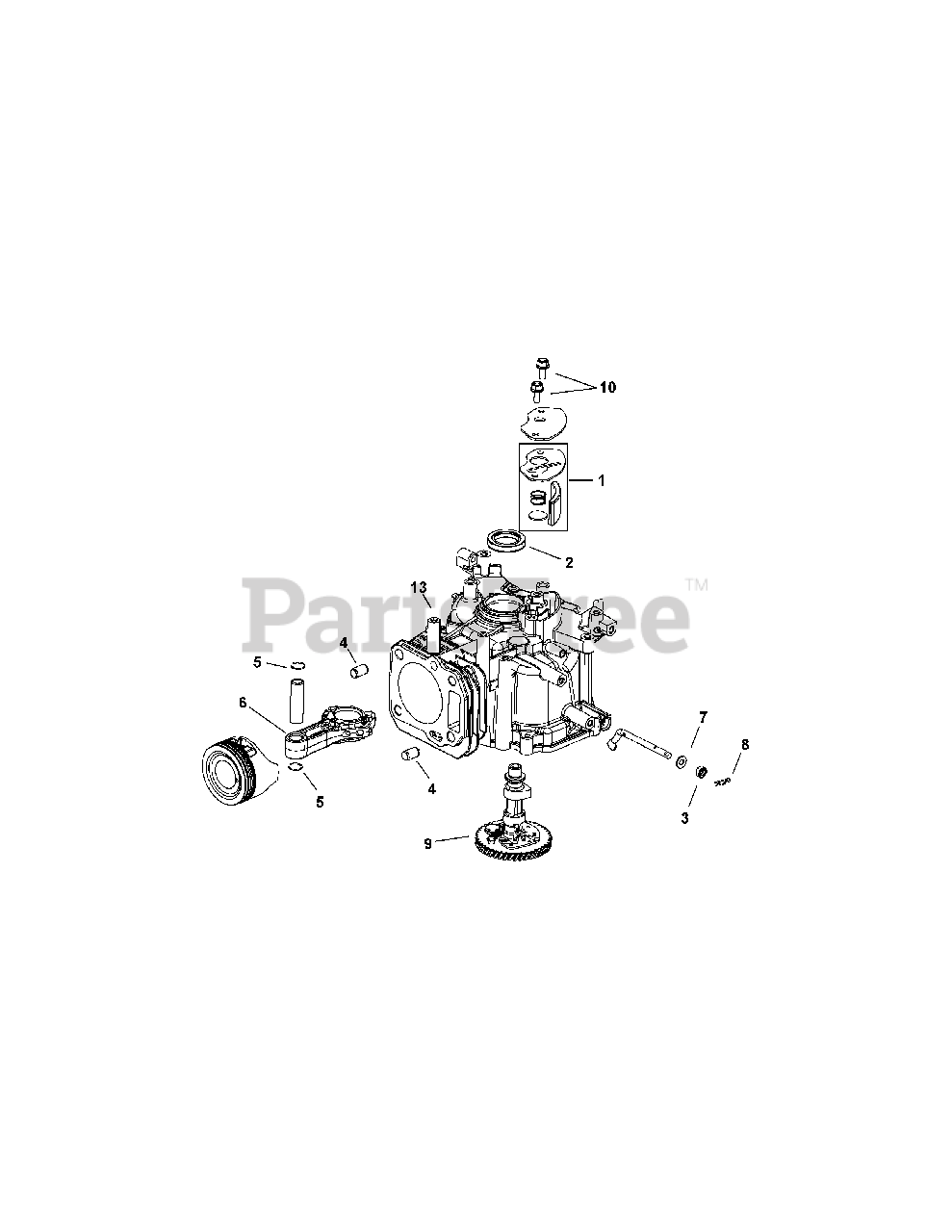

Kohler XT173-3316 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-14-050-01-S

Breather Filter Kit

Note: (Inc. Breather Cover Gasket, Breather Cover Spring, Breather Filter, Breather Reed)

$11.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-14-032-02-S

Oil Seal

$9.49

$

In Stock, Qty 5

0

3

Cub Cadet KH-14-032-04-S

Oil Seal

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-14-380-06-S

Cylinder Head Dowel
(Superseded to KH-14-380-13-S)

$1.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-14-018-03-S

Piston Pin Retainer

$3.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-14-067-01-S

Connecting Rod

$49.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-14-468-07-S

Flat Washer (Dia. 13mm O.D.)

$

$

Not available

8

Cub Cadet KH-14-154-01-S

Governor Shaft Clip

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-14-010-12-S

Camshaft Assembly

$

$

Not available

10

Cub Cadet KH-25-086-159-S

Hex Flange Screw, M6

$

$

Not available

11

Cub Cadet KH-14-561-09-S

Crankcase

$

$

Not available

Cub Cadet KH-14-874-02-S

Piston Kit

Note: Not shown

$67.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-17-108-01-S

Piston Ring Set

Note: Not shown

$39.99

$

Usually ships in 2-5 days

0
