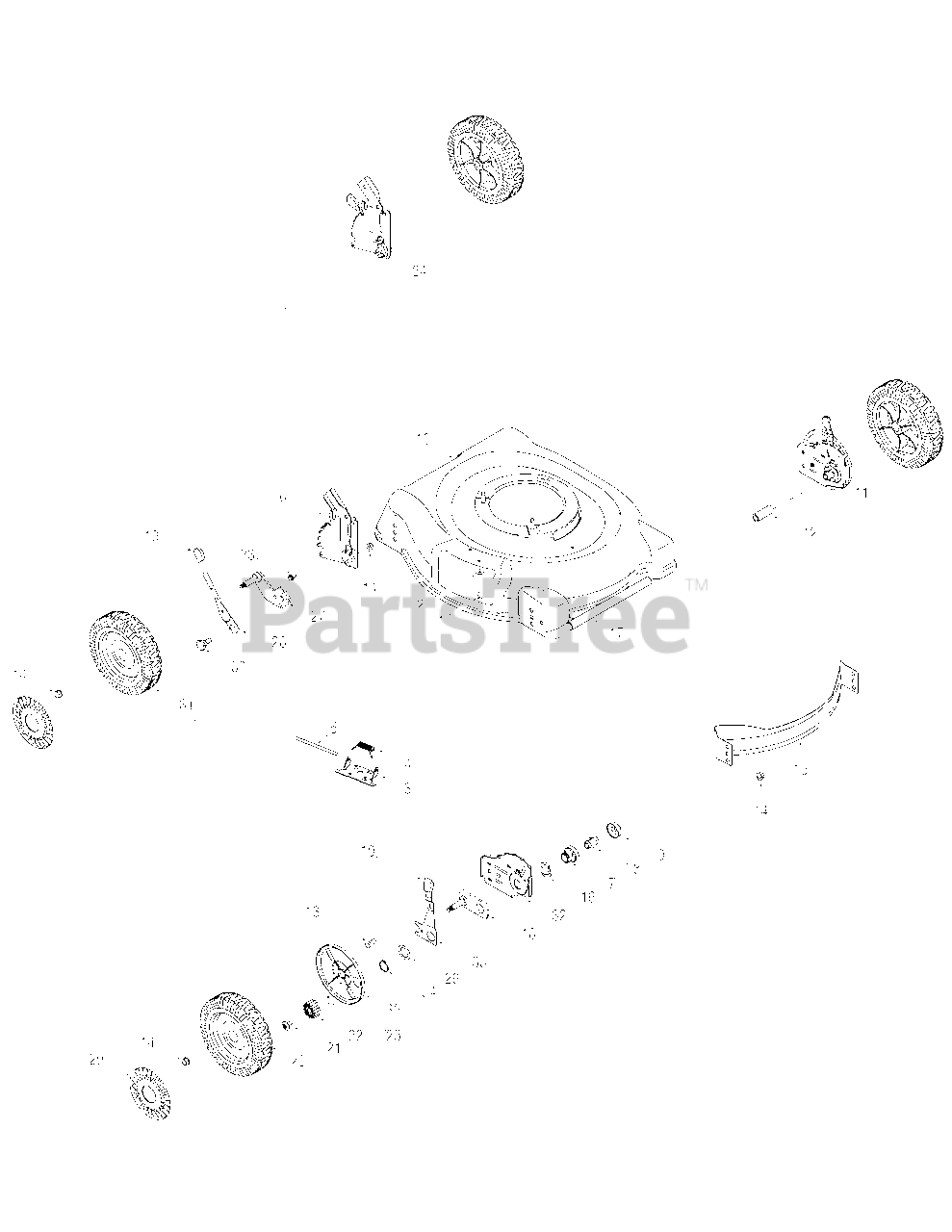

CC 469 (12AV469Q709) - Cub Cadet Walk-Behind Mower (2006) Wheels Parts Diagram

Walk-Behind Mower

Wheels Parts Diagram

  • Title

1

Cub Cadet 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 9

0

3

Cub Cadet 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 3 left!

0

4

Cub Cadet 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

5

Cub Cadet 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 787-01292

Handle Bracket - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 787-01291

Handle Bracket - LH
(Superseded to 753-05994)

Note: Not shown

$82.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

8

Cub Cadet 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

9

Cub Cadet 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 787-01278

21" Deck

Variations

Cub Cadet 787-01278-0606

DECK 21" - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 787-01278-0638

Mower Deck Kit, 21" Red - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 787-01278-0650

DECK 21" - RED METALLIC (0650)

$

$

Not available

Cub Cadet 787-01278-0665

DECK 21" - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 787-01278-0689

DECK 21" - POLO GREEN (0689)

$

$

Not available

Cub Cadet 787-01278-0691

DECK 21" - BLACK JACK (0691)

$

$

Not available

Cub Cadet 787-01278-4021

DECK 21" - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 787-01278-0709

DECK 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 787-01278-0716

DECK 21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 687-02194

Height Adjustment Assembly
(Superseded to 987-02194A)

Note: Not shown

$66.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 687-02193

Height Adjustment Assembly
(Superseded to 987-02193A)

$66.99

$

In Stock, only 1 left!

0

12

Cub Cadet 750-04405

Slev. Spacer 1.8" Lg.

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 17

0

14

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

16

Cub Cadet 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 750-04404

Sleeve Spacer 9.10" Lg.

$6.49

$

In Stock, only 1 left!

0

18

Cub Cadet 687-02044

Pivot Plate Assembly

$

$

Not available

19

Cub Cadet 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 2 left!

0

20

Cub Cadet 734-04223

Front Wheel w/ Fitting, 8 x 2.125
(Superseded to 734-04223A)

$55.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, Qty 8

0

22

Cub Cadet 717-1761

Gear 14T LH FWD

Note: Not shown

$13.99

$

In Stock, Qty 11

0

23

Cub Cadet 710-1652

TT Scr. w/Washer 1/4-20 x. .625

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 687-02068

Handle Bracket Assembly - RH
(Superseded to 753-05994)

Note: Not shown

$82.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 687-02069

Handle Bracket Assembly - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0474

Washer

$6.99

$

In Stock, only 4 left!

0

27

Cub Cadet 687-02071A

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$20.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 687-02070A

Pivot Arm Assembly - LH
(Superseded to 987-02070A)

Note: Not shown

$20.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-04175

Rear Spring Lever

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 20+

0

30

Cub Cadet 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 734-2008A

Rear Wheel, 8 x 2.125

$58.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 787-01298

Height Adjuster Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 787-01299

Height Adjuster Plate - LH
(Superseded to 787-01299A-0637)

Note: Not shown

$15.99

$

In Stock, only 1 left!

0

33

Cub Cadet 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

33

Cub Cadet 732-0707

Front Lever - LH

Note: Not shown

$15.99

$

In Stock, only 1 left!

0

34

Cub Cadet 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

35

Cub Cadet 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0
