CCW 36 (5900542) - Ferris Comfort Control DD 36" Walk-Behind Mower, 15hp Kawasaki 36" Mower Deck - Housing, Covers, Spindles & Blades - Side Discharge Parts Diagram

Comfort Control DD 36" Walk-Behind Mower, 15hp Kawasaki

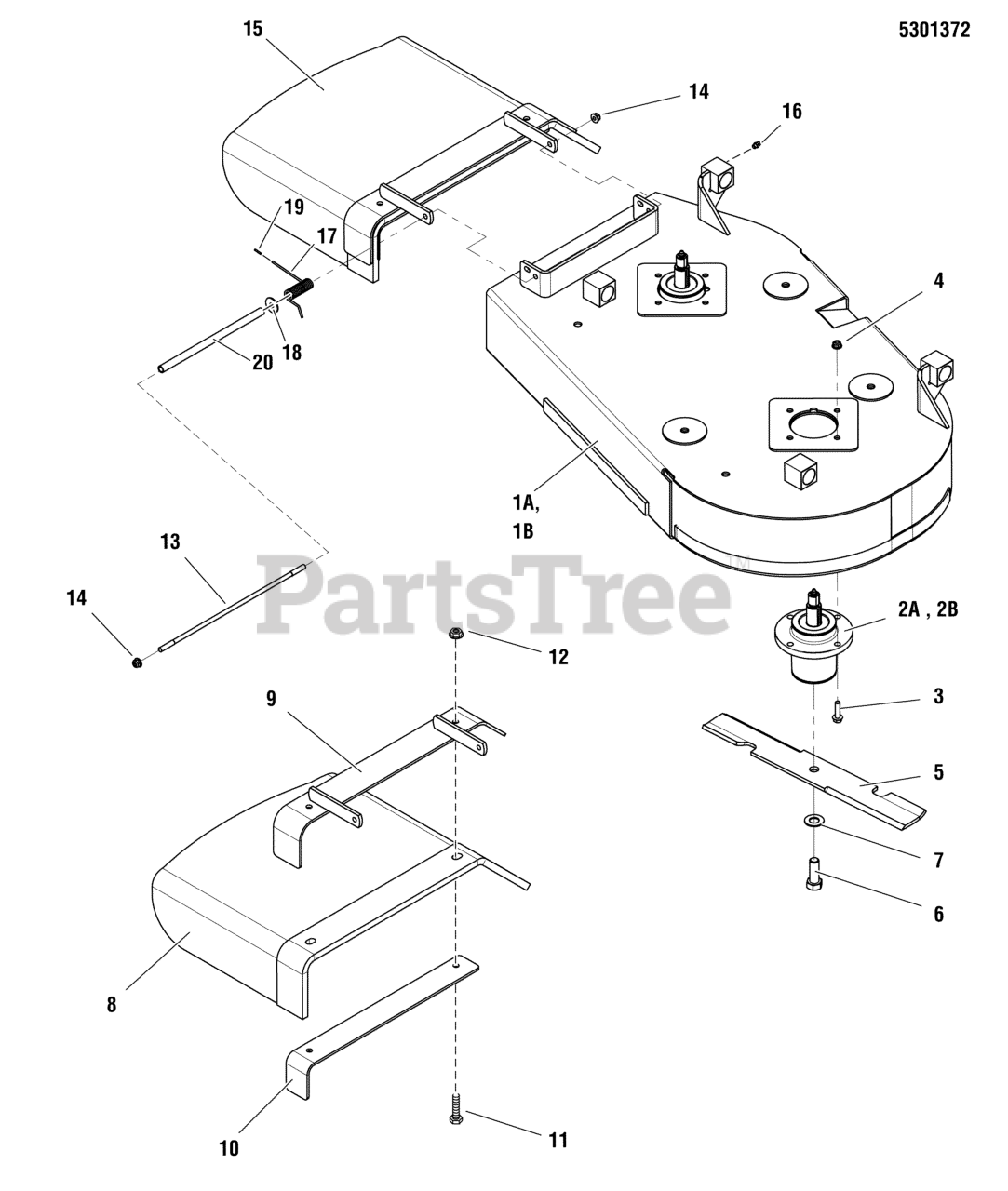

36" Mower Deck - Housing, Covers, Spindles & Blades - Side Discharge Parts Diagram

  • Title

1a

Ferris 5600330

DECK SHELL W/ DECALS, CCW1536SDCE

Note: (S/N: 2014185057 & Below)

$1282.99

$

Usually ships in 2-12 days

0

1b

Ferris 5600506

DECK SHELL W/ DECALS, CCW1636SDCE

Note: (S/N: 2014185059 & Above)

$1196.99

$

Usually ships in 2-12 days

0

2a

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (S/N: 2014185057 & Below) (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

2b

Ferris 5061096

SPINDLE ASSM, ALUMINUM, LONG SHAFT
(Superseded to 5061096SM)

Note: (S/N: 2014185059 & Above)

$243.99

$

Usually ships in 2-12 days

0

3

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, Qty 5

0

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5021227X2

BLADE, 18

Note: (SET OF TWO)

$53.99

$

Usually ships in 2-12 days

0

6

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 2 left!

0

8

Ferris 5402404

CHUTE, DISCHARGE, RUBBER, BENT (SV)
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

9

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

Usually ships in 2-12 days

0

10

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

11

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5042555

ROD, BRAKE LINKAGE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

14

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

15

Ferris 5600132

KIT, DISCHARGE CHUTE, 44/48/52

Note: (Includes Ref. Nos 8 - 10)

$

$

Not available

16

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.49

$

Usually ships in 2-12 days

0

18

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5061598

SPACER, TORSION SPRING, 9.63 LG

$

$

Not available
