CD 48 E (966659901) - Husqvarna 48" Mower Deck Assembly (2012-01) 48INCH CUTTING DECK Parts Diagram

48" Mower Deck Assembly

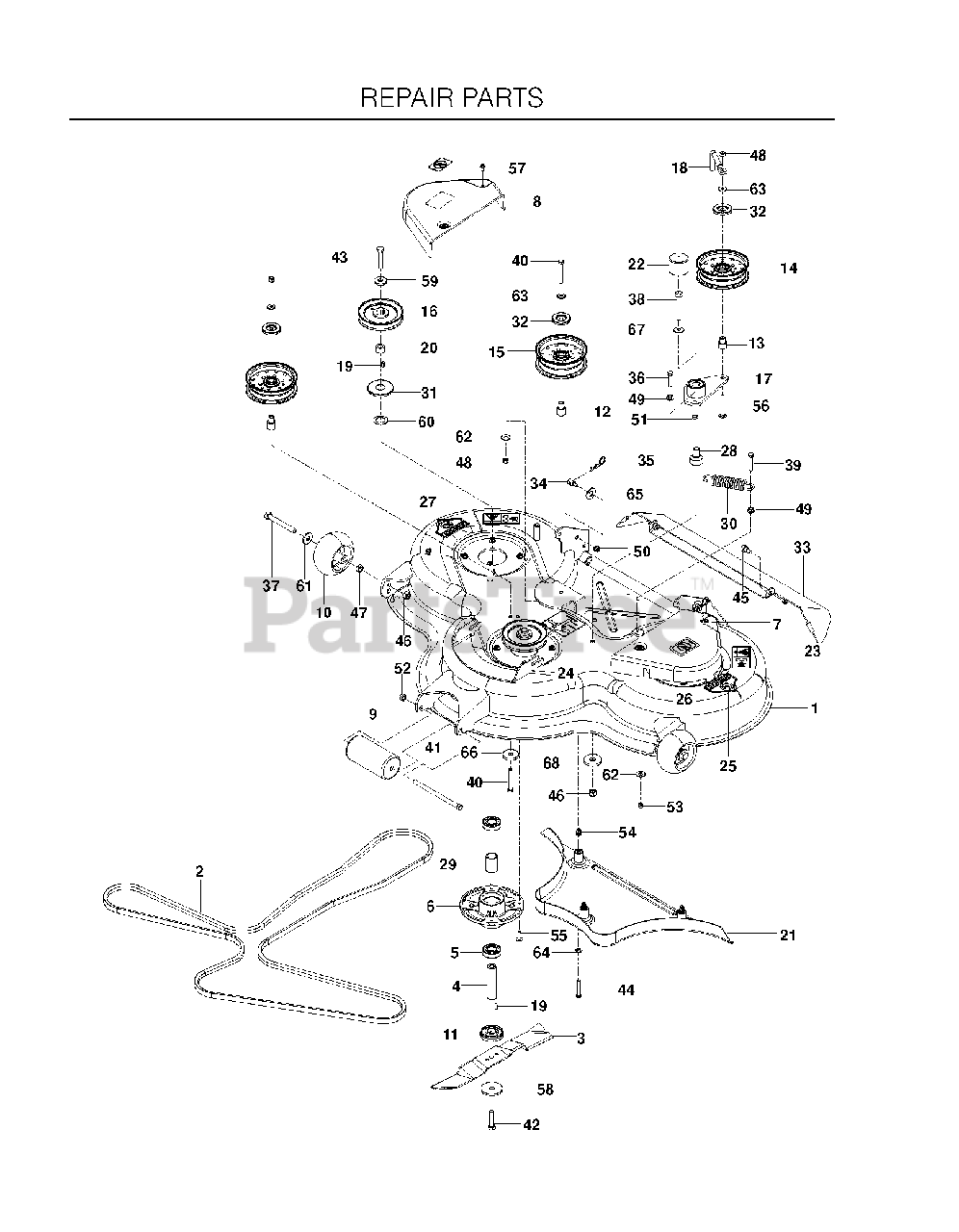

48INCH CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 516008402

Note: w / SAFETY DECALS

$

$

Currently unavailable

2

Husqvarna 539107095

BELT

$121.99

$

In Stock, only 2 left!

0

3

Husqvarna 535429401

BLADE
(Superseded to 535429410)

$28.99

$

In Stock, only 3 left!

0

4

Husqvarna 535428702

AXLE

$102.99

$

Usually ships in 3-10 days

0

5

Husqvarna 738220519

BALL BEARING

$32.99

$

In Stock, only 2 left!

0

6

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

7

Husqvarna 525579801

SHIELD.BELT.LT.48".COMBI-DECK

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 525579802

BELT.SHIELD.RT

$

$

Not available

9

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

10

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

11

Husqvarna 539132778

BUSHING, BLADE

$37.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

13

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 8

0

14

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

15

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 8

0

16

Husqvarna 539132895

PULLEY, 48

$60.99

$

In Stock, only 1 left!

0

17

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

18

Husqvarna 522629701

BELT KEEPER 5"

$

$

Not available

19

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 539112609

KEY RETAINER

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539132776

PLUG, MULCH, ORANGE

$

$

Not available

22

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

23

Husqvarna 539105744

DECAL, BELT DRIVE

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

25

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

27

Husqvarna 539112535

DECAL, 122

$

$

Not available

28

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 535428801

SPACER

$13.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

31

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

32

Husqvarna 510254501

DUST SHIELD

$

$

Not available

33

Husqvarna 516008502

GUARD, DISCHARGE, BLK

$

$

Not available

34

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

35

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

37

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.49

$

In Stock, Qty 20+

0

38

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$4.99

$

In Stock, Qty 12

0

39

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

40

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$4.99

$

In Stock, Qty 6

0

41

Husqvarna 539132470

HCS 7/16-14 X 7 GR5 ZD

$4.99

$

In Stock, only 1 left!

0

42

Husqvarna 539132480

HCS M12 X 1.75 X 50 GR8.8 ZD

$3.99

$

In Stock, only 1 left!

0

43

Husqvarna 539132479

HCS M12 X 1.75 X 60 GR5 ZD

$3.99

$

In Stock, only 1 left!

0

44

Husqvarna 539132494

HCS M8 X 1.25 X 50 GR8.8 ZD

$

$

Not available

45

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

In Stock, only 4 left!

0

46

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539990625

NUT 1/2 HEX JAM

$3.99

$

In Stock, Qty 15

0

48

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 10

0

51

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

53

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

54

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

58

Husqvarna 506792302

WASHER

$26.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539115550

WASHER-.533IDX1.37OD

$4.99

$

In Stock, only 2 left!

0

60

Husqvarna 539127099

WASHER-1.06IDX1.63ODX.06

$6.49

$

In Stock, only 1 left!

0

61

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

62

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

64

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

65

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

In Stock, only 2 left!

0

66

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

67

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

In Stock, only 3 left!

0

68

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available
