CH 45342 - Bear Cat 4.5" Chipper, 342cc (SN: A03570 - A09560) Idler - CH45342 & CH45390 Parts Diagram

4.5" Chipper, 342cc

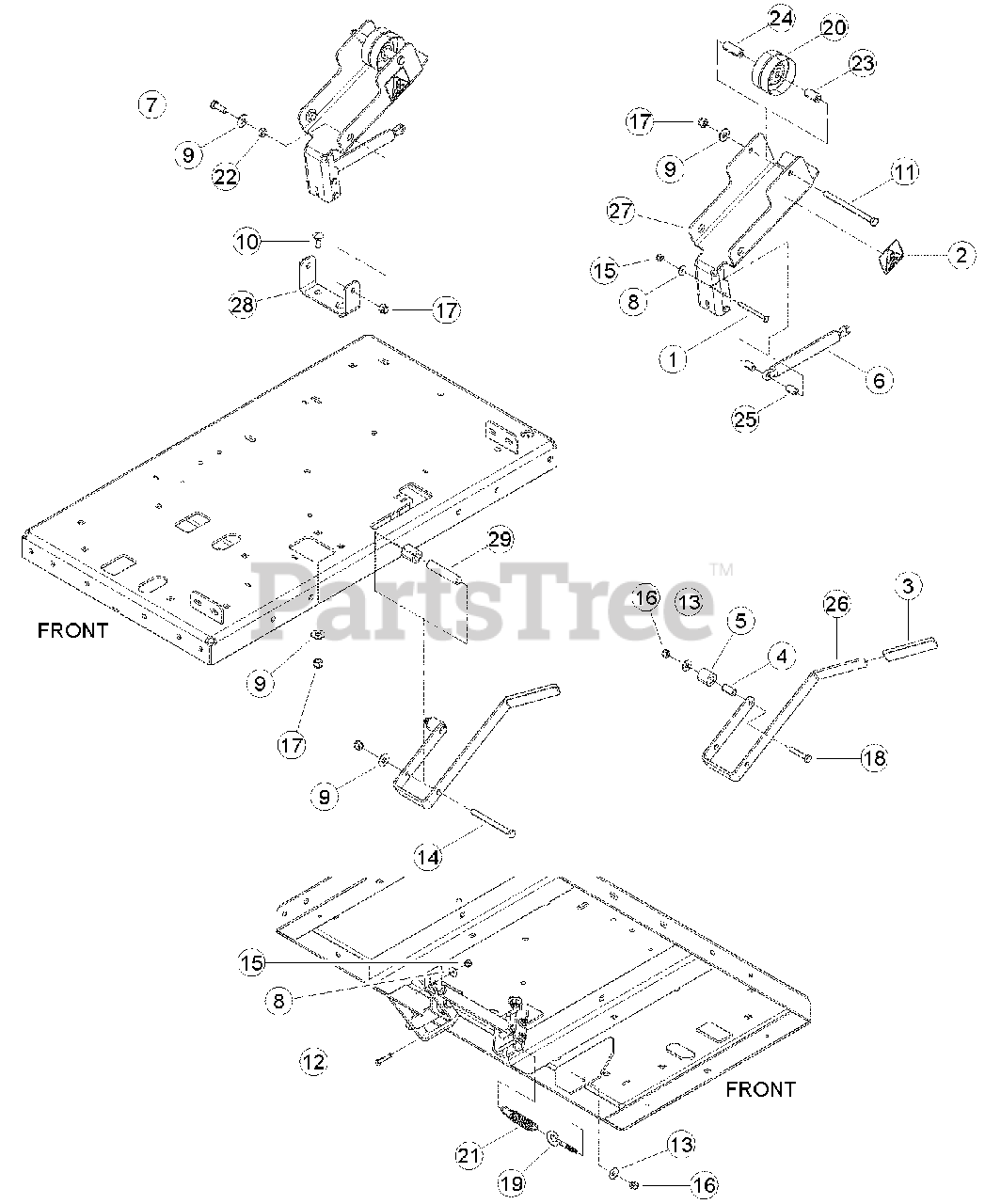

Idler - CH45342 & CH45390 Parts Diagram

  • Title
1

0103-0714-00

BOLT, 1/4 X 2-3/4 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14635-00

SPACER, 0.5 X 1.00

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14636-00

ROLLER, 0.5 X 1.00 X 1.00 NYLON

$12.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14776-00

DAMPER, IDLER

$123.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

8

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

9

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

10

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

11

15205

BOLT, 3/8 X 5 HEX HD GR5 ZP

$

$

Not available

12

15214

BOLT, 1/4 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

14

15272

BOLT, 3/8 X 4 HEX HD GR5 NC ZP

$

$

Not available

15

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

18

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HEX HD GR5 ZP

$

$

Not available

19

Bear Cat 15429

I-BOLT, 5/16-18 X 2 LONG ZP

$

$

Not available

20

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

21

Bear Cat 17692

SPRING, 3/4" OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

22

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

23

Bear Cat 70046

IDLER SPACER

$

$

Not available

24

Bear Cat 70694

SPACER .63 X 1.63

$15.99

$

Usually ships in 3-7 days

0

25

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

26

Bear Cat 74491-35

LEVER, CHIPPER ENGAGEMENT

$

$

Not available

27

74492-12

BRACKET, IDLER

$

$

Not available

28

Bear Cat 74493-12

ANCHOR, IDLER

$

$

Not available

29

Bear Cat 74579-00

SPACER, .63 X 3.060

$21.99

$

Usually ships in 3-7 days

0
