CH 9540 HM - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed (SN: H05219 & Above) Shields Parts Diagram

9" Chipper, 540cc PTO Hydraulic Feed

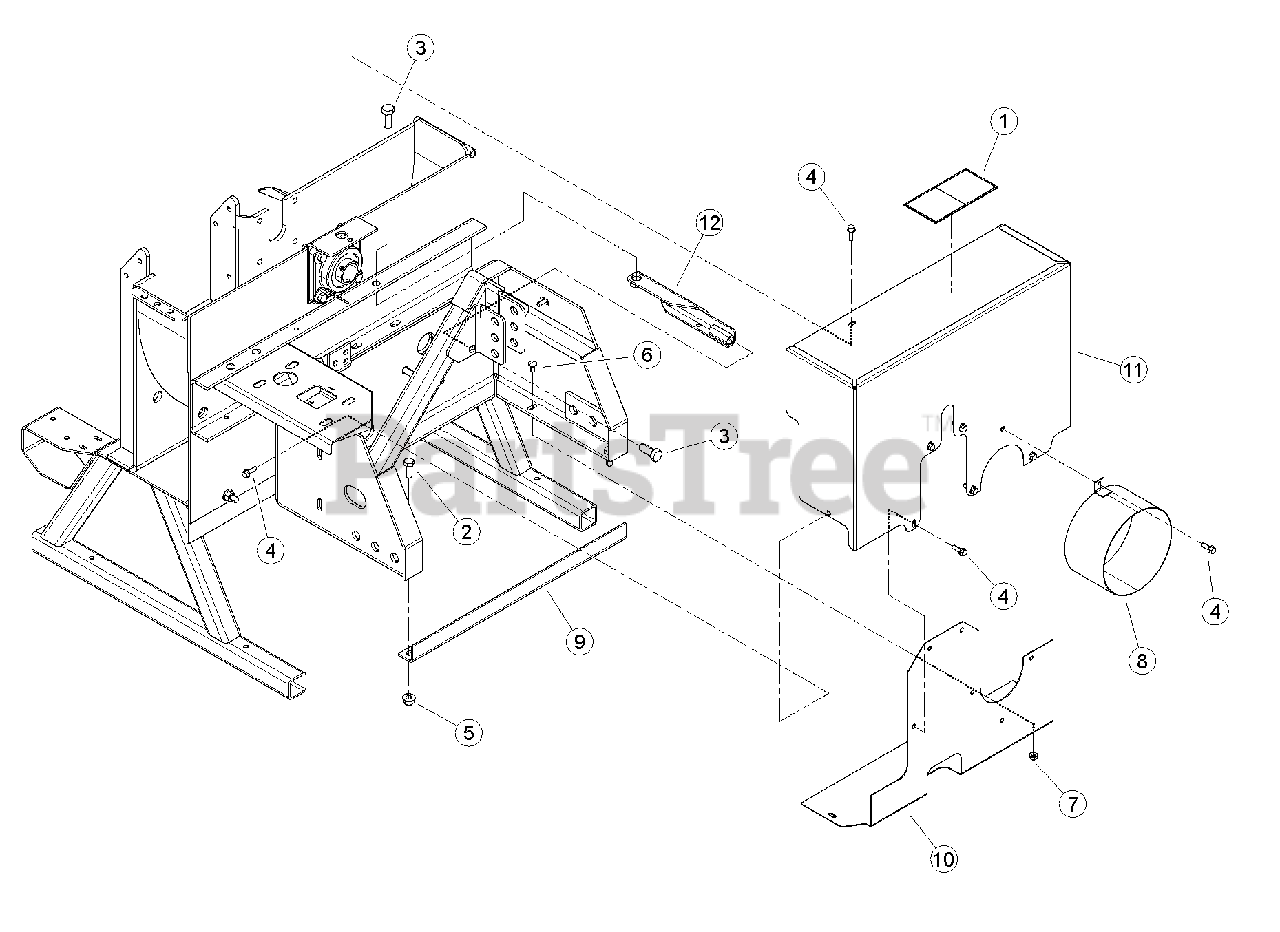

Shields Parts Diagram

  • Title

1

Bear Cat 12168

DECAL, PTO DANGER ISO

$9.99

$

Usually ships in 3-7 days

0

2

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

3

15029

BOLT, 5/8 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

6

Bear Cat 15301

BOLT, 5/16-18 X 1 GR5 CRG

$

$

Not available

7

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

8

71798-12

WELDMENT, PTO SHIELD

$

$

Not available

9

Bear Cat 72885-12

BRACE, 3 PT BOTTOM

$

$

Not available

10

Bear Cat 76080-12

WELDMENT, GUARD PTO LOWER BELT

$

$

Not available

11

76082-12

WELDMENT, GUARD PTO UPPER BELT

$

$

Not available

12

Bear Cat 76084-12

WELDMENT, BRACE PTO 3-POINT

$

$

Not available
