Challenger 750 Blue (37AY8CND710) - Cub Cadet 4x4 Crew Utility Vehicle (2016) Rear Axle Parts Diagram

4x4 Crew Utility Vehicle

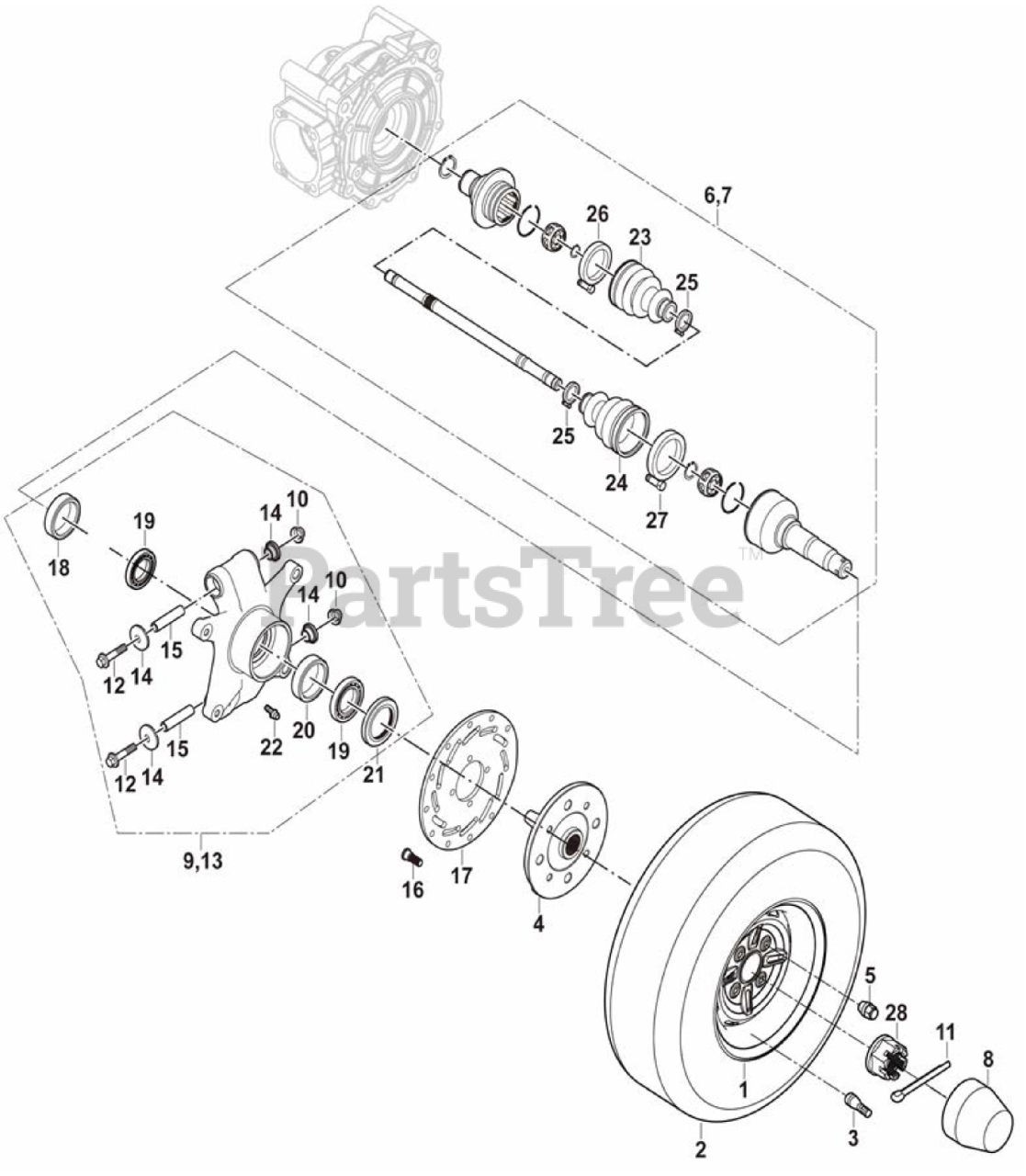

Rear Axle Parts Diagram

  • Title

1

Cub Cadet 503-00439

Rear rim

$414.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00440

Rear Tire

$355.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00417

valve core

$9.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-00442

Connecting base assy,rear hub

$127.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-00418

Taper nut M10X1.25

$9.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-00444

Rear Left Semiaxle U
(Superseded to 503P00444)

$468.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-00445

Rear Right Semiaxle U
(Superseded to 503P00445)

$530.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00419

trim cover F, wheel shaft

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00447

Front Right Knuckle

$219.99

$

Usually ships in 3-6 days

0

10

Cub Cadet B10-M10X1.25-27

Hexagon Flange Self-Lock Nuts M10x1.25

$2.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 47204-112-0000

Cotter pin 3X40

$8.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00450

Hexagon Flange Bolt M10X1.25X105

$8.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-00451

Front Left Knuckle

$267.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00452

Dust Cap

$16.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00453

Knuckle bearing sleeve line

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-00438

Inner hexagon cone bolt with pan M8

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-00455

Rear Brake pad

$201.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-00456

Rear Knuckle inside oil seal 38X62X8

$22.99

$

In Stock, only 1 left!

0

19

Cub Cadet 503-00457

Rear Knuckle bearing

$99.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00458

Knuckle bearing spacer bush

$26.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00459

Rear Knuckle outside oil seal 42X62X7

$28.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-00460

Knuckle oil fitting

$8.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-00461

Axle rubber boot H

$53.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-00462

Axle rubber boot G

$35.99

$

In Stock, only 2 left!

0

25

Cub Cadet 503-00463

Axle rubber boot clamp N

$18.99

$

In Stock, only 1 left!

0

26

Cub Cadet 503-00464

Axle rubber boot clamp P

$18.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-00465

Axle rubber boot clamp M

$18.99

$

In Stock, only 1 left!

0

28

503-00429

Hexagon Thin Slotted Nut M24X1.5

$

$

Not available
