Challenger MX550 Camo (37EZ7CLK710) - Cub Cadet 4x4 Utility Vehicle (2022) Brake System Parts Diagram

4x4 Utility Vehicle

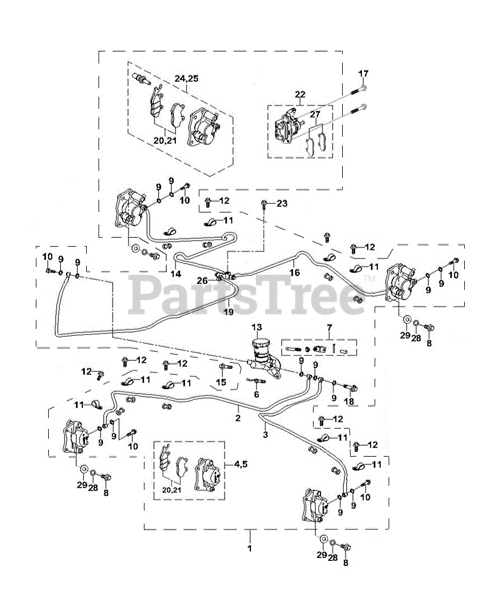

Brake System Parts Diagram

  • Title

1

Cub Cadet 503-02853

BRAKE SYSTEM ASSEMBLY

$1441.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-01636

BRAKE LINE - FRONT RIGHT

$89.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-01637

BRAKE LINE - FRONT LEFT

$89.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01638

DISC BRAKE CALIPER ASM FRONT RIGHT

$337.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-01639

DISC BRAKE CALIPER ASM FRONT LEFT

$337.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01653

TAIL LIGHT BRAKE SWITCH

$39.99

$

In Stock, only 1 left!

0

7

Cub Cadet 503-01641

BRAKE ROD ASSEMBLY
(Superseded to 503-01641P)

$36.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-02037

HEX FLANGE BOLT (M10x1.25x28)

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00695

HYDRAULIC OIL PIPEWASHER

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00694

HYDRAULIC OIL PIPEBOLT I

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-00552

OIL PIPE CLAMP

$17.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00011

HEXAGON FLANGE BOLT M6X16

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-01642

MAIN BRAKE PUMP ASSEMBLY

$427.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-02756

BRAKE LINE (REAR RH)

$54.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-00194

FLANGE BOLT M8X25

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01644

BRAKE LINE - REAR LEFT

$60.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01598

HEX HEAD FLANGE BOLT M10X1.25-40

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-01645

BANJO BOLT II

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-01646

BRAKE LINE - MIDDLE

$128.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00675

FRONT LEFT BRAKE PAD ASSEMBLY

$98.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00686

FRONT RIGHT BRAKE PAD ASSEMBLY

$98.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 503-01649

PARKING BRAKE ASSEMBLY

$219.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-00089

HEXAGON FLANGE BOLT M6X35

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-01650

DISC BRAKE CALIPER ASM REAR RIGHT

$337.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-01651

DISC BRAKE CALIPER REAR LEFT

$337.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-00673

T-JUCTION

$64.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-01652

PARKING BRAKE PAD SET

$48.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00064

SPRING WASHER

$6.49

$

In Stock, only 3 left!

0

29

Cub Cadet 503-01395

WASHER 10

$4.49

$

Usually ships in 3-6 days

0
