CLT 42 H (13A879KS897) - Columbia 42" Lawn Tractor (2015) Hood Parts Diagram

42" Lawn Tractor

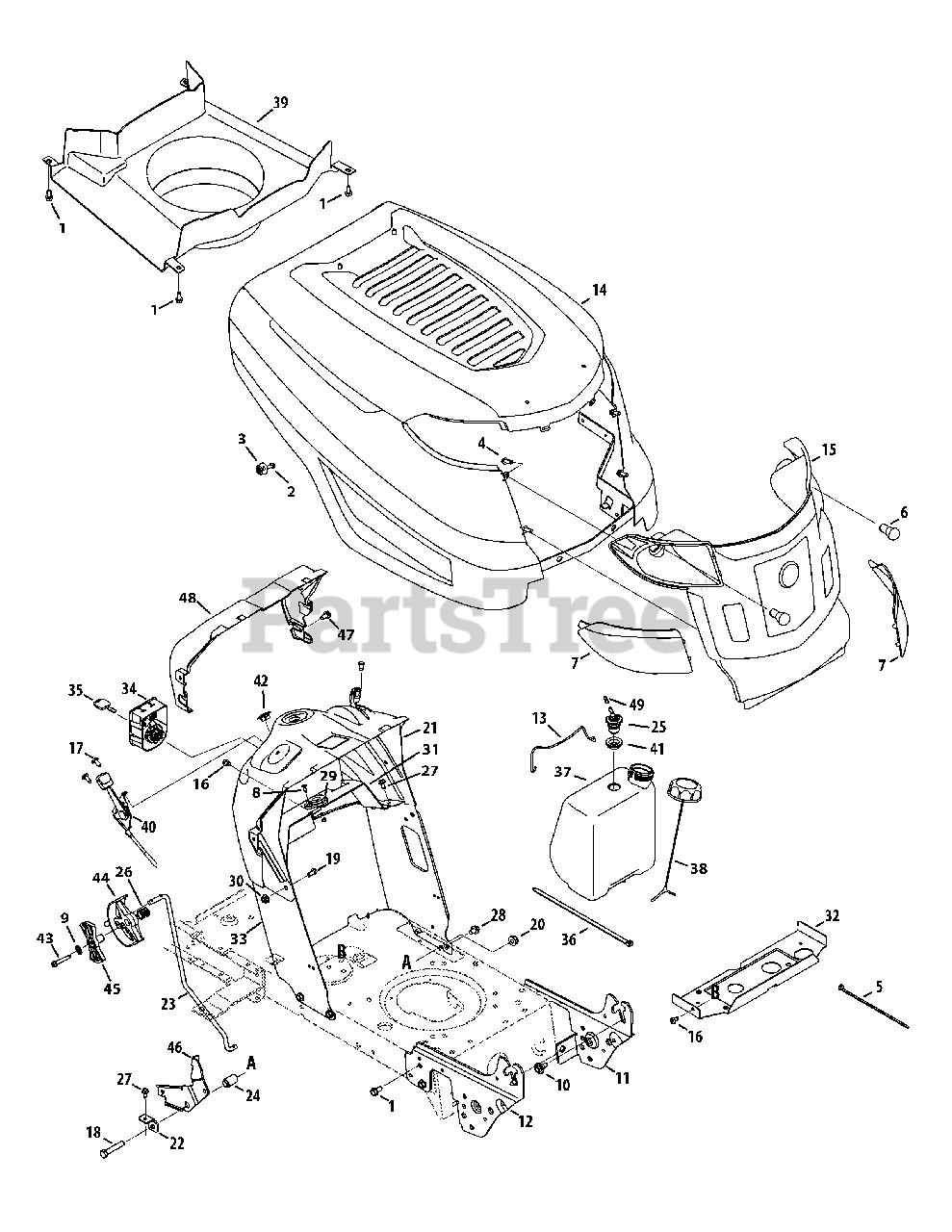

Hood Parts Diagram

  • Title

1

MTD 710-04484

Screw 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

2

MTD 710-05281

Screw, #12-16 x 1.25

$3.49

$

In Stock, only 1 left!

0

3

MTD 731-06404

K-Style Bumper

$8.49

$

In Stock, only 1 left!

0

4

MTD 710-05108

Screw, 1/4 x .750

$3.49

$

In Stock, Qty 20+

0

5

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

6

MTD 925-0963

Miniature lamp 12V socket

$6.99

$

In Stock, Qty 20+

0

7

MTD 731-06095

Grill Lens - LH

$11.99

$

Usually ships in 3-6 days

0

7

MTD 731-06096

Grill Lens - RH

$11.99

$

In Stock, only 4 left!

0

8

MTD 910-0224

Screw, #10-16 x .500

$3.49

$

In Stock, only 1 left!

0

9

MTD 736-3006

Lock Washer, 1/4

$5.99

$

In Stock, only 1 left!

0

10

MTD 738-04091A

Shoulder Screw .43 x .29

$3.99

$

In Stock, Qty 20+

0

11

MTD 783-05327B-0606

Suppport Bracket LH

$35.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A-0606

Suppport Bracket RH

$36.99

$

Usually ships in 3-6 days

0

13

MTD 683-04448-0637

Battery Rod

$9.99

$

In Stock, only 4 left!

0

14

MTD 683-04441A-0662

Hood

$308.99

$

Usually ships in 3-6 days

0

15

MTD 931-06796

Grille Assembly, K-Style
(Superseded to 931-06796A)

$67.99

$

Usually ships in 3-6 days

0

16

MTD 710-05070A

Screw, 1/4-20 x .500

$6.49

$

In Stock, Qty 12

0

17

MTD 710-04483

Screw 1/4-20 x .500

$6.49

$

Usually ships in 3-6 days

0

18

MTD 710-3144

Hex Screw 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 9

0

20

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 931-09942A

Dash, Upper,

$46.99

$

In Stock, only 1 left!

0

22

MTD 783-06823

Speed Latch Tab

$16.99

$

In Stock, only 2 left!

0

23

MTD 747-05398

Speed Control Rod

$10.99

$

In Stock, only 1 left!

0

24

MTD 750-04465C

Flange Spacer .39 x .671 x 1.095

$3.99

$

Usually ships in 3-6 days

0

25

MTD 751-12118

Rollover Valve

$33.99

$

In Stock, Qty 12

0

26

MTD 732-04877

Compr. Spring, .72 OD x .78

$3.99

$

In Stock, only 1 left!

0

27

MTD 710-1652

Tap Screw, 1/4-20, 0.625

$3.99

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

29

MTD 741-0587

Bearing, .628 ID x 1.36

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-04063

Flange lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

MTD 783-06785C-0606

Bracket, Steering Support

$8.49

$

Usually ships in 3-6 days

0

32

MTD 783-07083-0637

Gas Tank Support Bracket
(Superseded to 783-07083A-0637)

$26.99

$

Usually ships in 3-6 days

0

33

MTD 783-06811D-0606

Dash, Lower NWNDW
(Superseded to 783-06811E-0606)

$56.99

$

Usually ships in 3-6 days

0

34

MTD 925-06119A

Key Switch Module
(Superseded to 925-06119C)

$108.99

$

In Stock, Qty 20+

0

35

MTD 925-1745A

Key

$15.99

$

In Stock, Qty 20+

0

36

MTD 726-0230

Cable Tie

$25.99

$

In Stock, only 2 left!

0

37

MTD 951-04304

1.36 Gallon Fuel Tank
(Superseded to 951-04304B)

$103.99

$

Usually ships in 3-6 days

0

38

MTD 951-12179B

Fuel Cap, 2.25"
(Superseded to 951-12179C)

$35.99

$

In Stock, Qty 11

0

39

MTD 931-09328

Plenum

$44.99

$

In Stock, only 1 left!

0

40

MTD 746-04367

Throttle/Choke Cable, 28"
(Superseded to 946-04367A)

$37.99

$

In Stock, Qty 7

0

41

MTD 735-04081

Rubber Grommet, 23 x 3.55

$4.49

$

In Stock, Qty 20+

0

42

MTD 731-05265

Choke Plug

$5.49

$

Usually ships in 3-6 days

0

43

MTD 710-05237

Hex Washer Screw, 1/4-20 x 1.50

$3.49

$

In Stock, only 2 left!

0

44

MTD 731-07885B

Shift Lever

$10.99

$

In Stock, Qty 5

0

45

MTD 731-07966A

Index Control

$5.99

$

In Stock, only 1 left!

0

46

MTD 683-04766-0637

Transmission Speed Latch, RMC

$11.99

$

Usually ships in 3-6 days

0

47

MTD 710-0895

Screw, 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

48

MTD 731-05078C

Dash Collar

$16.99

$

In Stock, only 2 left!

0

49

MTD 751-12089-28

Hose Vent, 3/16 EPA

$8.49

$

In Stock, only 2 left!

0

MTD 925-04432H

Harness, LT-5, RMC,Dual
(Superseded to 925-04432M)

Note: (not shown)

$133.99

$

In Stock, only 3 left!

0

RMC® (Reverse Mowing Control)

$

$

Not available
