CMXGTAMD29SS (41AD29SA791) - Craftsman String Trimmer Engine Assembly Parts Diagram

String Trimmer

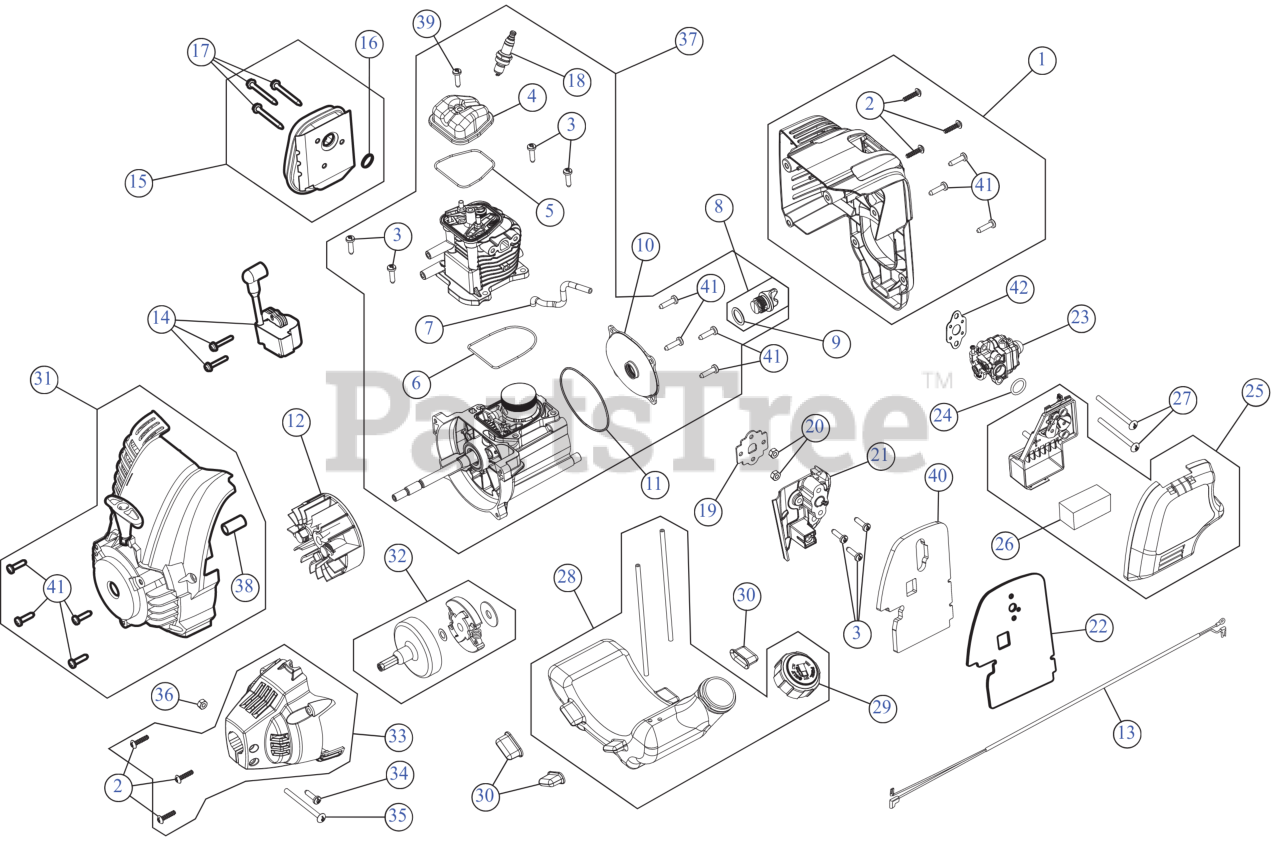

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06134

REAR ENGINE CVR

Note: (Incl. 2 & 41)

$10.99

$

Usually ships in 3-6 days

0

2

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

MTD 791-181003

SCREW, M5 x 18.7MM
(Superseded to 9052-1)

$

$

Not available

4

MTD 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

5

MTD 753-05902

O-RING

$5.49

$

Usually ships in 3-6 days

0

6

MTD 753-05910

O-RING CYL AC5

$3.49

$

In Stock, only 2 left!

0

7

MTD 791-182379

HOSE, BREATHER

$4.99

$

In Stock, only 1 left!

0

8

MTD 753-05408

OIL PLUG

Note: (Incl. 9)

$29.99

$

In Stock, only 1 left!

0

9

MTD 791-182290

RING, OIL PLUG (AC

$4.99

$

Usually ships in 3-6 days

0

10

MTD 753-06259

CRANKCASE COVER

$8.49

$

Usually ships in 3-6 days

0

11

MTD 753-05238

O-RING CRNKCSE CVR

$10.99

$

In Stock, only 1 left!

0

12

MTD 753-06221

FLYWHEEL ASSEMBLY AC3.1

$21.99

$

In Stock, only 1 left!

0

13

MTD 753-05264

LEAD WIRES

$16.99

$

In Stock, only 1 left!

0

14

MTD 753-05447

MODULE

$103.99

$

In Stock, only 1 left!

0

15

MTD 753-05245

MUFFLER ASSEMBLY

Note: (Incl. 16 & 17)

$92.99

$

Usually ships in 3-6 days

0

16

MTD 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 11

0

17

MTD 710-04809

SCREW M5 x 44MM

$3.49

$

In Stock, only 1 left!

0

18

MTD 794-00082

SPARK PLUG 4 CYCL

$7.49

$

In Stock, Qty 20+

0

19

MTD 753-05247

GASKET/INSULATOR

$7.99

$

In Stock, Qty 6

0

20

MTD 712-04099

NUT 10-32

$6.99

$

In Stock, only 1 left!

0

21

MTD 753-06947

CARB INSULATOR

$7.49

$

Usually ships in 3-6 days

0

22

MTD 753-06948

GASKET

$4.99

$

In Stock, Qty 8

0

23

MTD 753-06258A

CARBURETOR AC3.1

$60.99

$

In Stock, Qty 19

0

24

MTD 791-181751

O-RING

$4.49

$

In Stock, Qty 20+

0

25

MTD 753-05831

AIR CLEANER ASSEMBLY

Note: (Incl. 26)

$23.99

$

In Stock, Qty 7

0

26

MTD 753-05254

AIR FILTER

$5.99

$

In Stock, Qty 20+

0

27

MTD 710-04517

SCREW 10-32X2.5

$5.49

$

In Stock, Qty 6

0

28

MTD 753-06797

FUEL TANK ASSEMBLY

Note: (Incl. 29)

$21.99

$

Usually ships in 3-6 days

0

29

MTD 753-04084

FUEL CAP ASSEMBLY

$22.99

$

Usually ships in 3-6 days

0

30

MTD 753-05259

FUEL TANK PADS

$6.99

$

Usually ships in 3-6 days

0

31

MTD 841-021121S

STARTER HOUSING

Note: (Incl. 38 & 41)

$35.99

$

Usually ships in 3-6 days

0

32

MTD 753-06281

CLUTCH ASSEMBLY

$22.99

$

In Stock, Qty 20+

0

33

MTD 753-05263

CLUTCH COVER ASSEMBLY

Note: (Incl. 2)

$27.99

$

In Stock, only 1 left!

0

34

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

35

MTD 753-04003

SCREW
(Superseded to 9689A)

$11.99

$

In Stock, only 2 left!

0

36

MTD 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

37

MTD 753-06674

SHORT BLOCK

Note: (Incl. 3-11, 18, 39 & 41)

$95.99

$

In Stock, only 3 left!

0

38

MTD 750-04434

SPACER :2.165"

$6.99

$

In Stock, Qty 5

0

39

MTD 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

40

MTD 753-06949

HEAT SHIELD

$5.99

$

Usually ships in 3-6 days

0

41

MTD 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, Qty 12

0

42

MTD 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0
