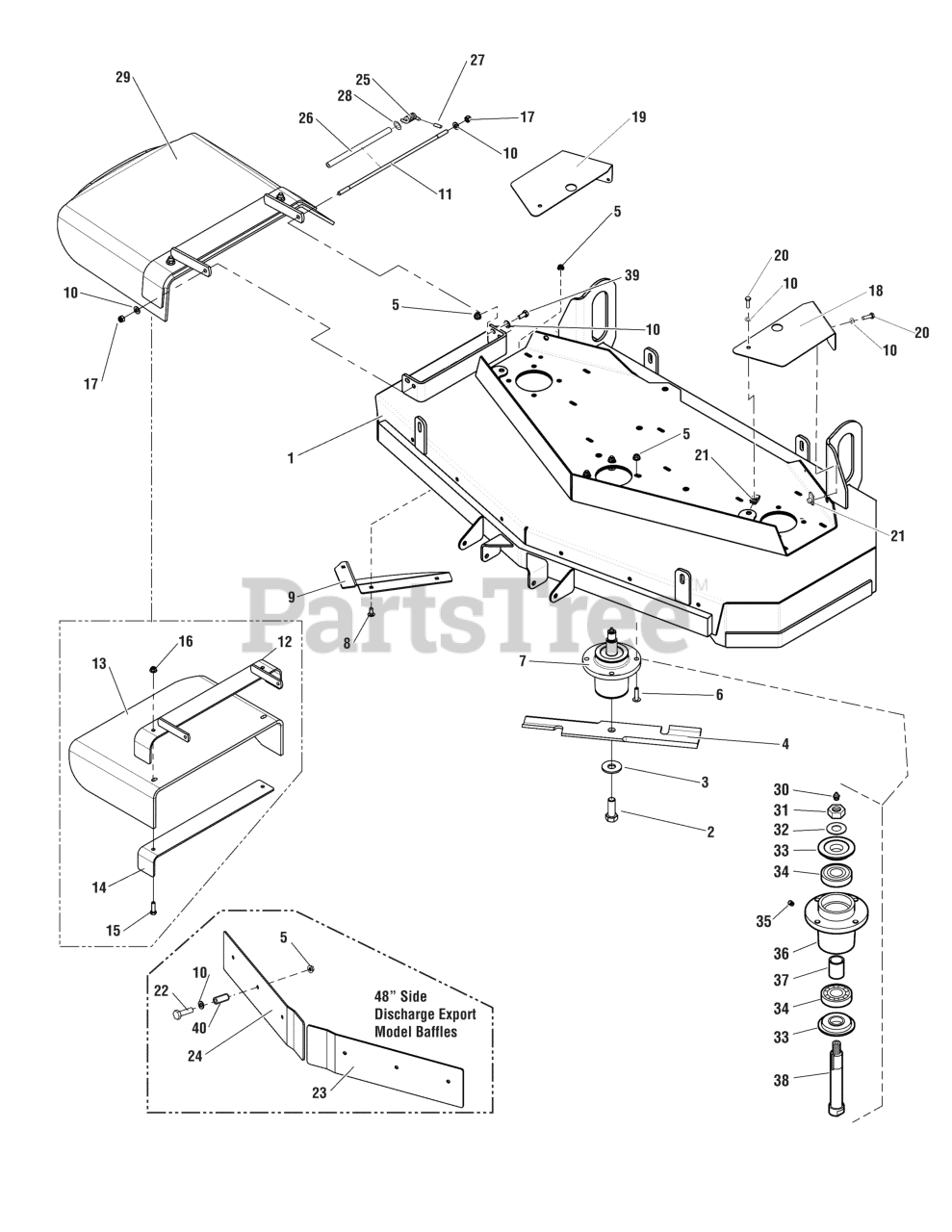

Comfort Control DD (5900727) - Ferris Comfort Control DD 48" Walk-Behind Mower, 19hp Kawasaki, Side-Discharge 48" Mower Deck - Housing, Covers, & Spindles - Side Discharge - Export Parts Diagram

Comfort Control DD 48" Walk-Behind Mower, 19hp Kawasaki, Side-Discharge

48" Mower Deck - Housing, Covers, & Spindles - Side Discharge - Export Parts Diagram

  • Title

1

Ferris 5600226

DECK SHELL W/DECALS, 48SD, CCW CE

$1709.99

$

Usually ships in 2-12 days

0

2

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025159

WASHER, 5/8 USS

$

$

Currently unavailable

4

Ferris 5023270

BLADE, 16.25", SAND
(Superseded to 5020843ASM)

$24.99

$

In Stock, only 2 left!

0

5

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 4 left!

0

7

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

8

Ferris 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5401271A

WELD, DISCHARGE BAFFLE, 48" - BLK

$

$

Currently unavailable

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5042555

ROD, BRAKE LINKAGE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

12

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

Usually ships in 2-12 days

0

13

Ferris 5402404

CHUTE, DISCHARGE, RUBBER, 44/48/52
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

14

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

15

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

18

Ferris 5402327B

GUARD, DECK, 48" DDS, LH - RED

$16.99

$

Usually ships in 2-12 days

0

19

Ferris 5402328B

GUARD, DECK, 48/52 DDS, RH - RED

$17.99

$

Usually ships in 2-12 days

0

20

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

22

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5402627B

BAFFLE, FRONT DISCHARGE, 48 LH CCW - RED

$41.99

$

Usually ships in 2-12 days

0

24

Ferris 5402628B

BAFFLE, FRONT DISCHARGE, 48 RH CCW - RED

$41.99

$

Usually ships in 2-12 days

0

25

Ferris 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.49

$

Usually ships in 2-12 days

0

26

Ferris 5050086X8P25

SPACER, TORSION SPRING

$

$

Currently unavailable

27

Ferris 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025164

WASHER, 5/16" FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

29

KIT, DISCHARGE CHUTE (SV)

$

$

Not available

30

Ferris 5023329

GREASE FITTING (SV)
(Superseded to 5023329SM)

$5.49

$

In Stock, only 2 left!

0

31

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

32

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 5049793

TRASH SHIELD
(Superseded to 5049793SM)

$16.99

$

In Stock, Qty 8

0

34

Ferris 5023330

BEARING (SV)
(Superseded to 5023330SM)

$23.99

$

In Stock, Qty 9

0

35

Ferris 5023296

RELIEF VALVE (SV)
(Superseded to 5023296SM)

$7.49

$

In Stock, only 1 left!

0

36

Ferris 5061097

HOUSING, SPINDLE

Note: (SV)

$

$

Currently unavailable

37

Ferris 5061099

SPACER, 1.00 X 1.25 X 1.75
(Superseded to 5061099SM)

$11.99

$

In Stock, only 3 left!

0

38

Ferris 5061098

SPINDLE SHAFT
(Superseded to 5061098SM)

$77.99

$

In Stock, only 1 left!

0

39

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

40

Ferris 5101352

SPACER,.32 X .50 X .75
(Superseded to 5101352FS)

$6.99

$

Usually ships in 2-12 days

0
