CPSC 5.5 - Snapper Stump Grinder, 5.5hp General Assembly Parts Diagram

Stump Grinder, 5.5hp

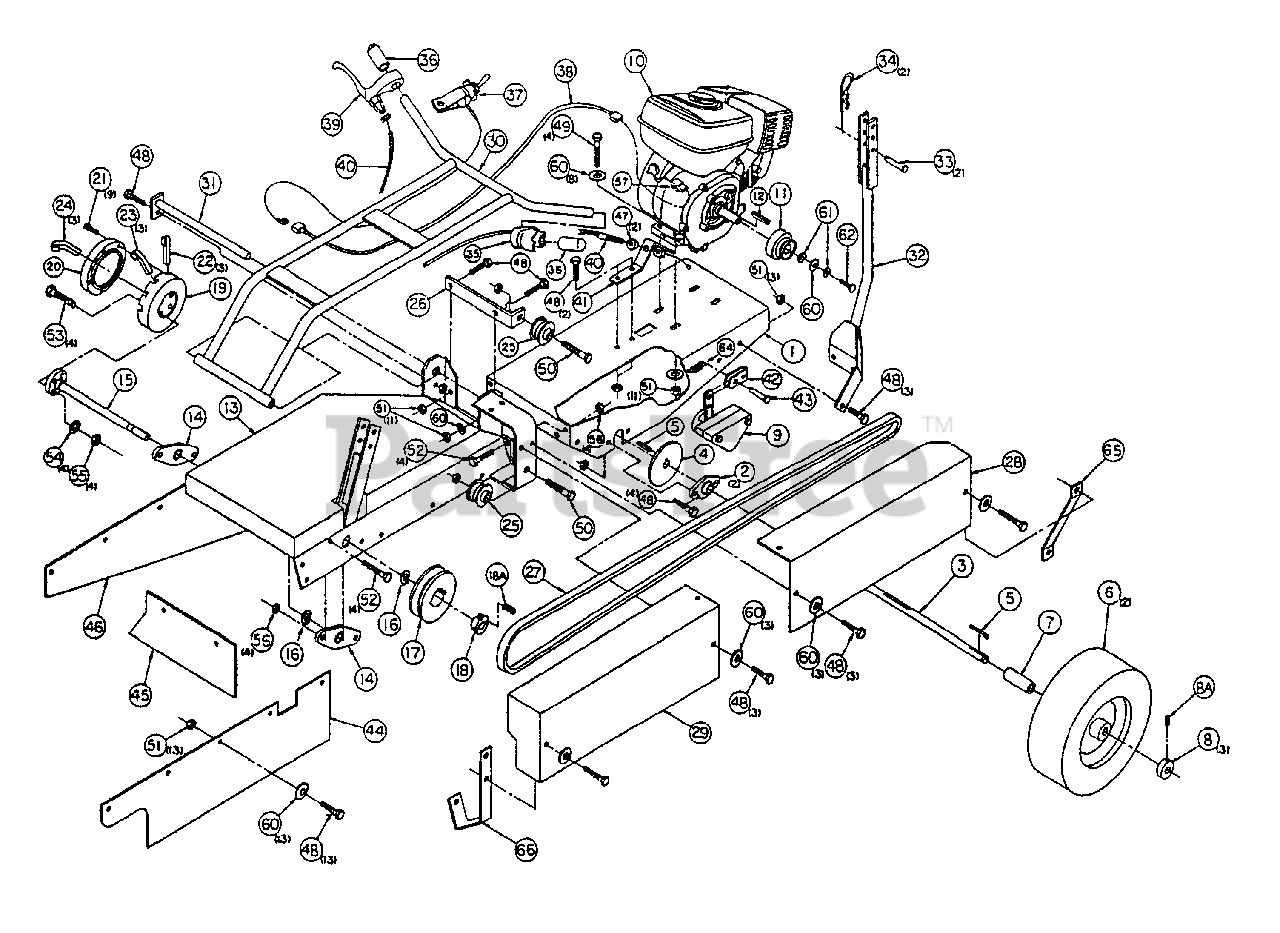

General Assembly Parts Diagram

  • Title
1

Snapper 8070052

Engine Base Weldment

$

$

Currently unavailable

2

Snapper 0300055

Bearing w/ 1" Dia. Bore

$

$

Currently unavailable

$

$

Currently unavailable

4

Snapper 8070005

Brake Rotor

$

$

Currently unavailable

5

Snapper 7030424

1/4" x 1/4" x 2" Key

$

$

Currently unavailable

6

Snapper 8070013

Wheel (13 x 5.00-6)

$

$

Currently unavailable

7

Snapper 8070060

Wheel Spacer

$

$

Currently unavailable

8

Snapper 8070059

Axle Locking Collar

$

$

Currently unavailable

8A

Snapper 0800053

5/16-18 x 5/16" Set Screw

$

$

Currently unavailable

9

Snapper 8070006

Brake Caliper

$

$

Currently unavailable

10

Snapper 0300195

* Engine Briggs & Stratton

$

$

Currently unavailable

11

Snapper 8070034

Clutch - 3/4 Ball Bearing

$

$

Currently unavailable

Snapper 0300202

Clutch - 1" Dia. Bore

$

$

Currently unavailable

12

Snapper 1000018

3/16 x 3/16" x 1" Shaft Key

$

$

Currently unavailable

13

Snapper 8070041

Head Frame Weldment

$

$

Currently unavailable

14

Snapper 0300115

Bearing 1-3/16" Bore

$

$

Currently unavailable

15

Snapper 8070009

Drive Shaft Weldment

$

$

Currently unavailable

16

Snapper 0300117

1-3/16" Retaining Ring

$

$

Currently unavailable

17

Snapper 8070004

Pulley - 5 3/4 Dia.

$

$

Currently unavailable

18

Snapper 0300118

Bushing 1 3/16"

$

$

Currently unavailable

18A

Snapper 0200001

3/8-16" x 5/8" Lg. Set Screw

$

$

Currently unavailable

19

Snapper 8070007

Cutter Head Body

$

$

Currently unavailable

20

Snapper 8070008

Cutter Head Cover

$

$

Currently unavailable

21

Snapper 0900513

3/8-24 x 1" Socket Hd. Cap Screw GR8

$

$

Currently unavailable

22

Snapper 8070001

Cutter Teeth - Straight

$

$

Currently unavailable

23

Snapper 8070002

Cutter Teeth - 25 Degree

$

$

Currently unavailable

24

Snapper 8070003

Cutter Teeth - 45 Degree

$

$

Currently unavailable

25

Snapper 9090012

Idler Pulley

$

$

Currently unavailable

26

Snapper 8070029

Idler Arm

$

$

Currently unavailable

27

Snapper 8070012

Belt - Kevlar

$

$

Currently unavailable

28

Snapper 8070039

Belt Guard - Engine

$

$

Currently unavailable

29

Snapper 8070040

Belt Guard - Head

$

$

Currently unavailable

30

Snapper 8070015

Handle Weldment

$

$

Currently unavailable

31

Snapper 8070025

Pivot Pin

$

$

Currently unavailable

32

Snapper 8070020

Handle Bar Brace

$

$

Currently unavailable

33

Snapper 8070056

Clevis Pin 5/16 x 2" Lg.

$

$

Currently unavailable

34

Snapper 1000015

3/32" Hair Cotter

$

$

Currently unavailable

35

Snapper 8070014

Throttle Cable Assembly

$

$

Currently unavailable

36

Snapper 5000041

Black Handle Grip - 7/8" x 5"

$

$

Currently unavailable

37

Snapper 8070038

Kill Switch - Toggle Type

$

$

Currently unavailable

38

Snapper 8070033

Kill Switch Wire Assembly

$

$

Currently unavailable

39

Snapper 8070037

Brake Handle

$

$

Currently unavailable

40

Snapper 8070035

Brake Cable Assembly

$

$

Currently unavailable

41

Snapper 8070028

Brake Cable Bracket

$

$

Currently unavailable

42

Snapper 8070036

Full Clevis

$

$

Currently unavailable

43

Snapper 8070057

Clevis Pin 1/4" x 7/8" Lg.

$

$

Currently unavailable

44

Snapper 8070030

Drive Side Guard

$

$

Currently unavailable

45

Snapper 8070031

Engine Side Guard

$

$

Currently unavailable

46

Snapper 8070032

Open Side Guard

$

$

Currently unavailable

47

Snapper 0900514

5/16-24 Jam Nut

$

$

Currently unavailable

48

Snapper 0900088

5/16-18 x 1, HHCS

$

$

Currently unavailable

49

Snapper 0900090

5/16-18 x 1-1/2" HHCS

$

$

Currently unavailable

50

Snapper 0900072

5/16-18 x 2" HHCS

$

$

Currently unavailable

51

Snapper 0900460

5/16-18 Nylok Locknut

$

$

Currently unavailable

52

Snapper 0900111

3/8-16 x 1-1/4" HHCS

$

$

Currently unavailable

53

Snapper 0900113

3/8-16 x 1-3/4" HHCS, GR5

$

$

Currently unavailable

54

Snapper 0900228

3/8" Med. Split Lockwasher

$

$

Currently unavailable

55

Snapper 0900207

3/8-16 Hex Nut

$

$

Currently unavailable

56

Snapper 0900461

3/5-16 Nylok Locknut

$

$

Currently unavailable

57

Snapper 0200056

Self-Stripping Wire Connector

$

$

Currently unavailable

60

Snapper 0900233

5/16 Flatwasher

$

$

Currently unavailable

61

Snapper 0900394

5/16 Med. Split Lockwasher

$

$

Currently unavailable

62

Snapper 0900515

5/16-24 X 1-1/2 HHCS

$

$

Currently unavailable

64

$

$

Currently unavailable

65

Snapper 8070063

Belt Guard Bracket - Engine

$

$

Currently unavailable

66

Snapper 8070064

Belt Guard Bracket - Head

$

$

Currently unavailable
