Criterion 320 - Ferris Criterion Series Front Mount Mower, 20hp Briggs & Stratton 61" Cutter Deck Group Parts Diagram

Criterion Series Front Mount Mower, 20hp Briggs & Stratton

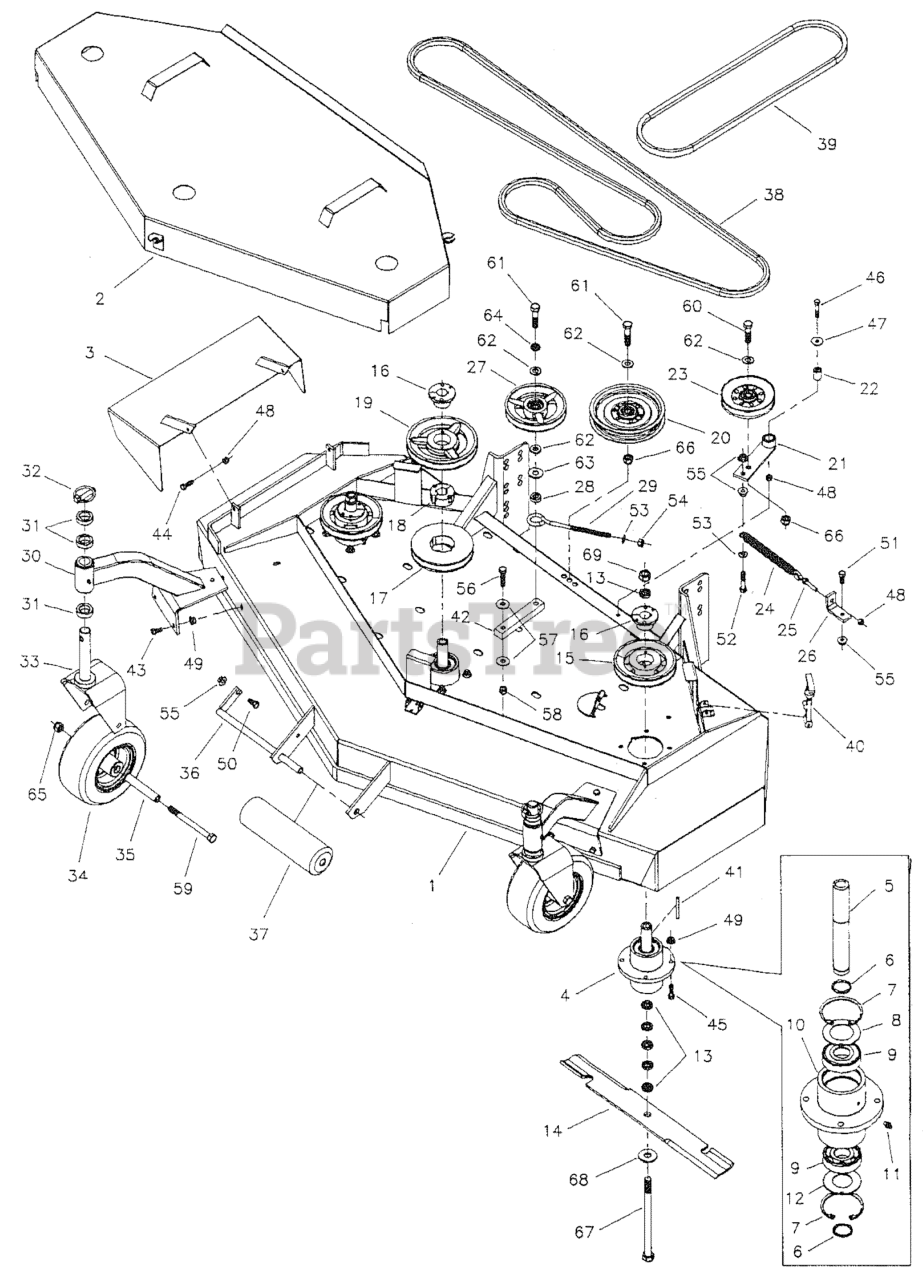

61" Cutter Deck Group Parts Diagram

  • Title

1

Ferris 5030820B

61" Cutter Deck

$

$

Currently unavailable

2

Ferris 5030822B

61" Guard

$512.99

$

Usually ships in 2-12 days

0

3

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

4

Ferris 5030301

Spindle Assembly
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

5

Ferris 5041480

Shaft, Spindle
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

6

Ferris 5020864

Snap Ring, External

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5020866

Snap Ring, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

8

Ferris 5041653

Spindle Washer-Top

$10.99

$

Usually ships in 2-12 days

0

9

Ferris 5020828

Bearing
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

10

Ferris 5030293

Housing, Spindle

$

$

Not available

11

Ferris 5020095

Grease Fitting
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5041672

Spindle Washer-Bottom

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5041477

Spacer, Blade
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

14

Ferris 5020842

Blade, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 11

0

15

Ferris 5020814

Pulley, Spindle

$82.99

$

Usually ships in 2-12 days

0

16

Ferris 5020819

Bushing, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

17

Ferris 5022159

Pulley, Taper Lock

$188.99

$

Usually ships in 2-12 days

0

18

Ferris 5022160

Bushing, Taper Lock

$66.99

$

Usually ships in 2-12 days

0

19

Ferris 5020815

Pulley, Spindle
(Superseded to 5020815SM)

$111.99

$

Usually ships in 2-12 days

0

20

Ferris 5021096

Pulley, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

21

Ferris 5042145B

Ann, Idler w/ Bushing

$70.99

$

In Stock, only 2 left!

0

21

Ferris 5020876B

Bushing, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 4 left!

0

22

Ferris 5042134

Spacer, Pivot
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5021097

Pulley, V-Idler
(Superseded to 5021097SM)

$40.99

$

Usually ships in 2-12 days

0

24

Ferris 5021103

Spring, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

25

Ferris 5025141X26

Eyebolt
(Superseded to 5025141X26YP)

$7.99

$

Usually ships in 2-12 days

0

26

Ferris 5042142

Anchor, Spring

$

$

Currently unavailable

27

Ferris 5030819

Idler Pulley Assembly

$148.99

$

Usually ships in 2-12 days

0

27

Ferris 5041481

Pulley, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

27

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

27

Ferris 5020870

Insert, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, only 2 left!

0

27

Ferris 5020865

Snap Ring, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

28

Ferris 5044609

Spacer, Idler
(Superseded to 5044609SM)

$6.49

$

Usually ships in 2-12 days

0

29

Ferris 5021811

Eyebolt, 3/8" x 8"
(Superseded to 5021811SM)

$8.49

$

Usually ships in 2-12 days

0

30

Ferris 5043887B

Mount, Deck Caster

$

$

Currently unavailable

30

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 15

0

30

Ferris 5021728

Grease Fitting
(Superseded to 5021728FS)

$2.99

$

Usually ships in 2-12 days

0

31

Ferris 5041476

Spacer, Caster
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

32

Ferris 5020655

Pin, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 3 left!

0

33

Ferris 5041702

Yoke, Caster

$

$

Currently unavailable

34

Ferris 5021181

Tire, Caster
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

35

Ferris 5041657

Axle, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

36

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

$46.99

$

In Stock, only 1 left!

0

37

Ferris 5020785

Roller
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 10

0

38

Ferris 5020824

Belt, Blade Spindle
(Superseded to 5020824SM)

$112.99

$

Usually ships in 2-12 days

0

39

Ferris 5021063

Belt, Deck Drive

$61.99

$

Usually ships in 2-12 days

0

40

Ferris 5020841X1

Latch, Rubber
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

41

Ferris 5050407X20

KEY, 1/4 SQ X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

Usually ships in 2-12 days

0

42

Ferris 5044610B

Arm, Idler

$41.99

$

Usually ships in 2-12 days

0

43

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

44

Ferris 5025011X8

Bolt, 5/16-18 x I" GD.5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5025011X10

Bolt, 5/16-18 x 1-114" GD.5
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

46

Ferris 5025011X14

Bolt, 5/16-18 x 1-3/4" GD.5
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

47

Ferris 5025164

Washer, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

48

Ferris 5025057

Nut, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

49

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

50

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

51

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

52

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 2 left!

0

53

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

54

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 2 left!

0

55

Ferris 5025128

Nut, 3/8-16 Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

56

Ferris 5025016X14

BOLT, 7/16-20 X 1-3/4" GD.5
(Superseded to 5025016X14YP)

$5.99

$

Usually ships in 2-12 days

0

57

Ferris 5025157

Washer, 7/16" SAE
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

58

Ferris 5025094

Nut, 7/16-20 Hex Nylon Lock
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

59

Ferris 5025017X44

Bolt, 1/2-13 x 5-1/2" GD.5
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

60

Ferris 5025018X16

Bolt, 112-20 x 2" GD.5

$2.49

$

Usually ships in 2-12 days

0

61

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

62

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 20+

0

63

Ferris 5025150

Washer, 112" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 4 left!

0

64

Ferris 5025173

Washer, 1/2" Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

65

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

66

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

67

Ferris 5025019X76

Bolt, 5/8-11 x 9-1/2" GD.5
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

68

Ferris 5025159

Washer, 5/8" USS

$

$

Currently unavailable

69

Ferris 5025040

Nut, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0
