CS 2166 - Jonsered Chainsaw (2011-03) CLUTCH OIL PUMP Parts Diagram

Chainsaw

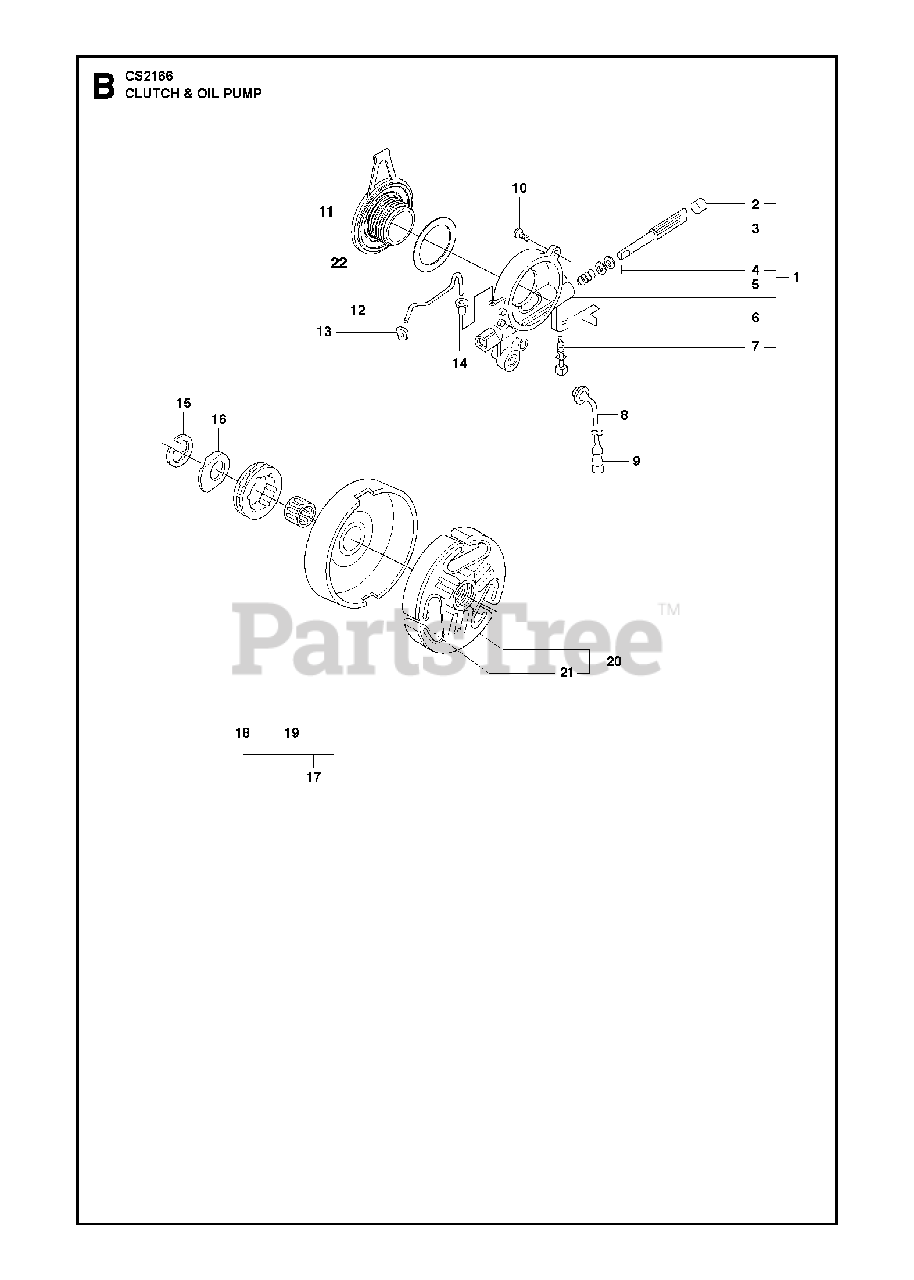

CLUTCH OIL PUMP Parts Diagram

  • Title

1

Jonsered 503521303

OIL PUMP
(Superseded to 503521305)

$109.99

$

In Stock, Qty 8

0

2

Jonsered 503624901

PLUG

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

3

Jonsered 503521501

PUMP PISTON

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

4

Jonsered 503230004

WASHER 6.1X9

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

5

Jonsered 501615801

SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 503813001

SPRING CLIP

Note: . 1

$7.49

$

In Stock, only 2 left!

0

7

Jonsered 503811301

SCREW

Note: . 1

$7.49

$

In Stock, only 2 left!

0

8

Jonsered 503426701

OIL HOSE

$18.99

$

In Stock, only 3 left!

0

9

Jonsered 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

10

Jonsered 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$6.49

$

In Stock, Qty 20+

0

11

Jonsered 537207805

OIL PUMP DRIVE
(Superseded to 537207807)

$21.99

$

Usually ships in 3-10 days

0

12

Jonsered 503774301

PIPE

$17.99

$

In Stock, only 2 left!

0

13

Jonsered 503644701

GROMMET

$10.99

$

In Stock, only 1 left!

0

14

Jonsered 504300026

SEAL

$6.99

$

In Stock, Qty 7

0

15

Jonsered 503272101

RETAINING RING

$3.99

$

In Stock, Qty 20+

0

16

Jonsered 503752401

WASHER

$6.49

$

In Stock, Qty 20+

0

17

Jonsered 503932471

CLUTCH DRUM
(Superseded to 586980601)

Note: 3 /8 x7T

$78.99

$

Usually ships in 3-10 days

0

17

Jonsered 503932472

CLUTCH DRUM
(Superseded to 586980602)

Note: 3 /8 x8T

$67.99

$

Usually ships in 3-10 days

0

18

Jonsered 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3 /8 x7T. 17

$8.49

$

In Stock, Qty 20+

0

18

Jonsered 505303661

22273 SPROCKET
(Superseded to 608000112)

Note: 3 /8 x8T. 17

$7.99

$

In Stock, only 1 left!

0

19

Jonsered 503432001

CLUTCH DRUM BEARING

Note: . 17

$15.99

$

In Stock, Qty 20+

0

20

Jonsered 503744401

CLUTCH
(Superseded to 586798401)

$136.99

$

In Stock, only 1 left!

0

21

Jonsered 503744301

CLUTCH SPRING

Note: . 20

$9.49

$

In Stock, only 2 left!

0

22

Jonsered 503230059

WASHER

$6.99

$

In Stock, only 1 left!

0
