CS-400 - Echo Chainsaw (SN: C09011001001 - C09011999999) Chain Brake Parts Diagram

Chainsaw

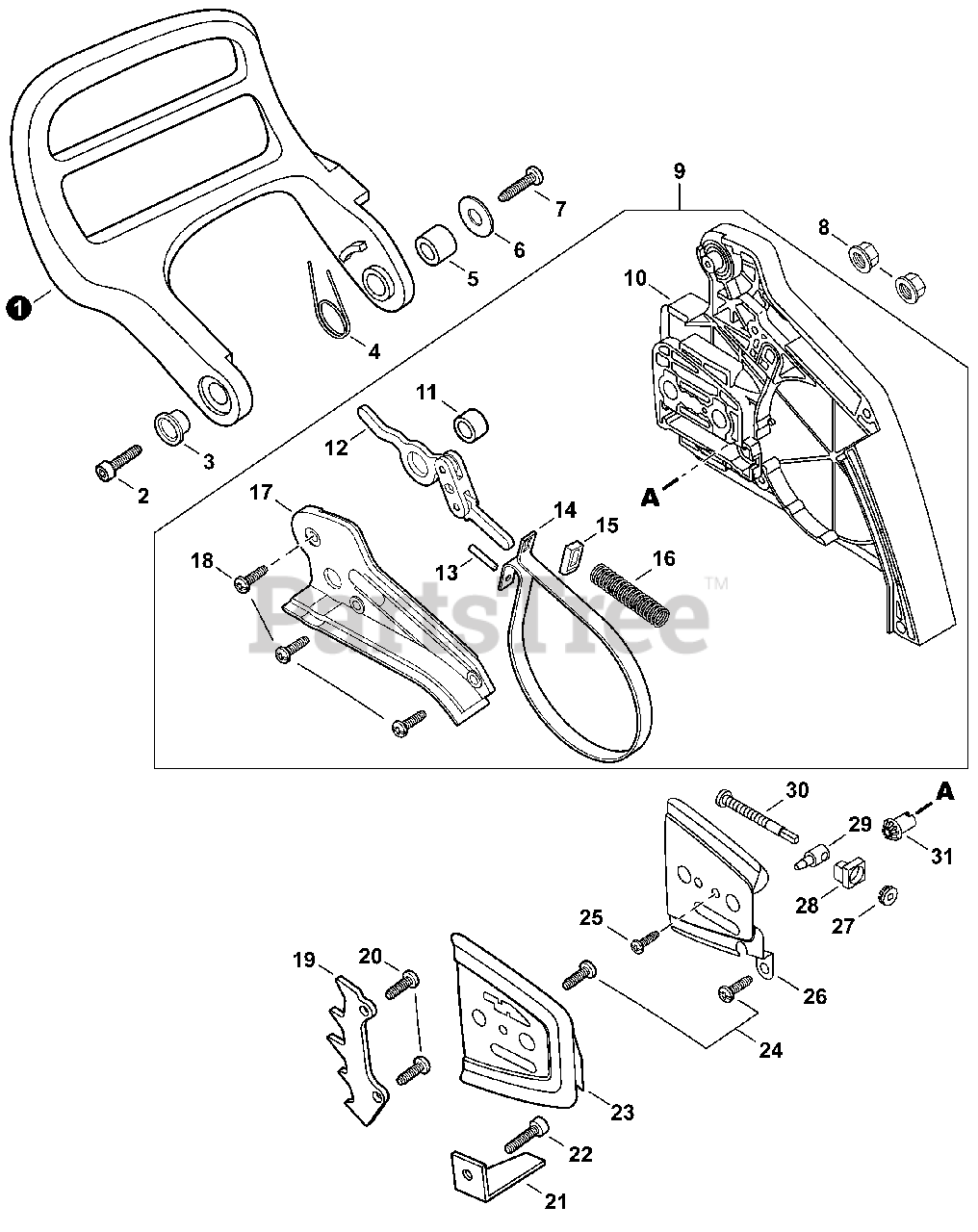

Chain Brake Parts Diagram

  • Title

1

Echo C320000111

LEVER, BRAKE
(Superseded to C320000112)

$31.99

$

In Stock, only 3 left!

0

2

Echo 9114505016

SCREW TAPPING 5×16

$0.99

$

In Stock, Qty 11

0

3

Echo V356000300

COLLAR 10

$1.99

$

In Stock, Qty 20+

0

4

Echo V452000250

SPRING, TORSION

$1.49

$

In Stock, Qty 20+

0

5

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, Qty 11

0

6

Echo 17721403930

WASHER 4.2×16.5×1

$0.99

$

In Stock, Qty 13

0

7

Echo V202000070

BOLT 4

$1.49

$

In Stock, Qty 10

0

8

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

9

Echo C032000282

BRAKE ASSY, CHAIN
(Superseded to C032000283)

Note: Includes ITEMS 10-18

$75.99

$

In Stock, Qty 15

0

10

Echo C300000312

GUARD, SPROCKET
(Superseded to P021048060)

$24.99

$

In Stock, Qty 10

0

11

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, Qty 11

0

12

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, Qty 7

0

13

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

14

Echo C328000080

BAND, BRAKE

$6.99

$

In Stock, Qty 15

0

15

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 15

0

16

Echo V450000070

SPRING, COMPRESSION

$2.49

$

In Stock, Qty 15

0

17

Echo C345000211

COVER, BRAKE

$4.49

$

Usually ships in 2-4 days

0

18

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

19

Echo C304000010

SPIKE, BUMPER

$24.99

$

In Stock, only 1 left!

0

20

Echo 9114505020

SCREW TAPPING 5×20

$0.99

$

In Stock, Qty 20+

0

21

Echo C310000000

CHAIN CATCHER

$1.99

$

In Stock, Qty 7

0

22

Echo 9114505016

SCREW TAPPING 5×16

$0.99

$

In Stock, Qty 11

0

23

Echo 43301239930

PLATE, GUIDE - INNER

$7.99

$

In Stock, Qty 13

0

24

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

25

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 20+

0

26

Echo C305000011

PLATE, GUIDE - OUTER
(Superseded to C305000012)

$6.49

$

In Stock, Qty 20+

0

27

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

28

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

29

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

30

Echo V203000110

SCREW, CHAIN TENSION

$5.99

$

In Stock, Qty 20+

0

31

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0
