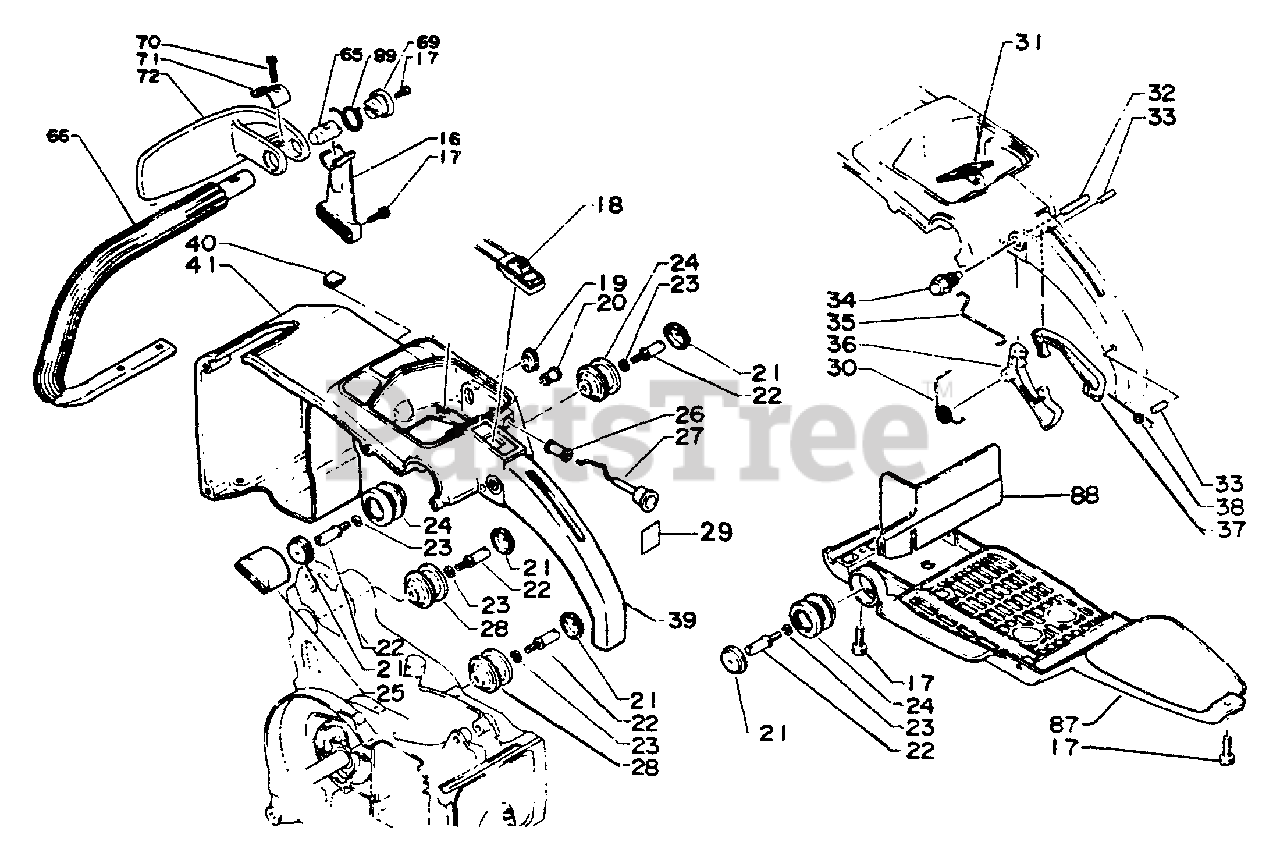

CS-440 EVL - Echo Chainsaw Handles Parts Diagram

Chainsaw

Handles Parts Diagram

  • Title

16

Echo 35161414530

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

17

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

18

Echo 16340015230

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 12901003930

GROMMET

$1.49

$

In Stock, only 4 left!

0

20

Echo 12902314530

GROMMET
(Superseded to Discontinued)

$

$

Not available

21

Echo 10091814330

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

22

Echo 10091514332

SCREW

$3.49

$

In Stock, only 2 left!

0

23

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

24

Echo 10091012530

CUSHION

$

$

Not available

25

Echo 35113814332

COVER, CUSHION

$

$

Not available

26

Echo 17881014530

GROMMET
(Superseded to 17881014531)

$1.49

$

In Stock, only 2 left!

0

27

Echo 17852114530

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

28

Echo 10091714530

CUSHION

$13.99

$

In Stock, only 1 left!

0

29

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

30

Echo 17804315130

SPRING, TRIGGER

$2.49

$

In Stock, Qty 9

0

31

Echo 17821014530

GROMMET

$2.49

$

Usually ships in 2-4 days

0

32

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

33

Echo 90034040013

PIN - SPRING -- 4X13

$0.99

$

In Stock, Qty 9

0

34

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

35

Echo 17801114530

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

36

Echo 17801014530

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

37

Echo 17809012330

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

38

Echo 17809110531

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, only 1 left!

0

39

Echo 35111112330

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

40

Echo 35113712330

STOPPER

$1.49

$

Usually ships in 2-4 days

0

41

Echo 35111014530

HANDLE - REAR

$133.99

$

Usually ships in 2-4 days

0

66

Echo 35120514530

HANDLE - FRONT

$41.99

$

Usually ships in 2-4 days

0

65

Echo 35161710531

SPACER

$3.49

$

Usually ships in 2-4 days

0

69

Echo 35183313730

PLATE, HAND GUARD
(Superseded to Discontinued)

$

$

Not available

70

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

71

Echo 35184014530

STOPPER
(Superseded to Discontinued)

$

$

Not available

72

Echo 35182613730

GUARD
(Superseded to Discontinued)

$

$

Not available

73

Echo 10061212332

COVER
(Superseded to Discontinued)

$

$

Not available

87

Echo 35112316331

Supporter, bottom
(Superseded to Discontinued)

$

$

Not available

88

Echo 35114716330

INSULATOR
(Superseded to Discontinued)

$

$

Not available

89

Echo 35183615130

SPRING

$2.49

$

Usually ships in 2-4 days

0
