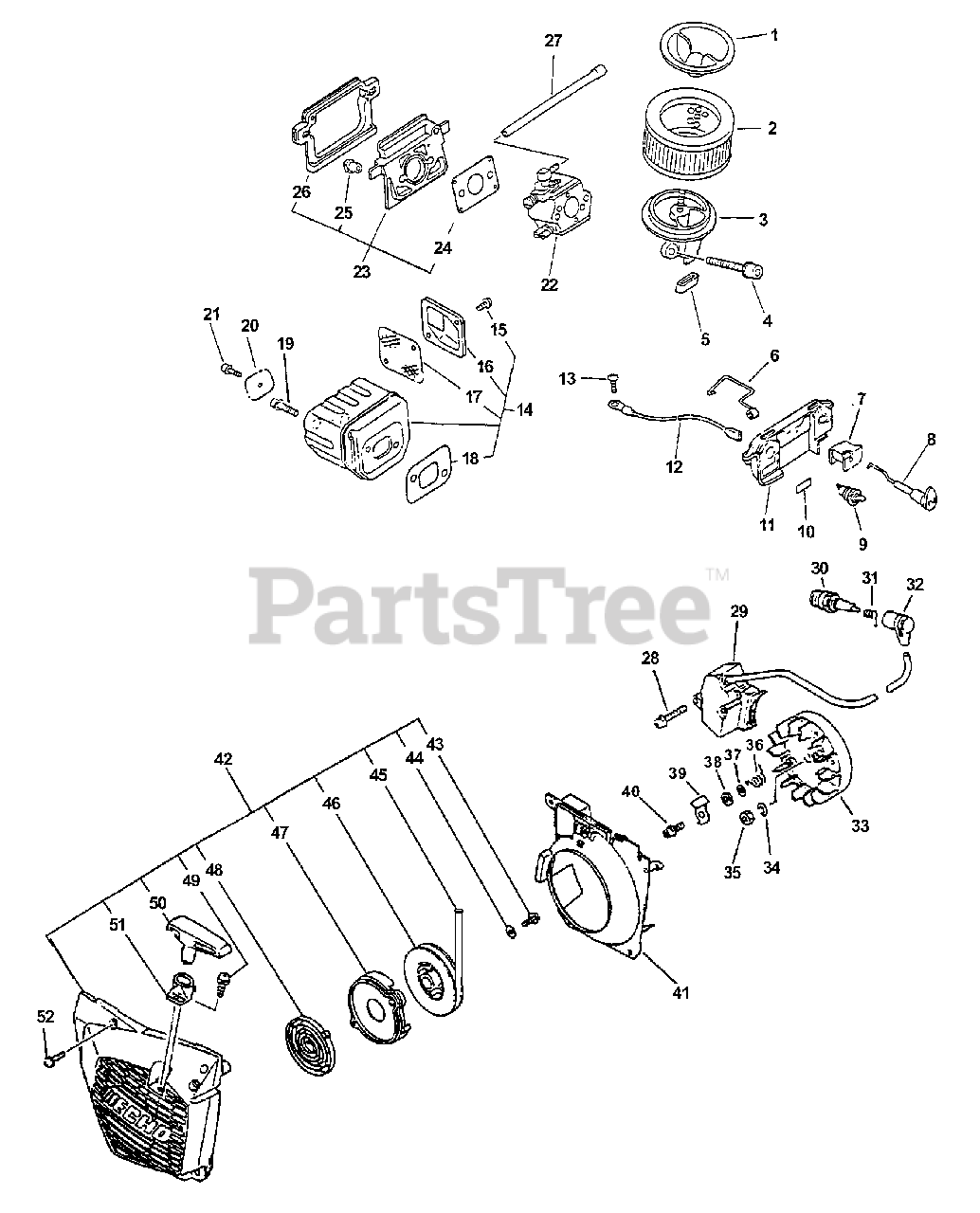

CS-4400 - Echo Chainsaw (Type 1E) (SN: 001001 - 101000) Starter, Ignition, Intake, Air Filter, Exhaust, Stop Switch Parts Diagram

Chainsaw (Type 1E)

Starter, Ignition, Intake, Air Filter, Exhaust, Stop Switch Parts Diagram

  • Title

1

Echo 13040538331

COVER, AIR FILTER
(Superseded to 13040538332)

$9.99

$

In Stock, Qty 13

0

2

Echo 13031038330

FILTER, AIR
(Superseded to 13031038331)

$22.99

$

In Stock, Qty 20+

0

3

Echo 13030138331

MOUNT, AIR FILTER
(Superseded to 13030138332)

$14.99

$

Usually ships in 2-4 days

0

4

Echo 90016205050

SCREW - 5X50

$1.99

$

In Stock, Qty 15

0

5

Echo 13043038330

CUSHION

$1.99

$

In Stock, only 1 left!

0

6

Echo 17801138331

ROD, THROTTLE

$4.49

$

In Stock, Qty 5

0

7

Echo 17881038330

GROMMET

$1.99

$

Usually ships in 2-4 days

0

8

Echo 17851038330

ROD, CHOKE
(Superseded to 17851038331)

$7.49

$

In Stock, Qty 20+

0

9

Echo 16340038330

IGNITION SWITCH ASSY

$15.99

$

In Stock, Qty 10

0

10

Echo 89015737330

LABEL - STOP

$1.99

$

Usually ships in 2-4 days

0

11

Echo 16381038330

BRACKET, SWITCH
(Superseded to 16380438930)

$

$

Not available

12

Echo 16201038330

LEAD - GROUND
(Superseded to 16201038331)

$2.99

$

In Stock, only 4 left!

0

13

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 12

0

14

Echo 14580039330

MUFFLER ASSY
(Superseded to 14580061630)

Note: Includes ITEMS 15-18

$

$

Not available

15

Echo 90025004008

SCREW - 4X8

$0.99

$

Usually ships in 2-4 days

0

16

Echo 14586335430

GUIDE, EXHAUST

$2.99

$

Usually ships in 2-4 days

0

17

Echo 14588435430

SCREEN, SPARK ARRESTOR
(Superseded to 14588439330)

$

$

Not available

18

Echo 14551035431

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

19

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

20

Echo 14571135430

PLATE
(Superseded to 14571160631)

$6.99

$

Usually ships in 2-4 days

0

21

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 8

0

22

Echo 12300039330

CARBURETOR WT-416
(Superseded to 12300039332)

$115.99

$

In Stock, Qty 6

0

23

Echo 13000038330

INSULATOR KIT
(Superseded to 13000038331)

Note: INCLUDES ITEMS 24 - 26

$20.99

$

In Stock, only 1 left!

0

24

Echo 13001038330

GASKET, INTAKE

$1.49

$

In Stock, Qty 9

0

25

Echo 13002033330

T-NUT

$3.49

$

In Stock, Qty 5

0

26

Echo 13036638330

CUSHION
(Superseded to V420001130)

$5.99

$

Usually ships in 2-4 days

0

27

Echo 13011038330

PIPE - IMPULSE
(Superseded to 13011038331)

$2.99

$

In Stock, Qty 6

0

28

Echo 90016204030

SCREW - 4X30

$1.49

$

Usually ships in 2-4 days

0

29

Echo 15662638331

COIL, IGNITION
(Superseded to 15662638332)

$

$

Not available

30

Echo 15901716431

SPARK PLUG -- CJ-6Y
(Superseded to Discontinued)

$

$

Not available

31

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

32

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

33

Echo 15680038931

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

34

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

35

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

36

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, Qty 5

0

37

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

38

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 14

0

39

Echo 17721819830

PAWL, STARTER

$4.49

$

In Stock, Qty 9

0

40

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

41

Echo 10153538930

SHIELD, FAN
(Superseded to A172000060)

$11.99

$

Usually ships in 2-4 days

0

42

Echo 17720039331

STARTER ASSY
(Superseded to 17720039332)

Note: INCLUDES ITEMS 43 - 51

$97.99

$

In Stock, only 1 left!

0

43

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 9

0

44

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 10

0

45

------------------

ROPE, STARTER - 3.5X1000

Note: RePower BULK OPTION: 99944445000

$

$

Not available

46

Echo 17721538330

REEL, ROPE

$9.99

$

In Stock, Qty 7

0

47

Echo 17722138330

PLATE, STARTER

$3.49

$

In Stock, Qty 8

0

48

Echo 17722035430

SPRING, REWIND

$13.99

$

In Stock, only 1 left!

0

49

Echo 90029603014

SCREW - 3X14

$0.99

$

In Stock, Qty 5

0

50

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$8.49

$

In Stock, Qty 20+

0

51

Echo 17722737930

GUIDE, ROPE

$3.49

$

Usually ships in 2-4 days

0

52

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0

Echo 99944400045

BULK ROPE
(Superseded to 99944445000)

$32.99

$

In Stock, only 4 left!

0
