CS-450 - Echo Chainsaw (SN: C05812001001 - C05812999999) Chain Brake Parts Diagram

Chainsaw

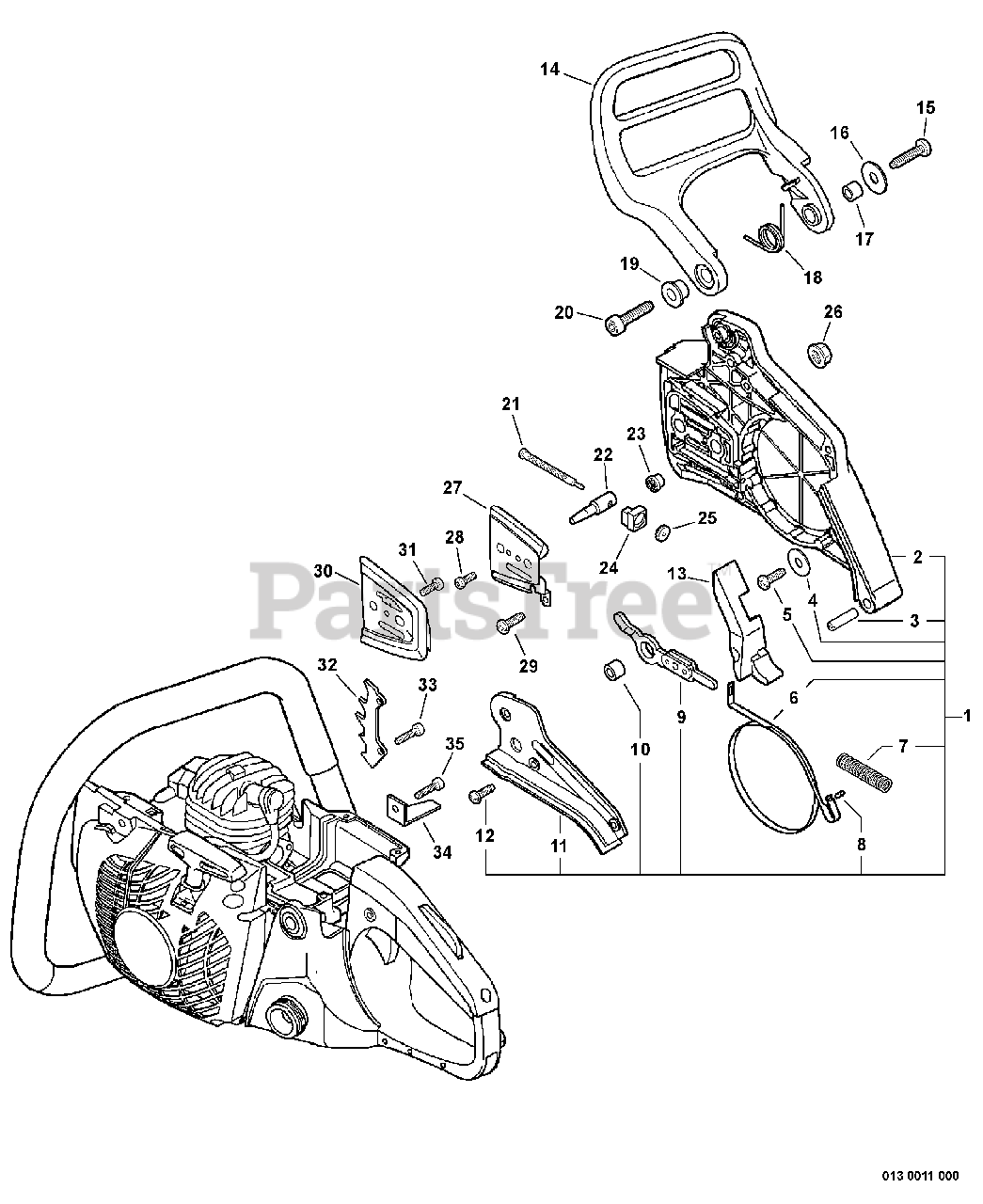

Chain Brake Parts Diagram

  • Title

1

Echo C032000323

CHAIN BRAKE ASSY - ORANGE

Note: Includes ITEMS 2-12

$95.99

$

In Stock, Qty 10

0

2

Echo C300000352

GUARD, SPROCKET
(Superseded to C300000353)

$29.99

$

In Stock, Qty 5

0

3

Echo 90034260025

PIN - SPRING

$1.49

$

Usually ships in 2-4 days

0

4

Echo 35124906960

WASHER

$0.99

$

In Stock, Qty 15

0

5

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

6

Echo C328000110

BAND, BRAKE

$7.99

$

In Stock, only 3 left!

0

7

Echo V450000070

SPRING

$2.49

$

In Stock, Qty 15

0

8

Echo 90033030120

PIN - 3X12

$0.99

$

In Stock, Qty 12

0

9

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, Qty 7

0

10

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 11

0

11

Echo C345000241

COVER, BRAKE

$3.99

$

Usually ships in 2-4 days

0

12

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

13

Echo C302000000

CUSHION

$5.49

$

Usually ships in 2-4 days

0

14

Echo C320000141

LEVER, BRAKE

$16.99

$

In Stock, only 4 left!

0

15

Echo V202000120

SCREW - 4X14

$0.99

$

In Stock, Qty 7

0

16

Echo 17721403930

WASHER

$0.99

$

In Stock, Qty 13

0

17

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 11

0

18

Echo V452001281

SPRING

$2.49

$

In Stock, Qty 5

0

19

Echo V356000300

COLLAR - 10

$1.99

$

In Stock, Qty 20+

0

20

Echo 90010505030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

21

Echo V203000110

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

22

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

23

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

24

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

25

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

26

Echo V265000200

NUT - 8 -- FLANGE

$1.99

$

In Stock, Qty 20+

0

27

Echo C305000001

PLATE, GUIDE - OUTER

$6.99

$

In Stock, Qty 17

0

28

Echo 9132503005

SCREW - 3X5

$0.99

$

In Stock, Qty 20+

0

29

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

30

Echo 43301335432

PLATE, GUIDE - INNER

$5.99

$

In Stock, Qty 13

0

31

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 12

0

32

Echo C304000030

SPIKE

$7.99

$

Usually ships in 2-4 days

0

33

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

34

Echo C310000000

CATCHER, CHAIN

$1.99

$

In Stock, Qty 7

0

35

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0
