CS-451 VL - Echo Chainsaw Carburetor Parts Diagram

Chainsaw

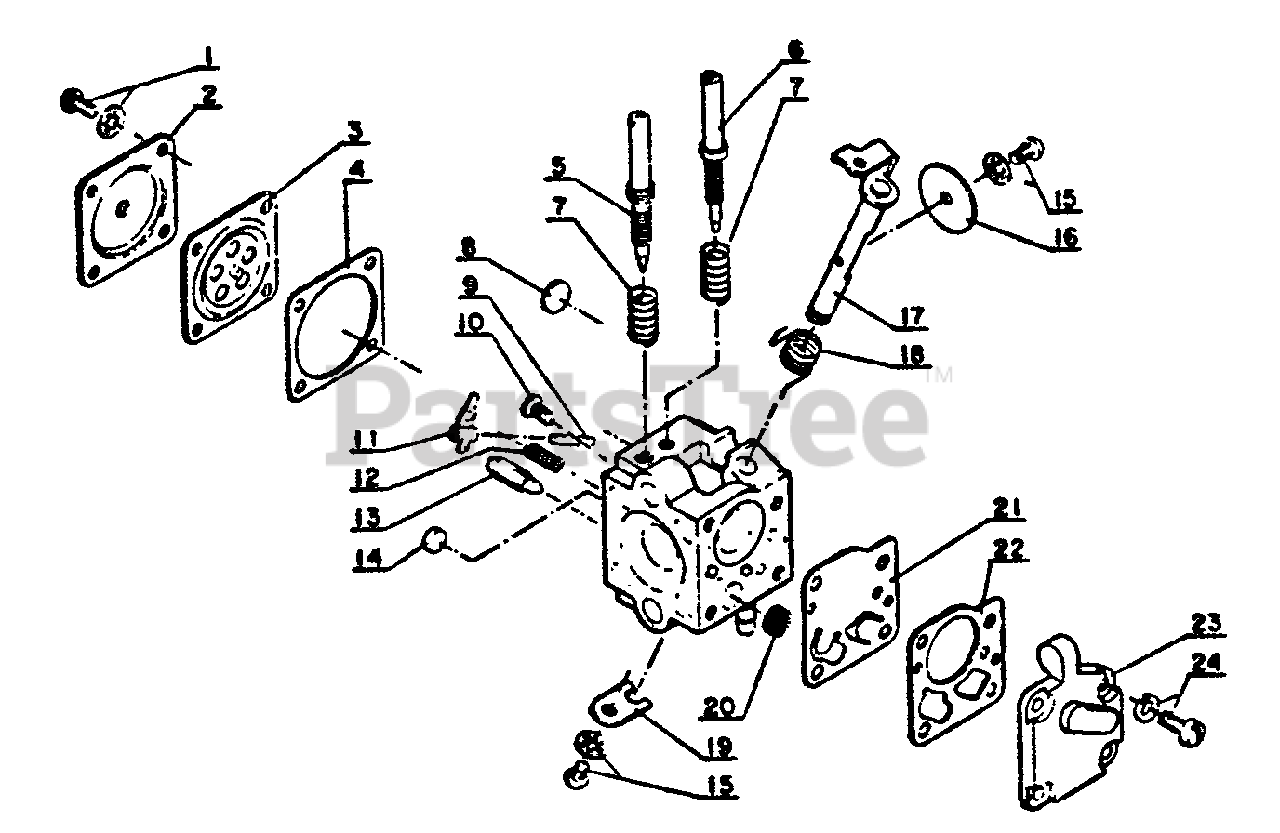

Carburetor Parts Diagram

  • Title

Echo 12200010130

CARBURETOR
(Superseded to 12300010130)

$80.99

$

Usually ships in 2-4 days

0

1

Echo 12214400230

SCREW
(Superseded to Discontinued)

$

$

Not available

2

Echo 12214200830

COVER, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

4

Echo 12214000830

GASKET, DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

3

Echo 12214100830

DIAPHRAGM
(Superseded to Discontinued)

$

$

Not available

5

Echo 12212003430

SCREW, MAIN ADJUST
(Superseded to Discontinued)

$

$

Not available

6

Echo 12211803430

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

7

Echo 12211900230

SCREW, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

8

Echo 12214500830

PLUG, WELCH - LARGE
(Superseded to Discontinued)

$

$

Not available

9

Echo 12213800830

PIN, METERING LEVER
(Superseded to Discontinued)

$

$

Not available

10

Echo 12213900230

SCREW, METERING LEVER PIN
(Superseded to Discontinued)

$

$

Not available

11

Echo 12212300830

LEVER, METERING
(Superseded to 12212303230)

$

$

Not available

12

Echo 12212203430

SPRING, METERING LEVER
(Superseded to 12212203930)

$

$

Not available

13

Echo 12213700830

VALVE, INLET NEEDLE
(Superseded to 12213700230)

$

$

Not available

14

Echo 12214600830

PLUG, WELCH - SMALL
(Superseded to Discontinued)

$

$

Not available

15

Echo 12211400230

SCREW
(Superseded to 12211400231)

$

$

Not available

16

Echo 12211600830

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 12211703430

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 12211303430

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

19

Echo 12212700230

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

20

Echo 12212600230

STRAINER
(Superseded to Discontinued)

$

$

Not available

21

Echo 12211200830

DIAPHRAGM, PUMP
(Superseded to Discontinued)

$

$

Not available

22

Echo 12212500830

GASKET, PUMP
(Superseded to Discontinued)

$

$

Not available

23

Echo 12212403430

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

24

Echo 12211000830

SCREW
(Superseded to Discontinued)

$

$

Not available
