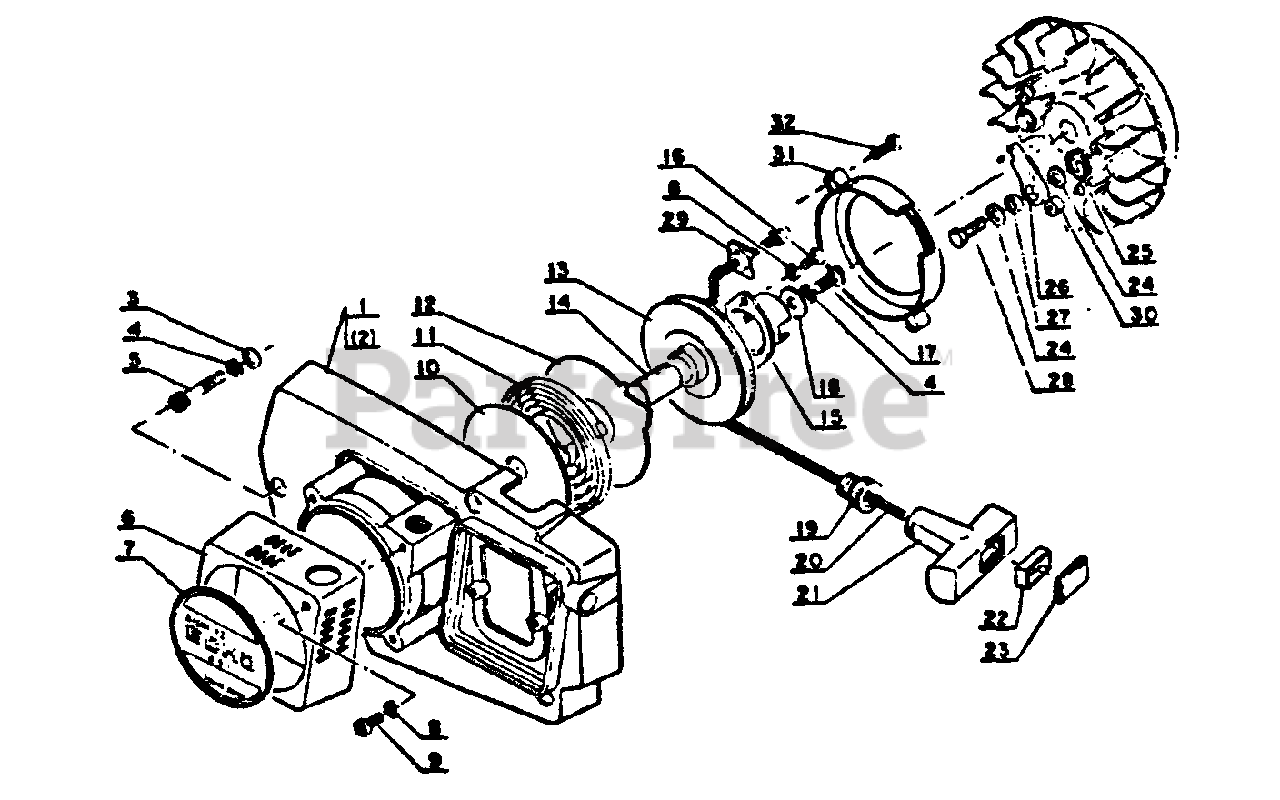

CS-451 VL - Echo Chainsaw Starter Parts Diagram

Chainsaw

Starter Parts Diagram

  • Title

Echo 17720003431

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 10150703431

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

2

------------------

UNKNOWN

$

$

Not available

6

Echo 10061603431

FILTER, DEBRIS
(Superseded to 10061603430)

$

$

Not available

8

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

9

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

10

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 12

0

11

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 17

0

12

Echo 17724203430

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

13

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

14

Echo 17721602832

BUSHING

$1.99

$

In Stock, only 3 left!

0

15

Echo 17724302832

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

16

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

17

Echo 17723602830

BOLT - 5X12
(Superseded to 90010505012)

$1.49

$

In Stock, Qty 20+

0

18

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 10

0

19

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

20

Echo 17722607060

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$10.99

$

In Stock, Qty 13

0

21

Echo 17722802830

GRIP, STARTER
(Superseded to 17722812330)

$25.99

$

In Stock, Qty 15

0

22

Echo 17722902830

RING, RETAINING

$1.99

$

Usually ships in 2-4 days

0

23

Echo 17724402830

CAP

$0.99

$

Usually ships in 2-4 days

0

29

Echo 17724602832

RETAINER, ROPE

$0.99

$

Usually ships in 2-4 days

0

3

Echo 10024702830

WASHER - 5
(Superseded to Discontinued)

$

$

Not available

4

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

5

Echo 35121800830

BOLT - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

7

Echo 89001203431

NAME PLATE
(Superseded to Discontinued)

$

$

Not available

24

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 17723402831

SPRING, RETURN

$2.49

$

In Stock, only 1 left!

0

26

Echo 17721802830

PAWL, STARTER

$5.99

$

In Stock, only 3 left!

0

27

Echo 17721703430

SPACER

$1.99

$

Usually ships in 2-4 days

0

28

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 11

0

30

Echo 17724502830

CAP

$0.99

$

In Stock, Qty 6

0

31

Echo 17724103430

COVER, DUST
(Superseded to Discontinued)

$

$

Not available

32

Echo 90022004016

SCREW - 4X16

$0.99

$

Usually ships in 2-4 days

0
