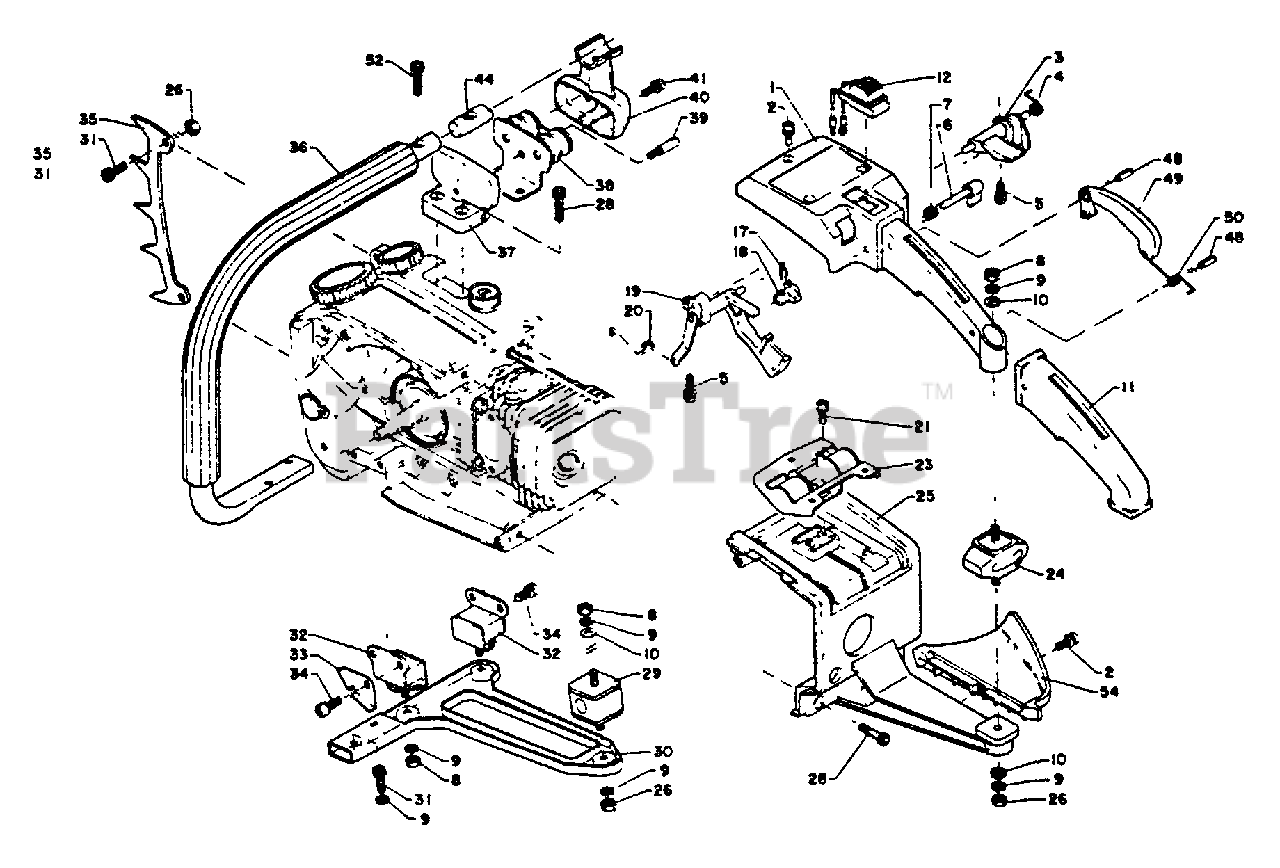

CS-452 VL - Echo Chainsaw Handles S/N: 000000 - 0230441 Parts Diagram

Chainsaw

Handles S/N: 000000 - 0230441 Parts Diagram

  • Title

1

Echo 35111011030

HANDLE - RIGHT
(Superseded to Discontinued)

$

$

Not available

2

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

3

Echo 70700503430

Push lever, oil pump
(Superseded to Discontinued)

$

$

Not available

4

Echo 70701703430

SPRING

$2.49

$

In Stock, only 4 left!

0

5

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

6

Echo 17800803430

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 17801303430

SPRING, LOCKOUT LEVER

$1.49

$

Usually ships in 2-4 days

0

8

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

10

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 35111111030

COVER, HANDLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 16340012330

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

17

Echo 17804510630

PIN - LOCKING

$1.49

$

In Stock, Qty 5

0

18

Echo 17801211030

LOCKOUT, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

19

Echo 17800511030

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 17801103430

ROD, THROTTLE
(Superseded to 17801110130)

$

$

Not available

21

Echo 90024105012

SCREW - 5X12

$0.99

$

In Stock, only 1 left!

0

22

Echo 16201003431

LEAD - GROUND

$2.99

$

Usually ships in 2-4 days

0

23

Echo 35110510130

CUSHION

$17.99

$

Usually ships in 2-4 days

0

24

Echo 35110703430

CUSHION
(Superseded to Discontinued)

$

$

Not available

25

Echo 10151410130

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

26

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.49

$

In Stock, only 3 left!

0

28

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

29

Echo 35160903430

Cushion rubber (L-L: 2)
(Superseded to Discontinued)

$

$

Not available

30

Echo 35161303431

BRACKET, HANDLE - LOWER
(Superseded to Discontinued)

$

$

Not available

31

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

32

Echo 35160703430

Cushion rubber (L-L)
(Superseded to Discontinued)

$

$

Not available

33

Echo 10027610130

PLATE

$1.99

$

Usually ships in 2-4 days

0

34

Echo 90024105012

SCREW - 5X12

$0.99

$

In Stock, only 1 left!

0

35

Echo 88021003430

SPIKE
(Superseded to 88020003430)

$

$

Not available

36

Echo 35160610131

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

37

Echo 35163110130

Cushion rubber holder
(Superseded to Discontinued)

$

$

Not available

38

Echo 35160510130

Cushion (L-U)
(Superseded to Discontinued)

$

$

Not available

39

Echo 35163710130

STOPPER

$1.99

$

Usually ships in 2-4 days

0

40

Echo 35161410130

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

41

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

44

Echo 3516171053

SPACER

$

$

Currently unavailable

48

Echo 90034040013

PIN - SPRING -- 4X13

$0.99

$

In Stock, Qty 9

0

49

Echo 17809011031

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

50

Echo 17809110531

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, only 1 left!

0

52

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

54

Echo 35113310130

GUARD, HAND
(Superseded to Discontinued)

$

$

Not available
